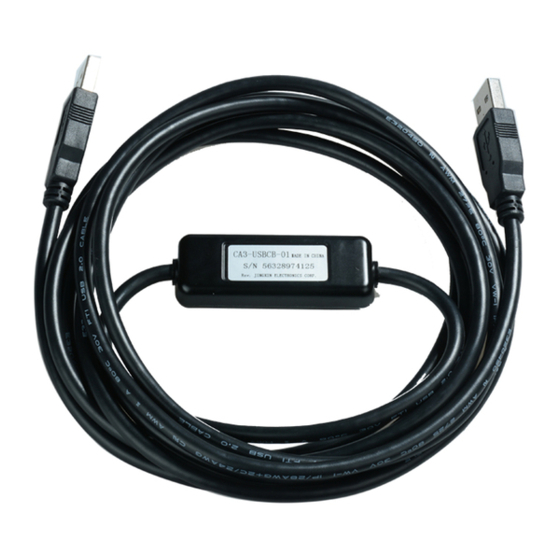

USB Data Transfer Cable
The USB Data Transfer Cable is for downloading screen data created with Screen
Editor & Logic Program software to the display unit via USB.
• A global code is assigned to every Pro-face product as a universal model
number.
For more information on product models and their matching global
codes, please refer to the following URL.
http://www.pro-face.com/product/globalcode.html
This guide contains a variety of safety markings related to the safe and correct opera-
tion of the USB Data Transfer Cable. Be sure to read this guide and any related manu-
als carefully to fully understand how to correctly use this cable.
Safety Symbol
This guide uses the following safety-related symbol. Please pay attention to this sym-
bol and follow the instructions given.
• Do not disassemble or remodel this cable in any way. Doing so may cause an electric
shock or fire.
• Do not use this cable in areas where flammable gases are present. Doing so may cause
an explosion.
CA3-USBCB-01
Installation Guide
Safety Precautions
Indicates situations that may result in major machine dam-
age, severe bodily injury, or death if the instructions are not
followed.
1
Advertisement
Table of Contents
Summary of Contents for Digital Electronics Corporation CA3-USBCB-01
- Page 1 USB Data Transfer Cable CA3-USBCB-01 Installation Guide The USB Data Transfer Cable is for downloading screen data created with Screen Editor & Logic Program software to the display unit via USB. • A global code is assigned to every Pro-face product as a universal model number.
- Page 2 Package Contents USB Data Transfer Cable (1) Installation Guide (CA3-USBCB-01) (This Guide) This unit has been carefully packed, with special attention to quality. However, if for any reason you find any of the contents of this package damaged or missing, please contact your local Pro-face representative immediately.
- Page 3 • The USB Data Transfer Cable's driver is contained on the CD-ROM or DVD-ROM of your Screen Editor & Logic Program Software. For driver installations, please refer to this Screen Editor & Logic Program Software's manuals. • The USB Data Transfer Cable (CA3-USBCB-01) is NOT compatible with GP-PRO/PBIII C-Package Specifications General I/F Type USB (Specification Rev1.1)
- Page 4 Also, this cable's connectors are exactly the same. Connecting either connector to either unit will not cause any problems. Display CA3-USBCB-01 • When connecting the USB Data Transfer Cable to your PC or to the Display, be sure to insert the cable's connector at the correct angle.
- Page 5 All Company/Manufacturer names used in this installation guide are the registered trademarks of those companies. Notice Be aware that the Digital Electronics Corporation shall not be held liable for any real or estimated damages or losses, or third party claims resulting from the use of this product.
