Summary of Contents for Steca PL2085

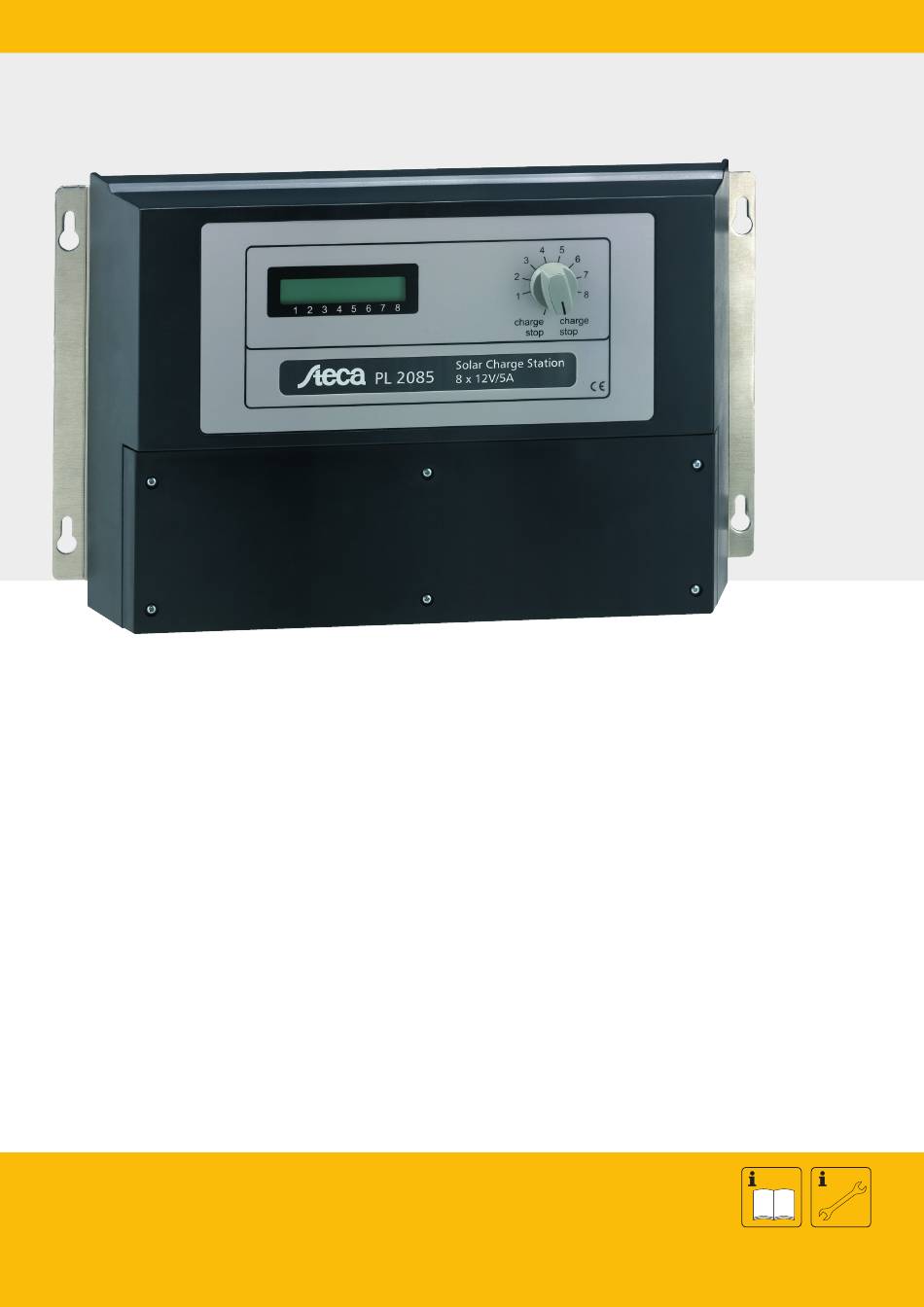

- Page 1 PHOTOVOLTAIK - PHOTOVOLTAIC - PHOTOVOLTAIQUE - FOTOVOLTAICA User´s and Installer´s Manual Charging Station for Photovoltaic Systems PL2085 704.937 | 07.50...
-
Page 2: Table Of Contents
4 1.2 Description of second line of display ................................... 10 Sequence of operation................................11 Maintenance....................................... 12 Technical data at 20°C ..................................12 Malfunctions and fault finding ................................. 12 Legal Guarantee ....................................13 Operating instructions PL2085 charging station Page 2 10.12.2007... -
Page 3: Safety Instructions And Liability Exclusion
Where the equipment is installed abroad information must be obtained from the relevant institutions or authorities concerning regulations and safety control. Keep children away from the control electronics and the battery area! Operating instructions PL2085 charging station Page 3 10.12.2007... -
Page 4: Liability Exclusion
The uncontrolled gassing is worse still with closed batteries (e.g. gel and flow batteries) where the resulting gas pressure can destroy the battery housing. Frequent overcharging damages the battery storage capacity. Operating instructions PL2085 charging station Page 4 10.12.2007... -
Page 5: Cut-Off Voltage Temperature Tracking
90 % charge(I) float charge (U) equal charge(U) empty charge voltage 14,7 V 14,3 V 13,8 V charge current start time Operating instructions PL2085 charging station Page 5 10.12.2007... -
Page 6: Charging A Previously Damaged Battery
This is essential when changing over batteries. Between both Channel 1 and Charge stop, and between Channel 8 and Charge stop there is an empty switch setting. Operating instructions PL2085 charging station Page 6... -
Page 7: Display
The rear wall of the control unit (heat dissipator) heats up during operation due to dissipated energy. The place of installation should therefore be able to withstand a temperature of 85ºC Operating instructions PL2085 charging station Page 7 10.12.2007... -
Page 8: Wall Mounting
• Cut into sections • Strip both ends and if necessary press on end sleeves or fit suitable pole shoes or holders for the batteries. Operating instructions PL2085 charging station Page 8 10.12.2007... -
Page 9: Connecting The Cables To The Charging Station
However some double errors can lead to destruction of the control unit and components connected to it (batteries, modules): • reversed poles module at a battery output • an incorrect source (mains supply with 230V) at the solar input Operating instructions PL2085 charging station Page 9 10.12.2007... -
Page 10: Charging Station Operation
The battery has been connected with the poles reversed. The display shows + and – alternately in front of the battery symbol concerned. Operating instructions PL2085 charging station Page 10 10.12.2007... -
Page 11: Sequence Of Operation
The customer only pays for the ampere-hours charged regardless of the state of the battery, e.g. in €/Ah or $/Ah, etc. Block schematic diagram for parallel connection: Channel 1 Channel 2 Battery Operating instructions PL2085 charging station Page 11 10.12.2007... -
Page 12: Maintenance
A sulphated battery was connected this battery is old or was deep with details of Ah already charged discharged • see Chapter 2.2.3.2; Page 6) the owner of the battery should take precautions against deep discharge. Operating instructions PL2085 charging station Page 12 10.12.2007... -
Page 13: Legal Guarantee
Any further claims against the seller based on this legal guarantee obligation, in particular claims for damages due to lost profit, loss-of-use or indirect damages are excluded, unless liability is obligatory by German law. Operating instructions PL2085 charging station Page 13... - Page 14 704937...
