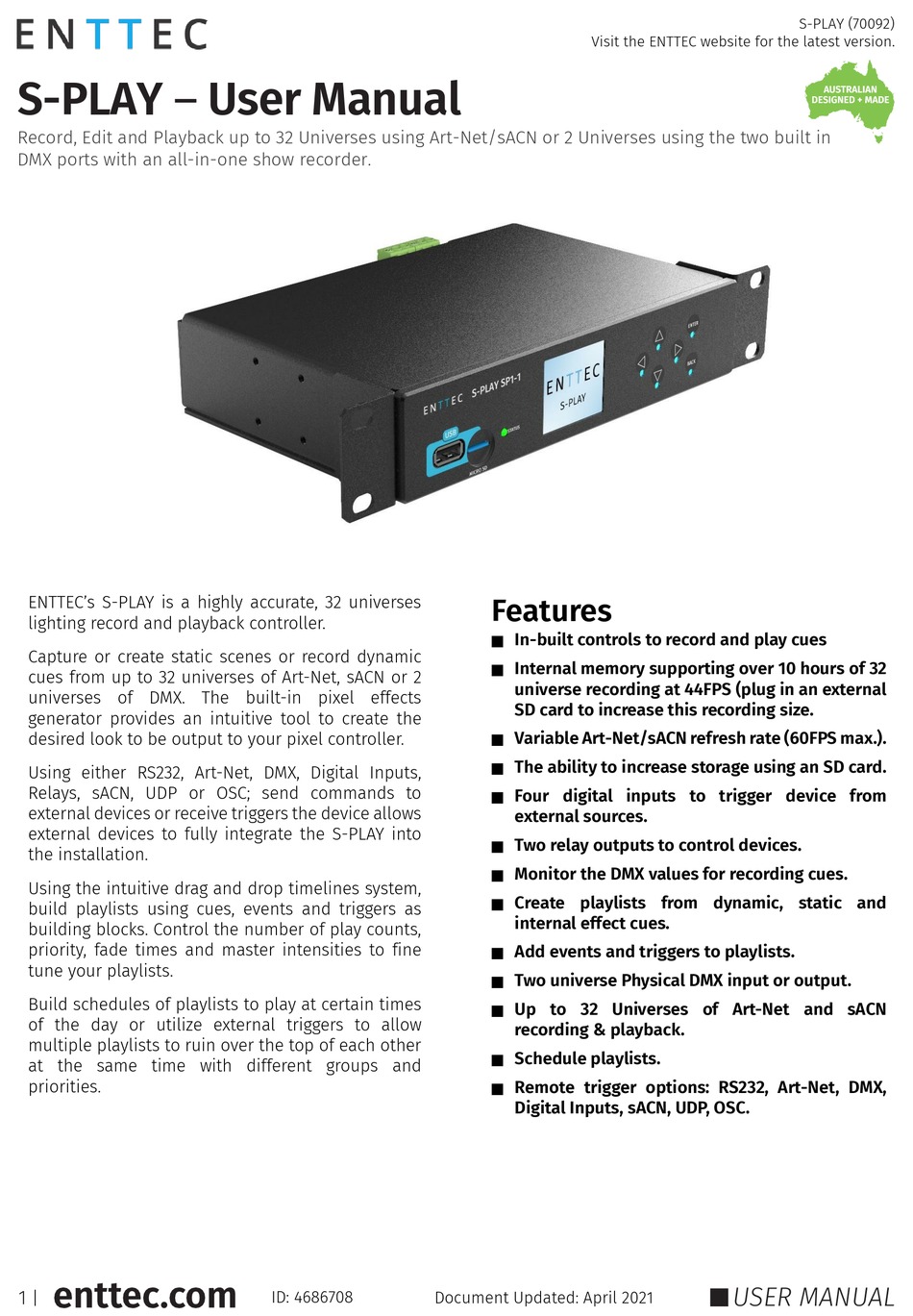

S-PLAY – User Manual
Record, Edit and Playback up to 32 Universes using Art-Net/sACN or 2 Universes using the two built in
DMX ports with an all-in-one show recorder.
ENTTEC's S-PLAY is a highly accurate, 32 universes
lighting record and playback controller.
Capture or create static scenes or record dynamic
cues from up to 32 universes of Art-Net, sACN or 2
universes of DMX. The built-in pixel effects
generator provides an intuitive tool to create the
desired look to be output to your pixel controller.
Using either RS232, Art-Net, DMX, Digital Inputs,
Relays, sACN, UDP or OSC; send commands to
external devices or receive triggers the device allows
external devices to fully integrate the S-PLAY into
the installation.
Using the intuitive drag and drop timelines system,
build playlists using cues, events and triggers as
building blocks. Control the number of play counts,
priority, fade times and master intensities to fine
tune your playlists.
Build schedules of playlists to play at certain times
of the day or utilize external triggers to allow
multiple playlists to ruin over the top of each other
at the same time with different groups and
priorities.
1
|
ID: 4686708
Document Updated: April 2021
Visit the ENTTEC website for the latest version.
Features
In-built controls to record and play cues
Internal memory supporting over 10 hours of 32
universe recording at 44FPS (plug in an external
SD card to increase this recording size.
Variable Art-Net/sACN refresh rate (60FPS max.).
The ability to increase storage using an SD card.
Four digital inputs to trigger device from
external sources.
Two relay outputs to control devices.
Monitor the DMX values for recording cues.
Create playlists from dynamic, static and
internal effect cues.
Add events and triggers to playlists.
Two universe Physical DMX input or output.
Up to 32 Universes of Art-Net and sACN
recording & playback.
Schedule playlists.
Remote trigger options: RS232, Art-Net, DMX,
Digital Inputs, sACN, UDP, OSC.
S-PLAY (70092)
USER MANUAL
..

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S-PLAY and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Enttec S-PLAY

Summary of Contents for Enttec S-PLAY

  • Page 1 S-PLAY – User Manual Record, Edit and Playback up to 32 Universes using Art-Net/sACN or 2 Universes using the two built in DMX ports with an all-in-one show recorder. ENTTEC’s S-PLAY is a highly accurate, 32 universes Features lighting record and playback controller.

  • Page 2: Table Of Contents

    Out of the Box ..............................................17 Network Discovery ............................................17 View the S-PLAYs LCD ..........................................17 Finding an S-PLAY’s IP Address from NMU ................................... 18 Changing the Network Settings ......................................18 Changing the Network Settings Using LCD Interface ............................18 Change IP Using the Web Interface ....................................
  • Page 3 S-PLAY (70092) Visit the ENTTEC website for the latest version. Dynamic Recording Control ....................................... 23 Effects ................................................24 Preview Cue .............................................24 Editing a Cue, Effect or Dynamic Recording ................................24 Events ................................................25 RS232 ................................................25 UDP ................................................25 OSC ................................................26 Relay ................................................26 Art-Net ..............................................
  • Page 4 S-PLAY (70092) Visit the ENTTEC website for the latest version. Configure Remote Access Using SSH Tunnelling - (Advanced Feature) ....................45 Select Storage ............................................46 Factory Reset ............................................46 Factory Reset Via LCD ........................................47 Factory Reset Via Web Interface ..................................... 47 Status ................................................

  • Page 5: Safety
