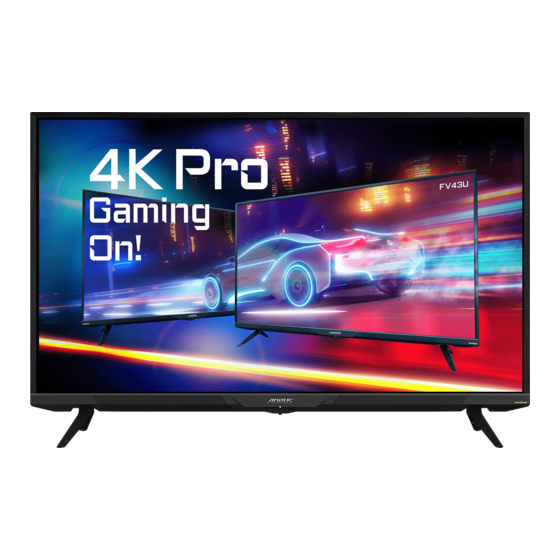

AORUS GIGABYTE FV43U User Manual

Tactical gaming monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

TACTICAL
GAMING MONITOR
USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GIGABYTE FV43U and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AORUS GIGABYTE FV43U

Summary of Contents for AORUS GIGABYTE FV43U

  • Page 1 TACTICAL GAMING MONITOR USER GUIDE...
  • Page 2 LCD Monitor User’s Manual Copyright © 2021 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved. The trademarks mentioned in this manual are legally registered to their respective owners. Disclaimer Information in this manual is protected by copyright laws and is the property of GIGABYTE.

  • Page 3: Safety Information

    Supplier’s Declaration of Conformity 47 CFR § 2.1077 Compliance Information Product Name: LCD monitor Trade Name: GIGABYTE Model Number: AORUS FV43U Responsible Party – U.S. Contact Information: G.B.T. Inc. Address: 17358 Railroad street, City Of Industry, CA91748 Tel.: 1-626-854-9338 Internet contact information: https://www.gigabyte.com...
  • Page 4 LCD Monitor User’s Manual • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Canadian Department of Communications Statement This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.
  • Page 5 LCD Monitor User’s Manual WEEE Symbol Statement The symbol shown below is on the product or on its packaging, which indicates that this product must not be disposed of with other waste. Instead, the device should be taken to the waste collection centers for activation of the treatment, collection, recycling and disposal procedure.
  • Page 6 LCD Monitor User’s Manual CE declaração de conformidade Este produto com a marcação CE estão em conformidade com das seguintes Diretivas UE: Diretiva Baixa Tensão 2014/35/EU; Diretiva CEM 2014/30/EU; Diretiva Conceção Ecológica 2009/125/CE; Diretiva RSP 2011/65/UE e a declaração 2015/863. A conformidade com estas diretivas é...
  • Page 7 LCD Monitor User’s Manual EK megfelelőségi nyilatkozata A termék megfelelnek az alábbi irányelvek és szabványok követelményeinek, azok a kiállításidőpontjában érvényes, aktuális változatában: EMC irányelv 2014/30/EU, Kisfeszültségű villamos berendezésekre vonatkozó irányelv2014/35/EU, Környezetbarát tervezésről szóló irányelv 2009/125/EK, RoHS irányelv 2011/65/EU és 2015/863. Δήλωση...
  • Page 8 LCD Monitor User’s Manual China RoHS Compliance Statement 中国《废弃电器电子产品回收处理管理条例》提示性说明 为了更好地关爱及保护地球，当用户不再需要此产品或产品寿命终止时， 请遵守国家废弃电器电子产品回收处理相关法律法规，将其交给当地具有 国家认可的回收处理资质的厂商进行回收处理。 环保使用期限 Environment-friendly Use Period 此标识指期限（十年），电子电气产品中含有的有害物质不会 发生外泄或突变、电子电气产品用户正常使用该电子电气产品 不会对环境造成严重 污染或对其人身、财产造成严重损害的 期限。 - 8 -...
  • Page 9 LCD Monitor User’s Manual Declaration of the Presence Condition of the Restricted Substances Marking AORUS FV43U Equipment name Type designa on (Type) Restricted substances and its chemical symbols Unit Hexavalent Polybrominated Polybrominated Lead Mercury Cadmium chromium biphenyls diphenyls ethers (Pb)

  • Page 10: Safety Precautions

    LCD Monitor User’s Manual Safety Precautions Read through the following Safety Precautions before using the monitor. • Only use the accessories that are provided with the monitor or that which are recommended by the manufacturer. • Keep the plastic packaging bag for the product in a place that cannot be reached by children.

  • Page 11: Table Of Contents

    LCD Monitor User’s Manual CONTENTS Safety Information ........................3 Regulatory Notices ......................3 Safety Precautions ......................10 Introduction ..........................12 Unpacking ........................12 Package Contents ......................15 Product Overview ......................16 Getting Started......................... 19 Installing the Monitor Base ..................19 Inserting the Batteries into the Remote Control ..........20 Installing a Wall-Mount Bracket (Optional) ............

  • Page 12: Introduction

    LCD Monitor User’s Manual INTRODUCTION Unpacking Open the top cover of the upper box. Remove the items from the upper EPS foam. - 12 -...
  • Page 13 LCD Monitor User’s Manual Remove the locks securing the upper box to the lower box. Firmly hold both sides of the upper box and lift to remove it from the lower box. - 13 -...
  • Page 14 LCD Monitor User’s Manual Remove the upper and sides EPS foams. Carefully remove the monitor from the lower box. Note: We highly recommended to use at least two people to move the monitor. - 14 -...

  • Page 15: Package Contents

    Monitor Bases (x2) Remote Control Power Cable HDMI Cable USB Cable Multilingual Installation Guide AORUS FV43U DP Cable Quick Start Guide Warranty Card Note: Please keep the packaging box and packing materials for future transportation of the monitor. - 15 -...

  • Page 16: Product Overview

    LCD Monitor User’s Manual Product Overview Front View Power LED Control button - 16 -...
  • Page 17 LCD Monitor User’s Manual Rear View HDMI -1 HDMI-2 DP TYPE-C USB 3.0 Line-Out port USB upstream port Headphone jack USB 3.0 ports (x2) HDMI ports (x2) AC IN jack DisplayPort Kensington lock USB Type-C port Note: HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
  • Page 18 LCD Monitor User’s Manual Remote Control Power button Picture Mode button Input button Mute button Enter button Audio Mode button Navigation buttons Volume Up button (up/down/left/right) Volume Down button - 18 -...

  • Page 19: Getting Started

    LCD Monitor User’s Manual GETTING STARTED Installing the Monitor Base Place the monitor on a table, with the screen facing down. Note: We recommend that you cover the table surface with soft cloth to prevent damage to the monitor. Align and install the monitor bases into the mounting slots on the bottom of the monitor.

  • Page 20: Inserting The Batteries Into The Remote Control

    LCD Monitor User’s Manual Inserting the Batteries into the Remote Control Open the battery cover. Insert two AAA batteries into the battery compartment. Ensure that the batteries are inserted with the correct polarity. Replace the battery cover. - 20 -...

  • Page 21: Installing A Wall-Mount Bracket (Optional)

    LCD Monitor User’s Manual Installing a Wall-Mount Bracket (Optional) Use only the 200 x 200 mm wall mount kit recommended by the manufacturer. Place the monitor on a table, with the screen facing down. Note: We recommend that you cover the table surface with soft cloth to prevent damage to the monitor.
  • Page 22 LCD Monitor User’s Manual Attach the mounting bracket to the mounting holes at the rear of the monitor. Then use the screws to secure the bracket in place. 200 mm 200 mm Note: To mount the monitor on the wall, refer to the installation guide that is included in the wall-mount bracket kit.

  • Page 23: Making Connections

    LCD Monitor User’s Manual Making Connections HDMI -1 HDMI-2 TYPE-C USB 3.0 Power outlet Keyboard Mouse & USB disk drive Computer Headphone Speaker Audio cable USB Type-C cable Headphone cable USB (A-Male to B-Male) cable HDMI cable USB cable DisplayPort cable Power cable - 23 -...

  • Page 24: Using The Device

    LCD Monitor User’s Manual USING THE DEVICE Turning the Power On/Off Power On Connect one end of the power cable to the AC IN jack at the rear of the monitor. Connect other end of the the power cable to a power outlet. Control Press the button to turn on the monitor.

  • Page 25: User Comfort Recommendations

    LCD Monitor User’s Manual User Comfort Recommendations The following are some tips for comfortable viewing of your monitor: • Optimal viewing distances for monitors range from approximately 510 mm to 760 mm (20 in to 30 in). • A general guideline is to position the monitor such that the top of the screen is at or slightly below your eye-height when you are comfortably seated.

  • Page 26: Selecting The Input Source

    LCD Monitor User’s Manual Selecting the Input Source Control Move the button right ) to enter the Input menu. Input Control Move the button up/ down ( ) to select the desired HDMI 1 input source. Then press the HDMI2 Control button to confirm.

  • Page 27: Operations

    LCD Monitor User’s Manual OPERATIONS Control Note: You can either use the button or the Navigation/Enter buttons on the remote control to navigate through the menu and make adjustments. Quick Menu Hot Key Control By default, the button has been assigned with the specific function.
  • Page 28 LCD Monitor User’s Manual Control ) to enter the Picture Mode • Move the button down ( menu. Control Move the button up/down ( ) to select the Picture Mode desired option and press the Control button to confirm. Standard Note: You can also press the VS mode button on the remote control to...
  • Page 29 LCD Monitor User’s Manual Function Key Guide Control button to display the Main menu. Press the Settings SETTING Dashboard Game Assist DASHBOARD EXIT GAME ASSIST Exit Power Off POWER OFF Control Then use the button to select the desired function and configure the related settings.
  • Page 30 GPU Temperature GPU Frequency GPU Fan Speed GPU Usage Rate AORUS Mouse DPI Note: Make sure the USB cable is properly connected to the USB upstream port of the monitor and the USB port of your computer. Game Assist When the Main menu appears on the screen, move the...
  • Page 31 LCD Monitor User’s Manual • AORUS Info: Configure the FPS (First Person Shooting) game related settings. √ Select Gaming Timer to select countdown timer mode. To disable this function, set the setting to OFF. √ Select Gaming Counter or Refresh Rate to enable/disable the gaming counter or real-time refresh rate setting.

  • Page 32: Configure The Device Settings

    Picture Mode Standard r Sync LCD Monitor User’s Manual Configure the Device Settings tion When the Main menu appears on the screen, move the Control button ) to enter the Settings menu. up ( Exit Move/Adjust Enter/Confirm Button Guide Gaming Configure the game related settings.
  • Page 33 LCD Monitor User’s Manual Item Description Super Sharpen the low resolution images. Resolution Display Mode Select the aspect ratio of the screen. • Full: Scale the input image to fill the screen. Ideal for 16:9 aspect images. • Aspect: Display the input image without geometric distortion filling as much of the screen as possible.
  • Page 34 LCD Monitor User’s Manual Picture Configure the image related settings. Brightness Contrast Sharpness Gamma Color Temp. Normal Picture Mode Standard Gaming Standard Brightness Picture VS mode Contrast Display Advance Contrast PIP/PBP RTS/RPG Color System Color Vibrance Movie Save Settings Reader Sharpness Reset all sRGB...
  • Page 35 LCD Monitor User’s Manual Item Description Color An advanced color adjustment that user can individually customize hue and saturation for each axis color. Color Vibrance Adjust the intensity of the more muted colors. Sharpness Adjust the sharpness of the image. Gamma Adjust the middle level of luminance.
  • Page 36 LCD Monitor User’s Manual Note: The following picture modes will be shown only when HDR function is activated. Brightness Contrast Sharpness Gamma Color Temp. Normal Picture Mode Standard Gaming HDR 1000 Brightness Picture HDR_Game Contrast Display HDR_Movie Light Enhance PIP/PBP HDR_HLG Color Enhance System...
  • Page 37 LCD Monitor User’s Manual Item Description Configure the KVM related settings. • KVM Switch: Switch the input source that has been assigned to USB-B or Type-C connection in the KVM Wizard settings. • KVM Wizard: Set the input source to be bound with USB Type-B connection and USB Type-C Brightness Contrast...
  • Page 38 LCD Monitor User’s Manual PIP/PBP Configure the multi-picture related settings. Brightness Contrast Sharpness Gamma Color Temp. Normal Picture Mode Standard Gaming Picture Display PIP/PBP System Save Settings Reset all Exit Move/Adjust Enter/Confirm Item Description Disable the PIP/PBP function. Split the screen into 2 parts (main window and inset window).
  • Page 39 LCD Monitor User’s Manual System Configure the system related settings. Brightness Contrast Sharpness Gamma Color Temp. Normal Picture Mode Standard Gaming Language English Picture RGB LED Display Audio PIP/PBP Audio Mode Deutsch System Français OSD Settings Save Settings Quick Switch Reset all Other Settings Exit...
  • Page 40 LCD Monitor User’s Manual Item Description OSD Settings • OSD Lock: When this function is enabled, no OSD adjustment is allowed. (continue) Note: To disable the OSD lock function, press the Control key. When the message appears on the screen, select Yes to confirm.
  • Page 41 LCD Monitor User’s Manual Item Description Other Settings • LED Indicator: By default, the LED indicator is set to Always ON. (continue) D Always ON: The Power LED lights white during operation and lights orange in standby mode. D Always OFF: Turn off the Power LED. D Standby ON: The Power LED lights orange in standby mode.
  • Page 42 LCD Monitor User’s Manual Save Settings Set the personalized OSD configurations for Setting1, Setting2, or Setting3. Brightness Contrast Sharpness Gamma Color Temp. Normal Picture Mode Standard Gaming Setting1 Save Picture Setting2 Load Display Setting3 PIP/PBP System Save Settings Reset all Exit Move/Adjust Enter/Confirm...

  • Page 43: Appendices

    LCD Monitor User’s Manual APPENDICES Specifications Item Specifications Panel Size 43-inch Aspect Ratio 16:9 Resolution 3840 x 2160 LED Life 30000 hours Pixel Pitch 0.2451(H) x 0.2451(V) Brightness 750 nits (typ.) Contrast Ratio 4000:1 Dynamic Contrast 12M:1 Ratio Color Depth 1.07B Active Display area 941.18(H) x 529.42(V) Viewing Angle...

  • Page 44: Supported Timing List

    LCD Monitor User’s Manual Item Specifications Temperature Range 0°C to 40°C (operation) Note: Specifications subject to change without notice. Supported Timing List Timing List HDMI DisplayPort/ USB Type-C 640x480@60Hz √ √ 640x480@75Hz √ √ 720x480@60Hz √ √ 720x576P@50Hz √ √ 800x600@60Hz √...

  • Page 45: Troubleshooting

    LCD Monitor User’s Manual Troubleshooting Problem Possible Solution(s) No power • Make sure the power cable is properly connected to the power source and the monitor. • Check the cable and plug to make sure they are not broken. • Make sure the monitor is turned on. No image appears • Make sure the monitor and the computer on the screen...

  • Page 46: Basic Care

    LCD Monitor User’s Manual Basic Care When the screen becomes dirty, do the following to clean the screen: • Wipe the screen with your soft, lint-free cloth to remove any residual dust. • Spray or apply the cleaning fluid onto a soft cloth. Then wipe the screen gently with the damp cloth.
