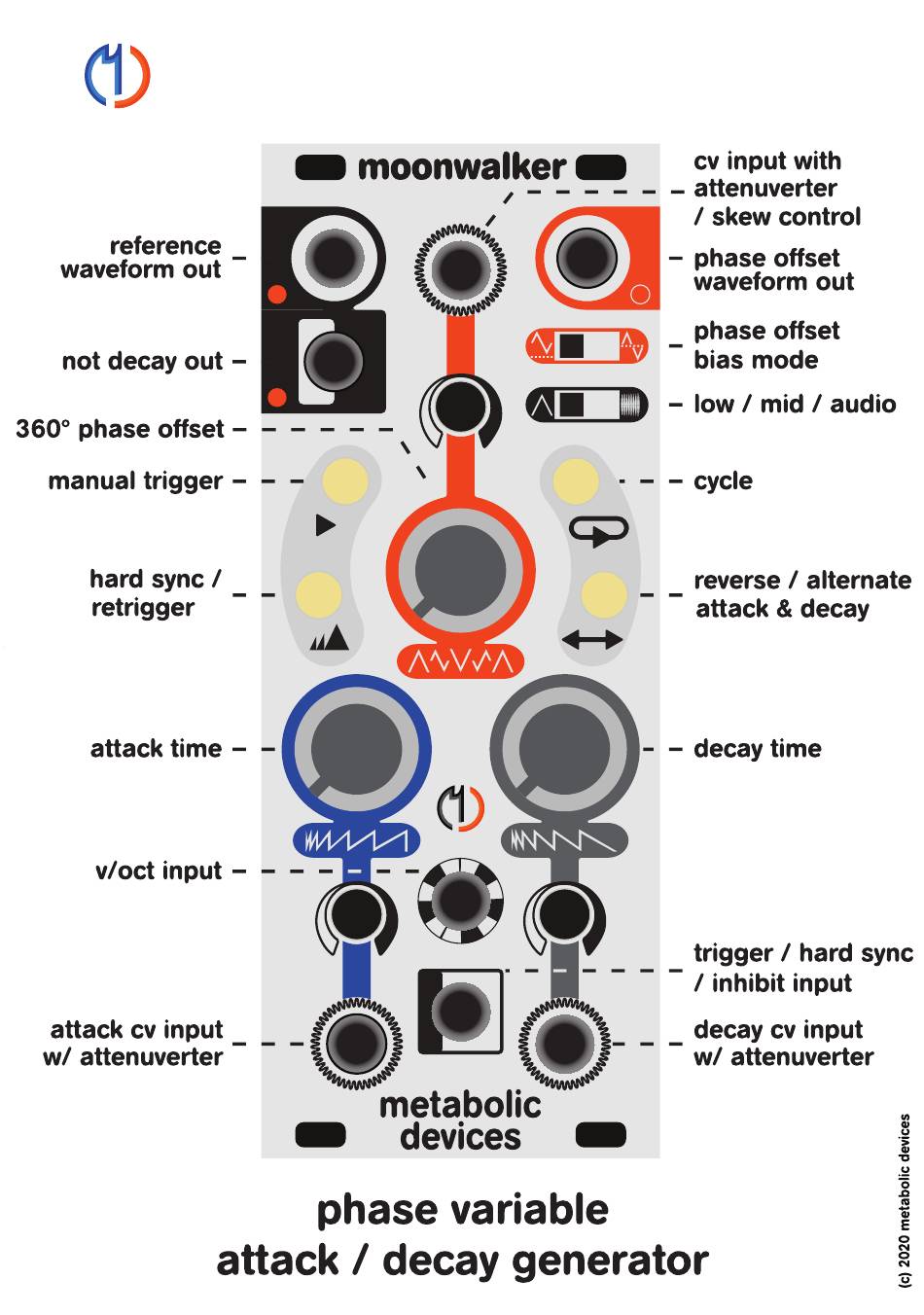

Metabolic Devices Moonwalker Manual

Phase variable attack/decay generator

Hide thumbs Also See for Moonwalker:

Table of Contents

Download this manual

metabolic

devices

Table of Contents

Need help?

Do you have a question about the Moonwalker and is the answer not in the manual?

Page 1 metabolic devices...
Page 2 metabolic devices...
Page 3 The reference waveform outputs 0v to 10v attack / decay waveform. The point at which the attack rate switches to the decay rate is decoupled from the direction of travel, and moves with the phase offset. With the phase offset at 0° the rate change is synchronous with the direction change.
Page 4 0V to -10V. With the phase offset at 270°, the output is +/-5V but starting direction is down instead of up. The rate switch changes the range of frequencies Moonwalker can output. Left is Low, center is Mid, and right is Audio. Attack or decay knobs can change the rates for:...
Page 5 Press this button to enable hard sync / retrigger mode. Enable this button to use Moonwalker as an LFO or audio oscillator. A quick press of this button swaps the attack and decay times.
Page 6 When Cycle is active, a voltage greater than 2.5v will inhibit Moonwalkers output, moving it towards 0V at the current rate and keeping it there until the cv falls below 2.5v. Additional peaks and troughs are added to the waveform at each passing of the threshold.
Page 7 Trigger Moonwalker with each new note and adjust the attenuator for the desired range of modulation. Now manually perform a filter sweep using the filter cutoff control on the filter module.
