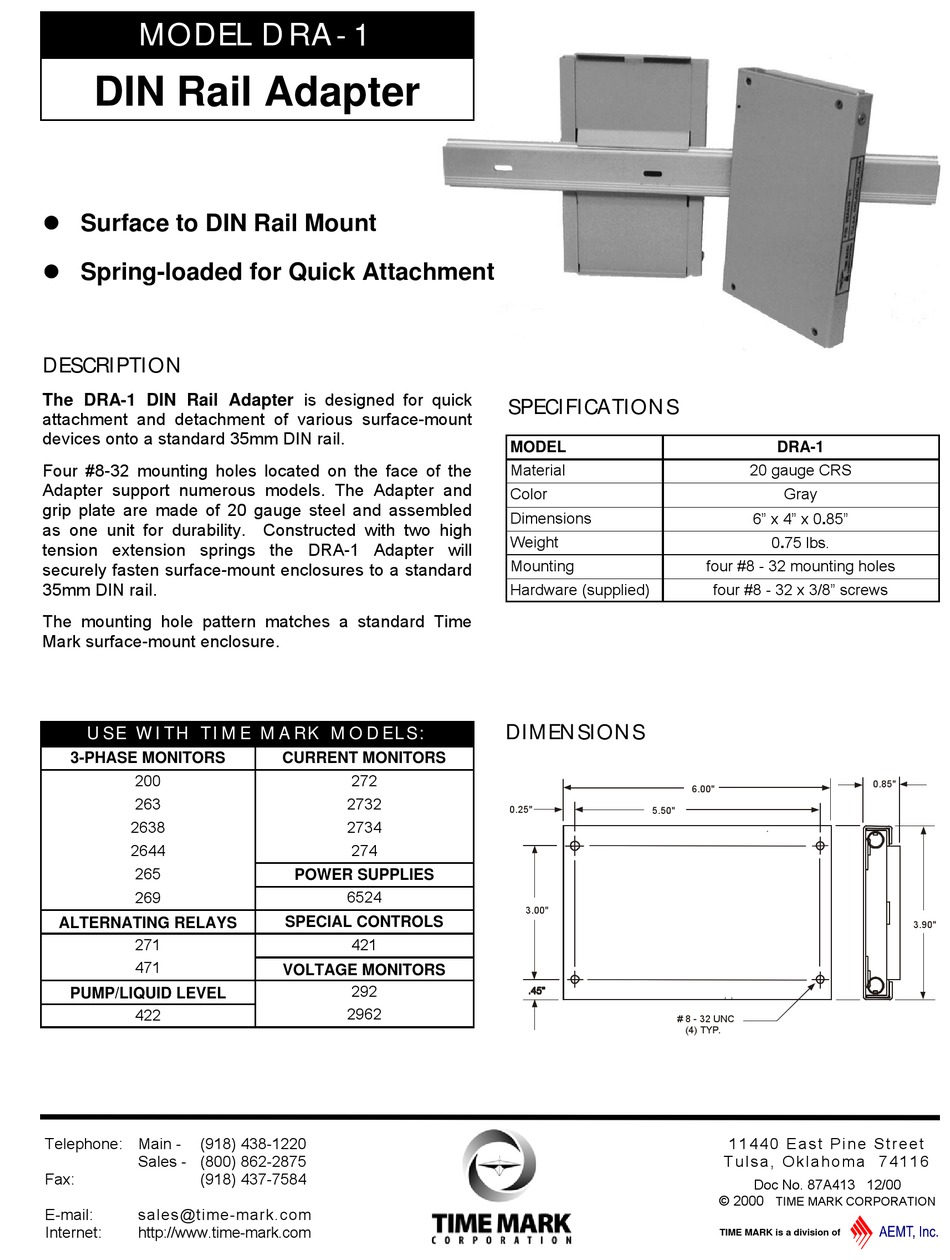

TIME MARK DRA-1 Quick Start Manual

MODEL DRA-1
DIN Rail Adapter
l l Surface to DIN Rail Mount
l l Spring-loaded for Quick Attachment

DESCRIPTION

The DRA-1 DIN Rail Adapter is designed for quick
attachment and detachment of various surface-mount
devices onto a standard 35mm DIN rail.
Four #8-32 mounting holes located on the face of the
Adapter support numerous models. The Adapter and
grip plate are made of 20 gauge steel and assembled
as one unit for durability. Constructed with two high
tension extension springs the DRA-1 Adapter will
securely fasten surface-mount enclosures to a standard
35mm DIN rail.
The mounting hole pattern matches a standard Time
Mark surface-mount enclosure.
U S E W I T H T I M E M A R K M O D E L S :
3-PHASE MONITORS
200
263
2638
2644
265
269
ALTERNATING RELAYS
271
471
PUMP/LIQUID LEVEL
422
Telephone: Main - (918) 438-1220
Sales - (800) 862-2875
Fax: (918) 437-7584
E-mail: sales@time-mark.com
Internet: http://www.time-mark.com
CURRENT MONITORS
272
2732
2734
274
POWER SUPPLIES
6524
SPECIAL CONTROLS
421
VOLTAGE MONITORS
292
2962

SPECIFICATIONS

MODEL
Material
Color

Dimensions

Weight
Mounting
Hardware (supplied)
DIMENSIONS
0.25" 5.50"
3.00"
# 8 - 32 UNC
DRA-1
20 gauge CRS
Gray
6" x 4" x 0.85"
0.75 lbs.
four #8 - 32 mounting holes
four #8 - 32 x 3/8" screws
6.00"
(4) TYP.
1 1 4 4 0 E a s t P i n e S t r e e t
T u l s a , O k l a h o m a 7 4 1 1 6
Doc No. 87A413 12/00
© 2000
TIME MARK CORPORATION
TIME MARK is a division of
0.85"
3.90"
