Digital Video Broadcasting PROMAX CABLE RANGER Quick Reference Manual

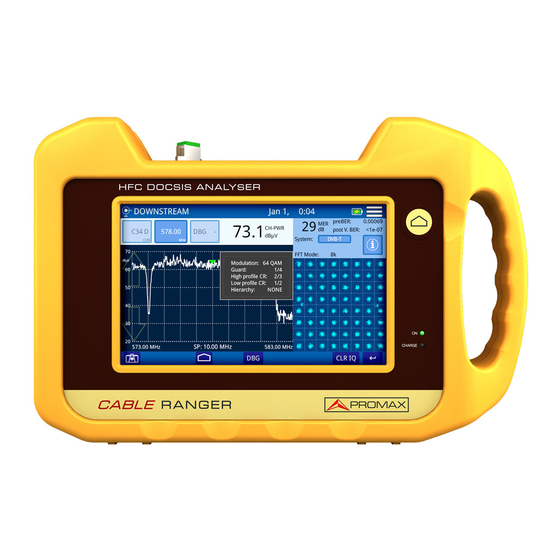

CABLE RANGER
FRONT VIEW
1
TOUCH ICONS
Screenshot
Back to previous screen
Back to main screen
Access to screenshots
Access to dataloggers
Access to user manual
Access to settings menu
Switch off
Increase value
Decrease value
Edit value
123
Select parameter
abc
Find the user's manual on the download area at : www.promaxelectronics.com
1
Touch Screen
3 ON indicator
QUICK REFERENCE GUIDE
2 HOME key to access main screen
4 Battery charging indicator
INDICATIVE ICONS
Cable measures
Fibre optics measures
USB flashdrive connected and detected
Connected to Ethernet network
Batery charging
Batery not charging. Green
level indicates battery left
Low battery
ON:
OFF:
RESET:
2
3
4
(3s)
