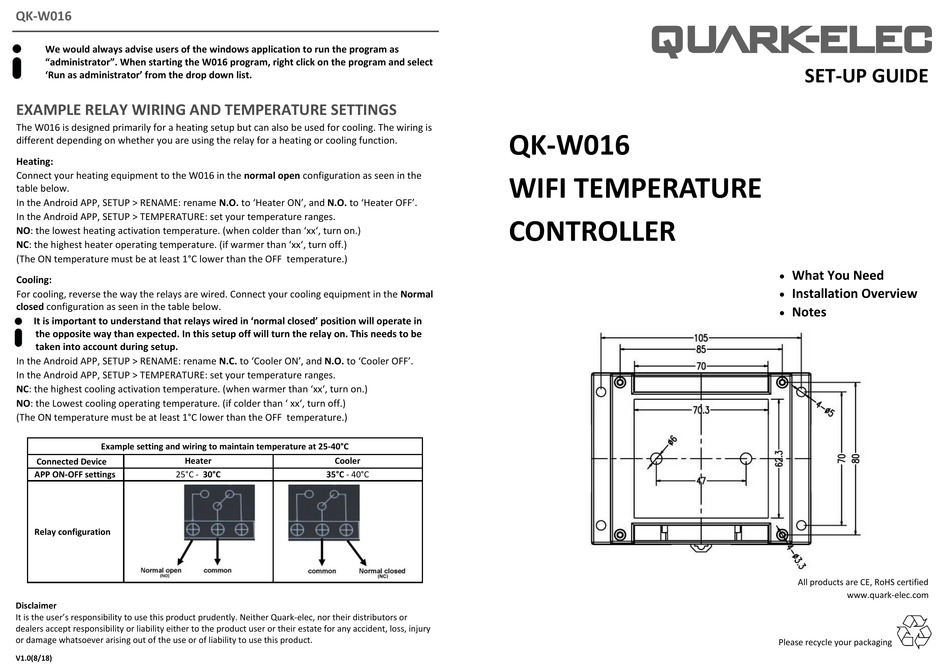

Quark-Elec QK-W016 Setup Manual

QK-W016
We would always advise users of the windows application to run the program as
"administrator". When starting the W016 program, right click on the program and select
'Run as administrator' from the drop down list.
EXAMPLE RELAY WIRING AND TEMPERATURE SETTINGS
The W016 is designed primarily for a heating setup but can also be used for cooling. The wiring is
different depending on whether you are using the relay for a heating or cooling function.
Heating:
Connect your heating equipment to the W016 in the normal open configuration as seen in the
table below.
In the Android APP, SETUP > RENAME: rename N.O. to 'Heater ON', and N.O. to 'Heater OFF'.
In the Android APP, SETUP > TEMPERATURE: set your temperature ranges.
NO: the lowest heating activation temperature. (when colder than 'xx', turn on.)
NC: the highest heater operating temperature. (if warmer than 'xx', turn off.)
(The ON temperature must be at least 1°C lower than the OFF temperature.)
Cooling:
For cooling, reverse the way the relays are wired. Connect your cooling equipment in the Normal
closed configuration as seen in the table below.
It is important to understand that relays wired in 'normal closed' position will operate in
the opposite way than expected. In this setup off will turn the relay on. This needs to be
taken into account during setup.
In the Android APP, SETUP > RENAME: rename N.C. to 'Cooler ON', and N.O. to 'Cooler OFF'.
In the Android APP, SETUP > TEMPERATURE: set your temperature ranges.
NC: the highest cooling activation temperature. (when warmer than 'xx', turn on.)
NO: the Lowest cooling operating temperature. (if colder than ' xx', turn off.)
(The ON temperature must be at least 1°C lower than the OFF temperature.)
Example setting and wiring to maintain temperature at 25-40°C
Heater
Connected Device
APP ON-OFF settings 25°C - 30°C
Relay configuration
Disclaimer
It is the user's responsibility to use this product prudently. Neither Quark-elec, nor their distributors or
dealers accept responsibility or liability either to the product user or their estate for any accident, loss, injury
or damage whatsoever arising out of the use or of liability to use this product.
V1.0(8/18)
Cooler
35°C - 40°C
QK-W016
WIFI TEMPERATURE
CONTROLLER
SET-UP GUIDE

What You Need

Installation Overview

Notes
