Summary of Contents for Luxli ORC-FIDDLE-01

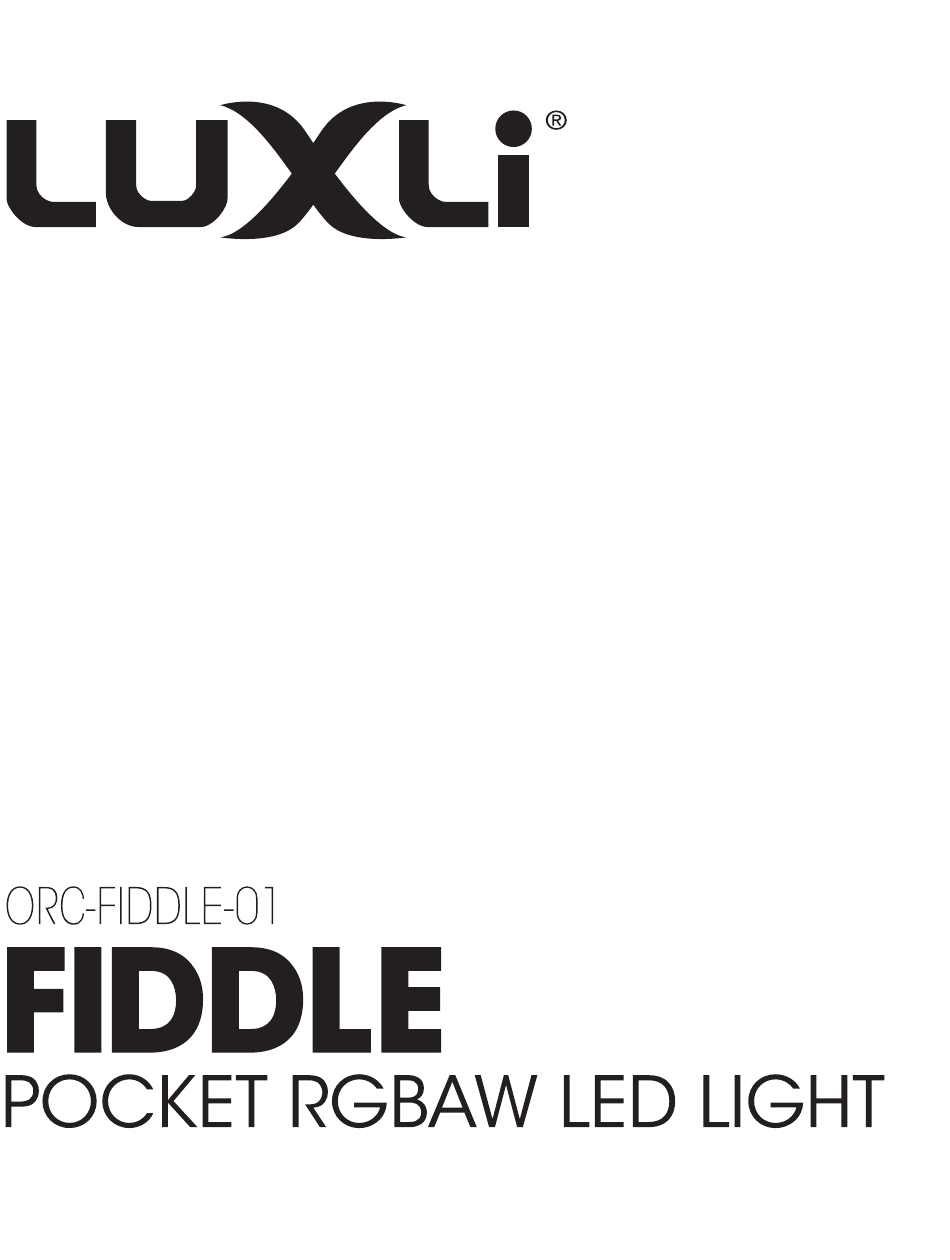

  • Page 1 USER MANUAL...
  • Page 2 The Fiddle pocket-sized multicolor LED light features a highly accurate and remarkably versatile RGBAW LED panel. The light is equipped with Bluetooth 5, which pairs with Luxli’s Composer mobile app from up to 100 feet away. Whether controlled via the app or the intuitive interface on the unit itself, the Fiddle will illuminate your creative vision with endless possibilities.
  • Page 3 4. USB Type-C™ port 2. Brightness dial* 5. LCD screen 3. Power/Mode selector switch 6. 1/4-20 sockets *The dials’ functions change depending on screen orientation. Made In Norway ORC-FIDDLE-01 KS1010 CONTAINS FCC ID: SH6MDBT50Q RoHS Serial: BH6-XXXXXX DID: D050833 Also Included •...
  • Page 4 Powering the Fiddle The Fiddle runs on an internal rechargeable battery, or via the USB Type-C™ port. USB Type-C Connect the Fiddle’s USB Type-C input with the USB-C AC adapter. Important! The USB Type-C port should be used only for power. It is not for data transfer. Recharging the Battery The internal battery can be recharged via the USB-C port.

  • Page 5: User Interface

    User Interface Power Switch • Powering on: Move the power switch to the middle position to power on the Fiddle. • Mode selection: Slide and release the power switch to the left to select between the three operating modes. Screen Orientation The screen rotates 180°...
  • Page 6 CCT Mode Correlated Color Temperature (CCT) mode allows you to accurately adjust the color temperature from 3000 to 10,000 K. Brightness is adjustable from 0% to 100% in 1% increments. 4300K Tint sets the green/magenta saturation level in 1% increments from 100% (full plus green) to -100% (full minus green).
  • Page 7 HSL Mode Hue Saturation Level (HSL) mode lets you scroll through the entire color wheel and adjust the saturation level. Every color of the visible spectrum is available. In HSL mode, you can create accent lighting as well as dramatic lighting effects for photography and video. The LCD screen displays the position on the color wheel in degrees, along with a color bar indicator.

  • Page 8: Filter Mode

    Filter Mode The Fiddle is loaded with 150 digital gel filters. Filter mode allows you to match the color temperature of your other lights, and then add one of the 150 loaded gels for a touch of color to a background or an accent light.

  • Page 9: Effects Mode

    Effects Mode Effects mode can be accessed only via the Effects from app Composer app. The Fiddle is loaded with 10 animated Siren effects. Each effect has multiple settings and parameters that can be adjusted in the Composer app. Description of the Effects CCT Chase A continuous look that changes between two preset color temperatures.

  • Page 10: Warnings And Indicators

    • Battery Empty: The LEDs will shut off. • Overheat: The LEDs will shut off, and brightness adjustment is disabled until the unit has cooled to a safe temperature. Important! If the unit frequently overheats, contact Luxli customer support. • USB Insufficient Voltage: USB: Unable to charge.
  • Page 11 Using the Fiddle with the Composer App The Luxli Composer app lets you unlock the potential of the Fiddle. Control Luxli lights individually or globally by forming groups. Save and recall custom presets, edit effects parameters, and create a timeline for your effects, like a DMX controller.
  • Page 12 Updating the Firmware Firmware updates are now available through the Composer app. To update the firmware, follow these steps: 1. Open the Composer app, and tap the Look for Lights icon. 2. Once the Fiddle is synced with the app, tap on the icon next to the name of the light.
  • Page 13 4. The firmware update screen will list available firmware versions. Tap on the version number of the newest update to select it. 5. Tap the Load firmware button to begin loading the new firmware version. 6. The Fiddle’s power will shut off, and the LCD screen will indicate an update is in progress. The Composer app will show a status bar of the update in progress.

  • Page 14: Specifications

    Specifications Light Fixture LED Type 5-Die RGBAW Beam Angle 72° Color Temperature 3000 to 10,000 K Color Accuracy Standard TLCI: 97 CRI: 95 Cooling System Passive Dimming 0% to 100% (continuous) Display Light Panel RGBAW LED LED Count Housing Material Aluminum Light Intensity @ 3 ft.
  • Page 15 Remote Operation Remote Connection Type Bluetooth 5 Wireless Range 100 ft. (30.5 m) Power USB PD Input 9, 12, 15 V Power Source Internal battery, USB-C wall charger Max Power Consumption 18 W...

  • Page 16: Troubleshooting

    Troubleshooting If you encounter any problems, first try turning the device off and then on. If the problem persists, remove the battery for 15 seconds, and then restart. FCC Compliance Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1.

  • Page 17: One-Year Limited Warranty

    One-Year Limited Warranty This Luxli product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider’s responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider’s discretion, of any product that fails during normal use of this product in its...
  • Page 18 luxlilight.com...
