- Page 2 WARNING READ THIS HANDBOOK CAREFULLY BEFORE INSTALLING OR STARTING THE DEVICE. The manufacturer guarantees this product for a period of 24 months as of the date of sale; if returned, the device must be accompanied by this handbook, with the installation date and programming parameter values entered on the last page. The guarantee is forfeited in the event of the following: the device is tampered with, disassembled or damaged due to mishandling and/or incorrect installation;...
-
Page 3: Specifications

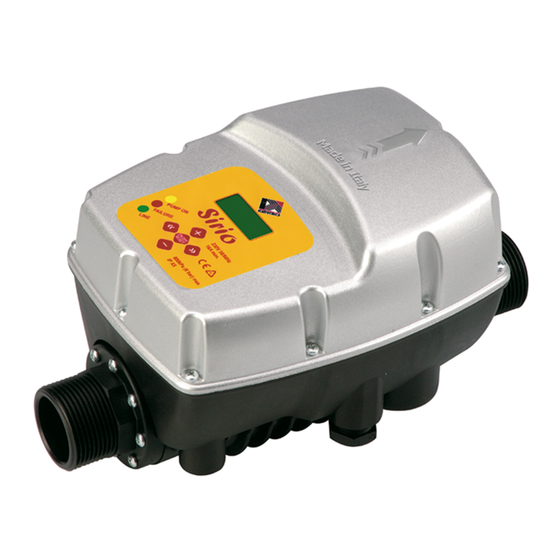

OVERALL SIZE - DIMENSIONS - IDENTIFICATION DESCRIPTION Sirio is an electronic device, employing inverter-based technology, which controls the pump stopping and starting functions. Thanks to the particular type of technology used, it can modulate the frequency (Hz) of the motor’s input current to alter the speed (rpm) according to the water delivery rate required from the system. -
Page 4: Installation
(e.g. for washing machines, toilet flushing systems, etc.). On no account must a check valve be fitted between the Sirio and the motor pump or between the device itself and the user appliances, as it could cause device malfunctions. When used with a submerged pump, the installation of a check valve before the inverter is allowed, provided that it is positioned at least 3 metres from the inverter. -
Page 5: Electrical Connection
- if the power supply cable or the cable between the Sirio and the pump is damaged, only the manufacturer of the device, its appointee or equally qualified personnel can replace it; this is to prevent risks to things and people. - Page 6 Where an excessive cable length (over 80 metres) is used, it is recommended to insert a dV/dT filter to limit peak current voltage and safeguard the durability of the motor, particularly the windings. Also observe the installation limits as declared by the manufacturer of the electric pump connected to Sirio - SIRIO ENTRY AND SIRIO ENTRY XP (single-phase pump): Sirio Entry can only be fitted on single-phase 230Vac electric pumps, already provided with capacitor.
- Page 7 If the device is set to work independently no connection is required. On the other hand, if the Sirio is connected to another unit to create a pressurisation group, follow the wiring diagram shown here;...
- Page 8 The Sirio is now in stand-by; in this mode (pump stationary) all the various parameters can be set (see “programming” paragraph) before the system is started up. To start up the pump, simply press the “on-off” button in the centre: The Sirio will exit the stand-by mode and the motor will start turning.
-
Page 9: Installer Parameters
Sirio switches off the pump when the flow of water passing through it falls below the minimum values (approx. 2 litres/minute) irrespective of the pressure reached in the system. -
Page 10: Advanced Parameters
0.5 A following interruption 0.5 Amp of the connection between the motor and Sirio. The trip time of the current overload safety device is inversely proportional to the entity of the overload in progress; therefore a slight overload will lead to a more delayed trip time while a more significant overload will accelerate the trip time. - Page 11 ALARMS In the event of system anomalies or malfunctions, one of the following screens will appear on the Sirio display. Each error is coded with the letter "E" followed by a number from 0 to 13. The number which appears in brackets represents the number of recurrences of each error.
-
Page 12: Possible Malfunctions
There is leakage in the system. Check the various hydraulic connections. Check the display for pressure drops when the taps are closed. Check the Sirio's check valve for dirt which could be preventing it from closing properly and, if necessary, clean it with compressed air. -
Page 13: Maintenance
In these cases, a pump with higher performance levels should be installed. MAINTENANCE: The Sirio is designed to keep maintenance requirements at a minimum. To guarantee the device a long working life and perfect functionality, always follow the instructions below: - ensure the device does not have to withstand temperatures of below 3°... - Page 14 SIRIO X4 It is possible to connect up to 4 Sirio inverters through the "Sirio X4" interface module. In this case, the communication cables are not directly connected between the two inverters but are all connected to the interface module which enables them sequentially.
