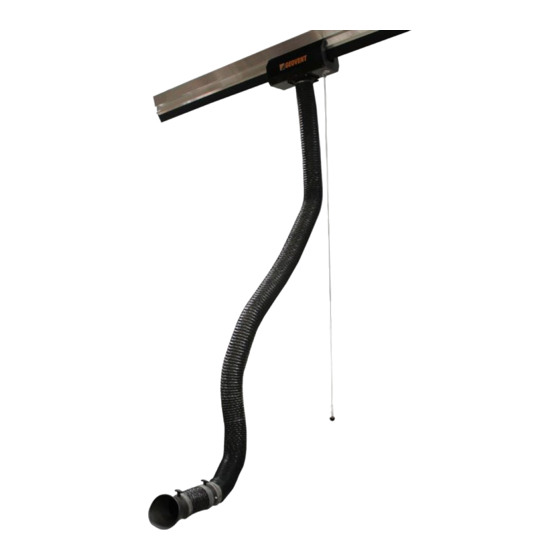

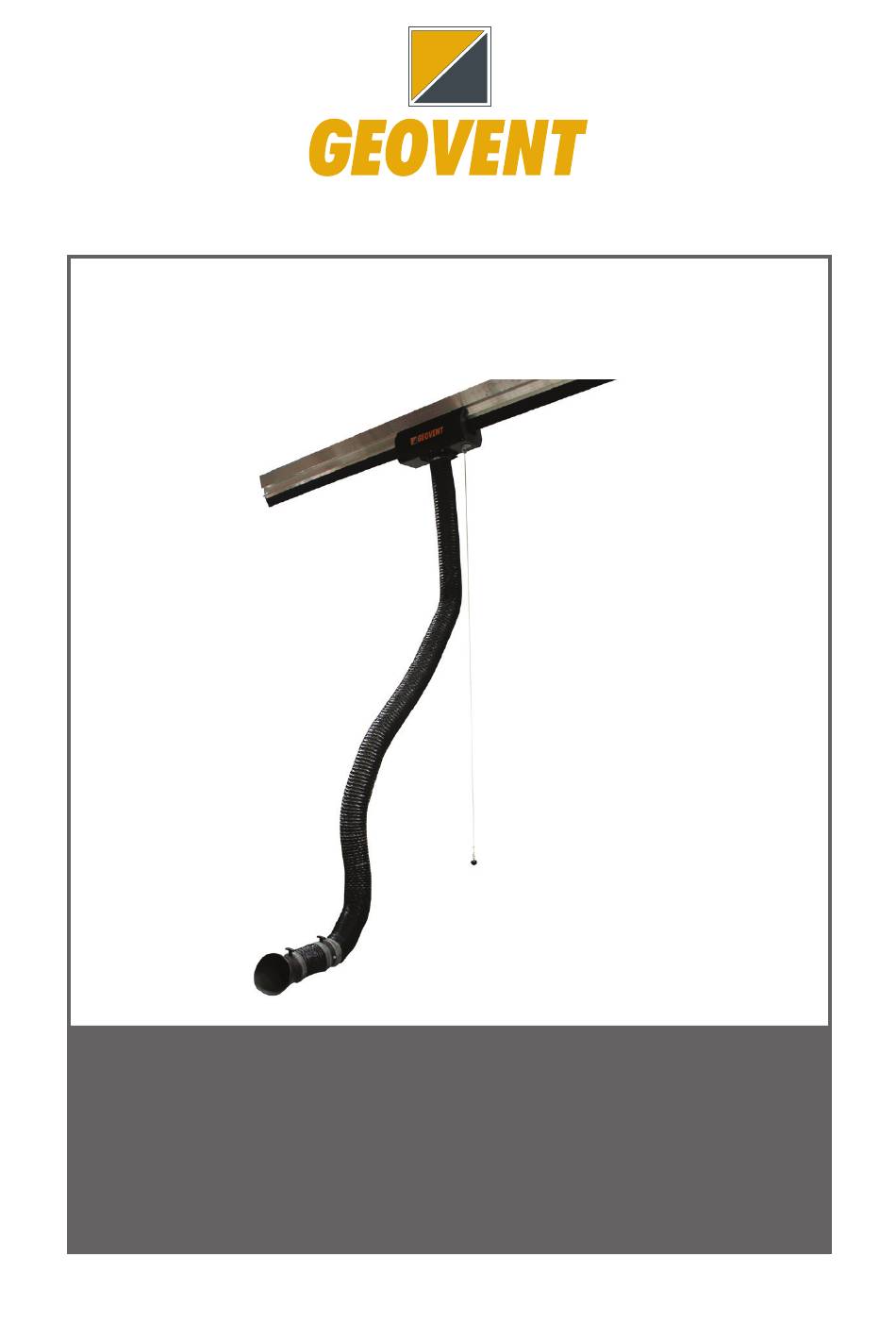

- Page 1 I N S T R U C T I O N M A N U A L C E R A E X H A U S T A R M ø160 mm, 360° rotatable www.geovent.com Version 1.0 19.04.21...
-
Page 3: Table Of Contents
10.0 Dismantling, disabling and scrapping ..8 suppliers than Geovent, as this may hamper the product 11.0 Dimensions ......8 and the function. -
Page 4: Machine Overview
3.2 Intended use M8 Bolt Geovent CERA arm is used to extract exhaust fumes from cars when they are switched on indoors. It can e.g. be when the car is in a workshop. The product is not to be used in areas categorised as ATEX zones, e.g. -
Page 5: Technical Data
Recommended installation height 5.1 Location (Adjusted to the length of the Cera-arm) The product is to be mounted on a Geovent trolley and afterwards in a Geovent channel duct. Person 1 Motorpool For installation of the channel duct: See the channel... - Page 6 On the trolley there are 4 pcs. M8 x 20 bolts and discs The aluminum profile of the arm must be loosened. must be removed, so that the flange of the CERA arm can be mounted. Loosen the M6 bolt with your fingers.
-
Page 7: Control And Test Of The Security System
6.0 Commissioning Pull the hose and clamp on to the flange and tighten it. The trolley with the CERA arm is often moved by the operator. To ensure the longest possible life time of the system, the trolley must always be moved / pulled by the cord with handle, which is mounted on the hose trolley, as shown on the drawing below. -
Page 8: Control, Test And Maintenance
The outside of the product is cleaned with a vacuum cleaner or a cloth. 9.0 Troubleshooting In case of problems with the CERA arm, the following points can be reviewed: Problems with the hose • The hose melts near the nozzle. This happens if there is not enough suction on the system, or if the hose bends near the nozzle. -
Page 9: Liability
Wear on parts such as filter cartridges and hose is not included in the warranty. User liability In order for Geovent to be capable of granting the decla- red warranty, the user/fitter must follow this instruction 4 meter manual in all respects. -
Page 10: Declaration Of Conformity
13.0 Declaration of conformity 14.0 Spare part list The manufacturer: GEOVENT A/S Art. No. Description HOVEDGADEN 86 95-300 2 x Friction discs ø114 mm DK-8831 LØGSTRUP Drejeled Hereby declares that: Friktionsklods 09-313-10 GeoFlex Weld ø165 mm, 10 meter The product:... - Page 12 HOVEDGADEN 86 • DK-8831 LØGSTRUP (+45) 8664 2211 • salg@geovent.dk...
