Eubiq SH1 Installation Manual

SH1

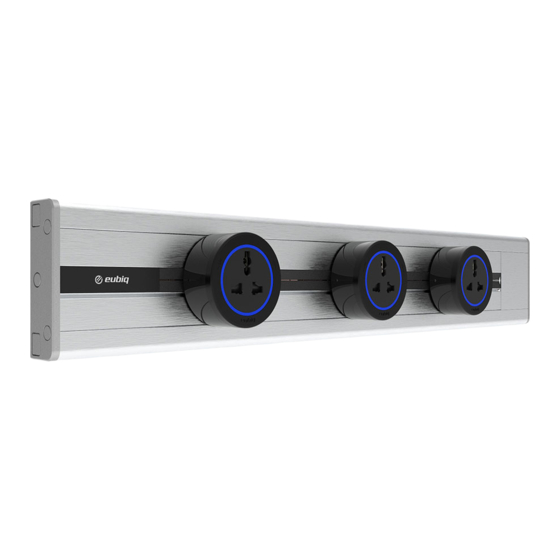

Power and Data Track (With SFC3)
Installation Guide

Product Overview

SH1 Corner Link
SH1 Housing
SH1 End Cap
SH1 Internal Corner Cap
Screw Cap
Pan Head Self Tapping Screw

Product Orientation

V-GROOVE AT BOTTOM
CAUTION
Keep away from fire.
Keep away from water.
Not for outdoor use.
To be installed by a
qualified electrician/
installer.
Housing Joint Pin
MF1 Mounting Frame
SH1 Retainer
DS4 Data Socket Housing
ATTACHING ACCESSORIES*
SFC Blank Cover
SFC3 Modular Track
* Compatible Accessories:
KH Kitchen Hook
KR Kitchen Rail
SH1 External Corner Cap
PLEASE READ BEFORE INSTALLING
INSTALLING PARTY
All Power Tracks must be installed by a qualified
electrician.
USE OF EARTH LEAKAGE CIRCUIT BREAKER (ELCB)
It is a mandatory requirement that all installations of
electrical
FIG. 1 Minimum Clearance for SH1 Installation
power source must be connected to an ELCB to provide
Minimum clearance of 25mm from the bottom required.
protection against overload, short circuits and earth
leakages
faults. Failure to comply can be harzadous.
INSTALLATION LOCATION
All Power Tracks must be installed at location that
complies with safety rules and regulations of respective
country.
INSTALLATION SURFACE
All Power Tracks must be installed on flat surface.
RECOMMENDED INSTALLATION CLEARANCE
Refer to FIG.1 on the right for more information on the
minimum clearance (from the floor or any furniture
fixtures) required for 'twist-on' adaptors and accessories.

Backplate Guide

a (mm)
SFC3 Track Length Quantity (Pcs) Arrangement
< 400mm 3 - 3
400 - 600mm 4 100mm 2-2
601 - 1100mm 6 160mm 3-3
1101 - 1500mm 9 3-3-3
160mm
1501 - 2500mm 12 160mm 3-3-3-3
2501 - 3300mm 15 160mm 3-3-3-3-3
a a
SFC3 Track
Attaching Multiple Backplates
Housing
*Where a is the length between the edge of the SFC3 Track to
the outermost edge of the backplate.

Measurement Guide

37mm
5mm
x
a
Internal Corner
b
Cap
End Cap
External
Corner Cap

Technical Specification

For SFC3 Modular Track
Rated Voltage : 250V a.c. Single-phase
Rated Current : 32Amp maximum
Frequency : 50Hz / 60Hz
Rated Impulse Withstand Voltage : 4000V a.c.
Connection of Adaptor or
Tap-off Unit : Intended to be connected
Terminal Connecting Capacity
5mm
(Live, Neutral and Earth) : 1.25mm² to 6mm²
Ambient Operating Temperature : -5°C to +55°C (not to
75mm
25mm Maximum Installation Altitude : 2000 metres
Degree of Protection : IP4X
Resistance to Impact : Heavy Impact
FLOOR/HOME FIXTURE
Degree of Pollution : 2 (Non-conductive pollution
Track and Housing Material : Aluminium
Insulation Material : Polycarbonate

Wiring Instructions

Live Terminal
SFC3 Track Live and Neutral Indicator
Prepare leads as shown:
10mm
50mm
Live (Brown or Red)
Earth (Green or Green/Yellow)
Neutral (Blue or Black)
40mm
10mm
1) Do not use in damp environment.
2) If in doubt, please consult a qualified electrician.
DESCRIPTION
x
Overall Wall Length y
z
Width of end cap = 5mm
For internal corner joint:
Width of gap = 37mm
y
z
5mm
MEASUREMENT GUIDE
SH1 Housing Length Formula
c
a (x - 37 - 5)mm
b
End Cap
c
and disconnected when
when system is energized
and with a load connected
exceed an average of more
than 35°C in any 24 hours
period)
with temporary conductivity
caused by condensation)
Earth Terminal
Neutral Terminal
a
SH1 Housing
b
Length
c
(y - 37)mm
(z - 5)mm
