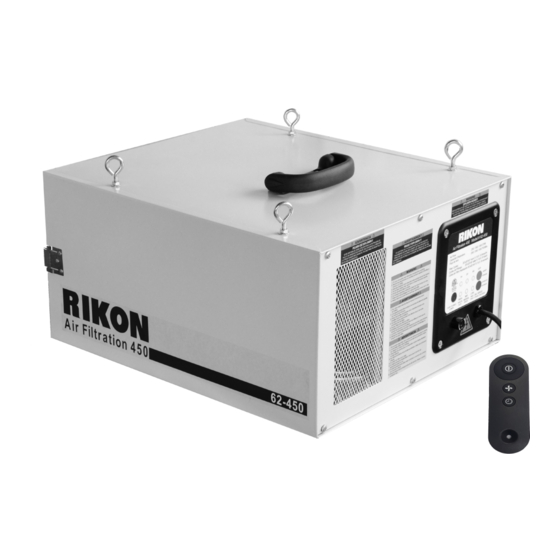

62-450

Air Filtration System

450 CFM

Operator's Manual

Record the serial number and date of purchase in your manual for future reference.

The serial number can be found on the specification label on the rear of your machine.

Serial Number: _________________________

Date of purchase: _________________________

For technical support or parts questions, email techsupport@rikontools.com or call toll free at (877)884-5167

www.rikontools.com

62-450M1

Table of Contents

Need help?

Do you have a question about the 62-450 and is the answer not in the manual?

Questions and answers

Summary of Contents for Rikon Power Tools 62-450

Page 1 62-450 Air Filtration System 450 CFM Operator’s Manual Record the serial number and date of purchase in your manual for future reference. The serial number can be found on the specification label on the rear of your machine. Serial Number: _________________________ Date of purchase: _________________________ For technical support or parts questions, email techsupport@rikontools.com or call toll free at (877)884-5167...
Page 2: Table Of Contents
Accessories..........................19 Warranty.................................19 Manual by Rod Burrow ......................SPECIFICATIONS Model Number.................... 62-450 Cubic Feet Per Minute (max)..............450 CFM Motor ..............1/4HP, 120V, 1.5 A, 60 Hz, 1Ph Speeds (3) ................250, 350, 450 CFM Timer (3) ....................1Hr, 2Hr, 4Hr Cycles per Hour ........20’ x 20’ x 8’ Room 5 / 6.5 / 8 Times per Hr Filter Ratings ..........Outer = 5 Microns / Inner = 1 Micron...
Page 3 SAFETY SYMBOLS The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols and the explanations with them deserve your careful attention and understanding. The symbol warnings do not, by themselves, eliminate the danger. The instructions and warnings they give are no substitutes for proper accident prevention measures.
Page 4 SAFETY INSTRUCTIONS IMPORTANT! Safety is the single most important consideration in the operation of this equipment. The following instructions must be followed at all times. There are certain applications for which this tool was designed. We strongly recommend that this tool not be modified and/ or used for any other application other than that for which it was designed.
Page 5 SAFETY INSTRUCTIONS 16. NEVER LEAVE A RUNNING TOOL UNATTENDED. 26. USE A PROPER EXTENSION CORD IN GOOD Turn the power switch to the “OFF” position. DO NOT leave CONDITION. When using an extension cord, be sure to the tool until it has come to a complete stop. use one heavy enough to carry the current your product will draw.
Page 6 SAFETY INSTRUCTIONS ELECTRICAL SAFETY EXTENSION CORDS (Continued from Pg.5) DO NOT MODIFY THE PLUG PROVIDED. Keep the extension cord clear of the If it will not fit the electrical receptacle, have the proper working area. Position the cord so that it will not get electrical receptacle installed by a qualified electrician.
Page 7: Air Filtration Safety Rules
(877-884-5167) as soon as possible for replacements. Do not turn your machine ON if any of these items are missing. You may cause injury to yourself or damage to your machine. 62-450 A . Air Filtration Unit Air Filtration System 450 CFM B .
Page 8: Getting To Know Your Air Filtration System
GETTING TO KNOW YOUR AIR FILTRATION Item Description Item Description A. Carrying Handle F. Outer Filter (1), Inner Filter (1) B. Control Panel/Receiver G. Remote Control C. Fuse H. Hanging Chains (4) D. Power Cord I. Hangers and Locknuts (4) E.
Page 9 ASSEMBLY The air filter is designed to circulate air and filter wood and other non-metallic dust. The unit requires only minimal assembly. However, it is important to consider how and where to place the unit in your shop. When selecting a site, make sure there is a suitable power source. Air Filtration System Placement: The ideal location for an air filtration system is centered in the shop ceiling, mounted...
Page 10: Operation
Doing so may result in poor operation or reduced range of the remote control. Fig.06 62-450 Control Panel EFS China.pdf 1 3/17/2020 8:49:21 AM OPERATION The air filter can be operated directly using the control panel or with the remote control. Note:...
Page 11 62-450 Control Panel EFS China.pdf 1 3/17/2020 8:49:21 AM OPERATION (Continued from Pg.10) 3. Press the ON/SPEED button (A) again to change the speed. The LEDs (B) next to the Air Filtration 450 Model # 62-450 ON/SPEED button on the control panel will...
Page 12: Maintenance
MAINTENANCE Changing the Filters WARNING To reduce the risk of injury disconnect the air cleaner from the power source (unplug) before servicing or changing filters and fuses. Failure to comply may cause serious injury! Change the filters (Fig.10 and 11) NOTE: Care should be taken when handling soiled or contaminated filters.
Page 13 MAINTENANCE Check and Replace the Fuse (Fig. 12) 1. Unplug unit from the receptacle or other outlet device. 2. Using a Phillips head screwdriver turn the fuse cover Fig.12, (A) counterclockwise to remove it. Carefully pull the fuse away from the control panel.
Page 14: Troubleshooting
TROUBLESHOOTING TO PREVENT INJURY TO YOURSELF or damage to the Air Filtration System, turn the switch to the machine “OFF” and unplug the power cord from the electrical receptacle before making any adjustments. PROBLEM LIKELY CAUSE(S) SOLUTION(S) 1. Machine not plugged in 1.
Page 15: Wiring Diagram
WIRING DIAGRAM WARNING:This machine must be grounded. Replacement of the power supply cable should only be done by a qualified electrician. READ ELECTRICAL SAFETY ON PAGES 5 & 6! NOTES Use this section to record maintenance, service and any calls to Technical Support.
Page 16: Parts Diagrams
PARTS EXPLOSION CABINET ASSEMBLY NOTE: Please reference the Manufacturer’s Part Number when calling for Replacement Parts. For Parts under Warranty, the Serial Number of your machine is required.
Page 17 FJ-156-120 风机 Sheet PARTS EXPLOSION MOTOR & BLOWER ASSEMBLY AC060A091000A 开关盒组件(60Hz) Sheet CONTROL PANEL ASSEMBLY NOTE: Please reference the Manufacturer’s Part Number when calling for Replacement Parts. For Parts under Warranty, the Serial Number of your machine is required.
Page 18: Parts List
PARTS LIST Key No. Description MFG. PART NO. Cross Recessed Countersunk Head Screw M6x20 P62-450-1 Switch P62-450-2 Flat Washer P62-450-3 Spring Washer P62-450-4 Cross Recessed Countersunk Head Screw M4X10 P62-450-5 Hex Nut P62-450-6 Spring Washer P62-450-7 Flat Washer P62-450-8 CrossRecessed Countersunk Head Screw M5x16 P62-450-9 Mount ed Plate P62-450-10...
Page 19: Accessories
® RIKON Power Tools Inc. (“Seller”) warrants to only the original retail consumer/purchaser of our products that each product be free from defects in materials and workmanship for a period of five (5) years from the date the product was purchased at retail.
Page 20 62-450 For more information: 16 Progress Road Billerica, MA 01821 877-884-5167 / 978-528-5380 techsupport@rikontools.com www.rikontools.com 62-450M1...
