Summary of Contents for i3-TECHNOLOGIES i3CAIR
- Page 1 Quick start guide...

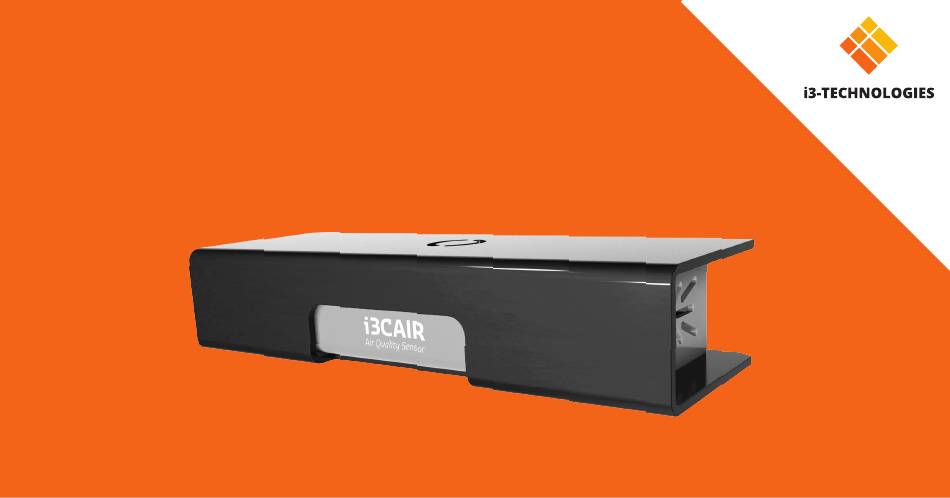

- Page 2 Thank you. Enjoy the purchase of your i3CAIR - Indoor Air Quality Sensor. View this manual online https://i3cair.com/manual...
-
Page 3: What's In The Box
Lets see what’s in the box. i3-Technologies is conscious about the environmental impact of the products that we produce. Therefore we would like you to support us in this mission by disposing all packaging according to any local regulations. To check if we packed your product correctly, please verify if all these items are present:... - Page 4 E10r i3TOUCH EX i3TOUCH PX i3TOUCH PXr i3TOUCH ES No need for a power outlet! The i3CAIR gets its power from the i3TOUCH display through the USB cable. So no need to struggle with power supply extensions. i3CAIR COMPATIBILITY...
- Page 5 Sensors. The i3CAIR Indoor Air Quality Monitor has 4 sensors that determine the Wellbeing Index: Carbon dioxide (CO Particle matter (PM2.5) Temperature Humidity Ranges from: 0 to 1,000 μg/m The levels of carbon dioxide Make sure the temperature is Ranges from: 0 to 100% Typical Accuracy: ±...
- Page 6 Where to position the i3CAIR? The i3CAIR is best placed in a ‘neutral’ space in the room. We advice not to place an i3CAIR close to a radiator or any other kind of heating source. The i3CAIR is best placed in the middle, under the i3TOUCH display, ideally in the shade.
- Page 7 Mounting. Mounting the i3CAIR onto an i3TOUCH Using the specially designed bracket The i3CAIR sensor box can be positioned in the most ideal position using the specially designed bracket. This bracket can be easily attached to your i3TOUCH i3CAIR MOUNTING...
- Page 8 Use the included USB cable to connect the i3CAIR (micro USB port) with a USB port on the i3TOUCH. The i3CAIR will get its power from the USB cable so there is no need for an external power supply. When powered on, a small green LED light appears on the back of the device.
- Page 9 Auto-Configure the i3CAIR When the i3CAIR app is present on an i3TOUCH display then it will automatically detect the connection of an i3CAIR sensor box. When you launch the app you will see the connection status in the upper right corner.
- Page 10 In case of issues the connection status will be ‘red’ showing a ‘disconnected’ message. Check the connection status in the i3LAUNCHER If an i3CAIR sensor box has been paired successfully with an i3TOUCH then the i3CAIR air quality widget will appear in the upper left corner of the i3Launcher...
- Page 11 For example: next to an open window. The i3CAIR sensor box will use the outside air to start the calibration process. Do not use this calibration function in a closed room with high values or in a location with high outside CO values like a polluted city center.
- Page 12 Using the i3CAIR app. Explaining the interface i3CAIR...
- Page 13 5 Current air quality index - refreshes every 5 seconds 6 The i3CAIR app stores sensor data for 7 days. Via this menu (horizontal tabs) one can consult the 7-days rolling data of the air quality index or the data from each individual sensor.
- Page 14 For more information about where to drop off your batteries and electrical and electronic waste, please contact your local city/municipality office, your household waste disposal service, or the shop where you purchased this product. Contact info@i3-technologies.com for additional information on WEEE and waste batteries. Any changes or modifications could void the user’s authority to operate this device.
-
Page 15: Warranty
Warranty information. By default our i3CAIR device is equipped with a 2 year warranty. i3CAIR WARRANTY... - Page 16 WWW.I3-TECHNOLOGIES.COM INFO@I3-TECHNOLOGIES.COM...
