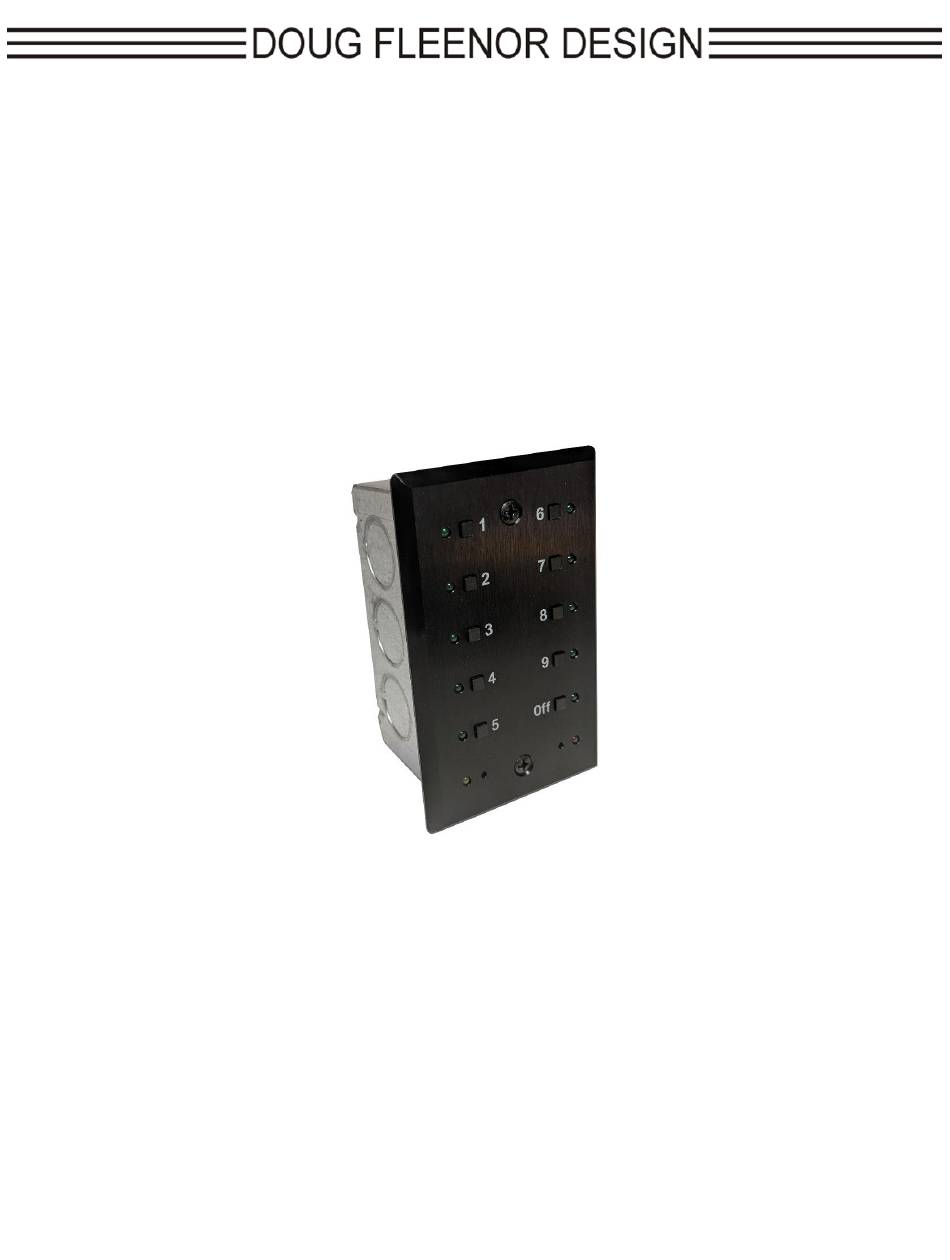

- Page 1 PRESET 10 ARCHITECTURAL OWNERS MANUAL Doug Fleenor Design 396 Corbett Canyon Road Arroyo Grande, CA 93420 (805) 481-9599 Software Version 2.4 Manual Revision September 2019...
-
Page 2: Product Description

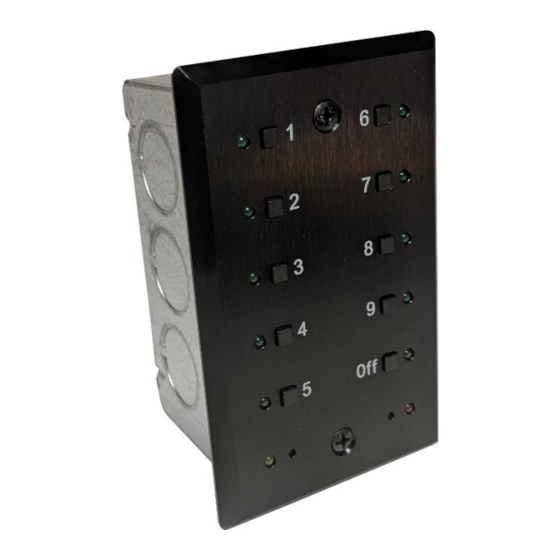

PRODUCT DESCRIPTION The Preset 10 Architectural is a lighting control station capable of storing up to ten presets. These presets are recorded by capturing the output of a DMX512 console. Each preset can then be assigned a unique fade time, from 0 to 999 seconds. Presets are recalled by pressing one of the buttons. -
Page 3: Specifications
SPECIFICATIONS: Connector: Phoenix Contact MSTB series 5 position two part terminal block Model: MTSB 2,5/5-ST-5,08 Order Number: 17 57 04 8 Supply voltage “hot” Connector Pin Out: Supply common (internally tied to DMX512 common) DMX512 data + DMX512 data – DMX512 common Input/Output Circuit: ESD protected EIA-485 transceiver (LT1785) -
Page 4: Wiring Information
Stripe POWER SUPPLY The voltage provided to the Preset 10 Architectural must be between 9 and 15 volts AC or DC, 200mA per station. The Preset 10 Architectural has been designed to operate on a standard class 2 “doorbell” transformer (e.g. Ace Hardware’s model #ACE36483 10 volt 5 watt transformer). - Page 5 PRESET 10 ARCHITECTURAL – SETUP FACEPLATE CONFIGURATION Each Preset 10 Architectural has four jumpers, JP1 through JP4, which select different modes of operation. The factory default is to have all jumpers installed. When this jumper is installed on the MAIN faceplate, recording of presets is enabled. When removed, the TIME and RECORD buttons are disabled.
- Page 6 PRESET 10 ARCHITECTURAL – OPERATION INDICATORS GREEN LED ON = CURRENTLY SELECTED PRESET FLASHING = TIME SETTING MODE SELECTED FOR THIS PRESET YELLOW LED ON = PRESET FADE IS IN PROGRESS FLASHING = TIME SETTING MODE SELECTED RED LED ON = STATION LOCKED OUT / RECEIVING DMX512 FROM EXTERNAL CONSOLE...
- Page 7 4. Upon releasing the PRESET SELECT button, the red LED will no longer flash. This indicates recording is complete. Repeat steps 1 through 4 until you have recorded as many presets as required, up to ten total. RECORDING PRESET CROSSFADE TIME A crossfade is a fade where the new preset levels entirely replace the previous levels.
-
Page 8: Limited Manufacturer's Warranty
This feature can be disabled by recording any non-zero level on any channel into preset number 10 (OFF). LIMITED MANUFACTURER’S WARRANTY Products manufactured by Doug Fleenor Design (DFD) carry a five-year parts and labor warranty against manufacturing defects. It is the customer's responsibility to return the product to DFD at the customer's expense.
