Summary of Contents for ATT Zirocco-M

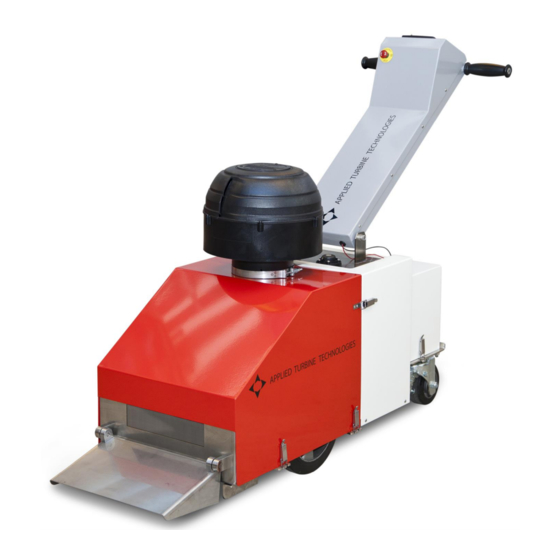

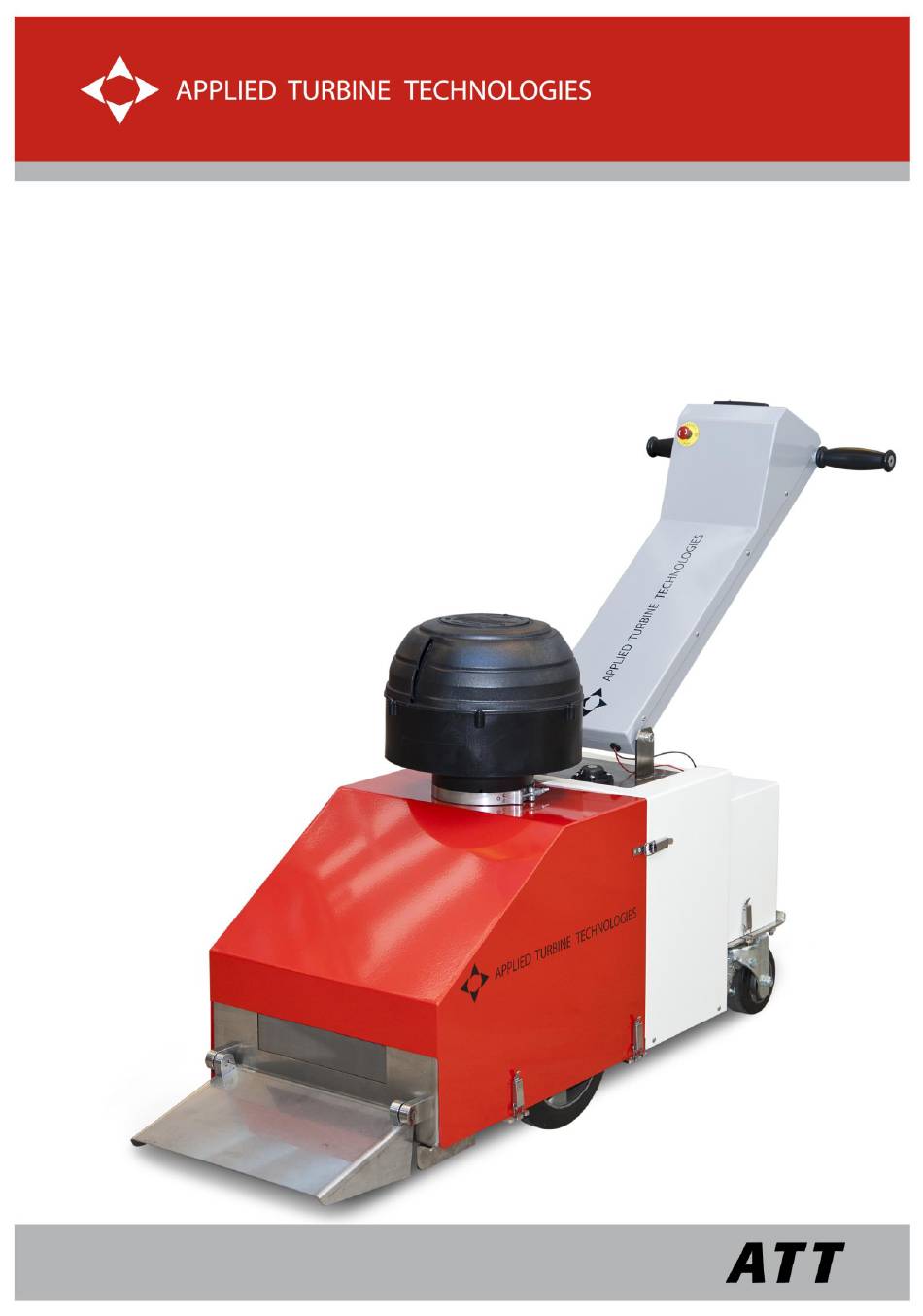

- Page 1 Operating Manual Zirocco-M Jet Dryer & Cleaner...
-
Page 2: Table Of Contents
Table of Contents EU Declaration of Conformity ..................... 3 Annex 1 to EU Declaration of Conformity ................4 Nameplate ........................5 Safety Instructions ......................7 Obligations........................7 Intended use ........................ 8 Misuse ........................8 Disclaimer ........................11 Introduction ........................12 Zirocco - Jet Dryer &... -
Page 3: Eu Declaration Of Conformity
EU Declaration of Conformity The undersigned, representing the following manufacturer: Applied Turbine Technology ApS Nordborgvej 81, 6430 Nordborg, Denmark hereby declares that: Machine type no. 10000-40 is in conformity with all relevant provisions of the following EC directive(s): DIRECTIVE 2006/42/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 17 May 2006 on machinery The EMC Directive 2004/108/EC Person authorized to collect technical data and make them available to the relevant authorities:... -
Page 4: Annex 1 To Eu Declaration Of Conformity
Annex 1 to EU Declaration of Conformity References to standards and specifications used for the Declaration of Conformity: Harmonized standards Number Version Title Safety of machinery – Electrical equipment of DS/EN 60204- 2006 machines – General requirements Safety of machinery – Safety-related parts of control DS/EN ISO 13849-1 2006 systems –... -
Page 5: Nameplate
Nameplate The Zirocco is provided with a name plate according to the requirements stated in the Directive 2006/42/EC placed in the front of the product above the nozzle cover. The nameplate is showing the CE symbol as well as the name and contact address of the manufacturing company. - Page 6 The following table shows the required NRR rating for the hearing protection dependent of the average machine usage a day. TWA exposiure Operator Working hours Work exposure dB(A) (100% Machine performance level) TWA dose dB(A) NRR protection rating dBA reduction (NRR-7)/2 Requirement dB(A)
-
Page 7: Safety Instructions
Safety Instructions Obligations Obligations of the Operator/manager: The Zirocco must only be operated by personnel with the following knowledge: • Are aware of the basic workplace safety information and accident prevention regulations. • Have been instructed and trained in working with the Zirocco. •... -
Page 8: Intended Use
Intended use The product Zirocco-M's intended use is for outdoor drying and cleaning of roads, runways, concrete areas or other areas of non-flammable materials. The product is using the exhaust from a micro jet turbine to dry and clean the surfaces and should not be used on surfaces covered with sand or gravel as well as waste of or close to flammable materials. - Page 9 Concrete drying Crack repair This Operating Manual utilise the following safety signs. Follow these safety signs carefully since failure comply may cause personnel injuries or irreparable damage to the equipment.
- Page 10 WARNING Personal injury / mortal danger A usage situation of a technical nature or similar that may cause personal injury or mortal danger. CAUTION Damage to machine or accessories A usage situation of a technical nature or similar that may cause damage to the machine or its accessories.
-
Page 11: Disclaimer
Disclaimer All specifications and instructions in this document conform to the rules and provisions in the EU Machinery Directive 2006/42/EC and Directive 2004/104/EC. INFORMATION This Operating Manual is subject to change without prior notice. Contact info@zirocco.dk to request new editions of the Guide. The warranty will be voided if the product is damaged for one of the following reasons: •... -
Page 12: Introduction
Introduction Zirocco - Jet Dryer & Cleaner The Zirocco jet dryer sets new standards for surface treatment in e.g. the road marking, paving, fugue sealing, and crack repair industries. The Zirocco takes advantage of our innovative gas turbine technology to ensure effective cleaning and drying of surfaces, roads, fugues, and cracks. •... -
Page 13: Product Overview
Product Overview 1) Handle and display 2) Turbine box 3) Fuel tank 4) Cyclone separator 5) Engine cover plate 6) Adjusting lever 7) Battery 8) Battery cover 9) Nozzle 10) Nozzle Cover/Shroud 11) Bonnet 12) Line driver hook... -
Page 14: Display
Display “Page 1” Operating symbol Battery voltage Fuel level Pre-heater “Run” and “Running” indicate that the machine is ready for operation Cooling Emergency stop Flashes red when the emergency stop is enabled Start-up/Wait. Flashes when the machine is ready for operation Temperature indication 10) Operational hours Figure 2: Display, page 1 (Page 1) -
Page 15: Accessories
0-25 m2 5000-40 Wheels Ø 250 5000-10 Battery 60 Ah 4000-10 Display DP 250 1000-20 Standard Nozzle 300 mm 2000-30 Labels: ATT Logo 9000-30 Label: Heat Warning sign 9000-20 Label: Hearing protection Warning sign 9000-10 Turbine oil ATT Turbine oil 7000-80... -
Page 16: Operation
CAUTION Fuel Use Diesel EN 590 along with 5 % ATT Turbine oil (7000-80) in the mixing ratio 1 to 20. (20 liters of fuel to 1 liter of ATT Turbine oil). When utilizing US Gallons, the mixing ratio is 1 liter ATT Turbine Oil to 5 US Gallons of Diesel. In areas where low smoke emission is needed, then use odourless and smokeless petroleum (use Exxsol D 80 or Shellsol D70 petroleum corresponding to Diesel EN 590). -
Page 17: Power-Up
Power-Up 1) Main switch – cuts power to the machine. ” Never use when the machine is in operation”. 2) Thermal fuse. Figure 1 3) Press the green start button of the main switch to turn on the control. Figure 2 4) Turn the key switch to position “1”. -
Page 18: Warm-Up
Warm-Up 1) Turn the key switch to position 2 and keep it in this position for 4 seconds. 2) Release the key switch. Figure 5 3) The pre-heater symbol in the display will flash, and the current temperature will be displayed. Figure 6 4) The “Start-up/Wait”... -
Page 19: Operating The Zirocco
Operating the machine Set the operating lever to the correct working height: 1) Pull the handle up. 2) Set the operating lever. 3) Release the lever. Figure 8 The safety wire is connected to a stop switch. The string is attached to the operator during operation. If the driver moves to a distance of more than 0 .5 m from the machine, the safety wire is pulled, and the machine stops. -
Page 20: Parking
Parking The machine needs to be placed on firm surfaces before the shut down procedure can be initiated. The product has parking brakes on each pivot wheel, which must be activated before leaving the machine. Figure 11 Cooling 1) Turn the key switch from position”1” to position ”0”. -
Page 21: Machine Shut-Down
Machine shut-down 1) The red stop button of the power switch can only de-activated, when the turbine`s cooling program is completed and the operating symbol on the display has been off for 2 minutes. The machine turns off automatically after 60 minutes (factory setting). -
Page 22: Low Fuel Level
The two air filters must be replaced simultaneously and after maximum 10 hours of operation. Switch off the machine before replacing the filters. Use only filter type ATT 5000-60. Then change the filters and turn the key to the left to reset the warning. -
Page 23: Technical Data
30-120 cm Fuel (EU specifications): EN 590 US specifications: 1-D S15 ULSD Battery: ATT 4000-10 (12V, 60 Ah Box size L02) Air filter: PM 2 .5 (2 pcs filters with maximum 10 hours of operation) Fuel filter: 40 µm Cyclone separator: 0-25 m2 See order numbers in “Accessories”... -
Page 24: Hazard And Danger Zones
Hazard and danger zones Exhaust Heating Noise The hazard and danger zones are illustrated in the above figure. Each hazard zone requires its own protection measures • The NOISE zone requires earmuffs to avoid loss of hearing ability • The EXHAUST zone, where the use of safety glasses are required •... -
Page 25: Warning Signs
The nozzle cover can still be warm after the turbine engine has cooled down. Care should be used when touching the cover plate. Order immediately new warning signs if the old ones get damaged. Warning signs can be ordered via ATT Distributors (see order numbers in “Accessories” on page 10). -
Page 26: Troubleshooting
Troubleshooting Error Messages Error message Solution Remove battery cover and check • Main switch is activated • Reset the thermo fuse • Battery cable logs and connections Black user screen • Measure battery voltage Remove handlebar cover and check • The electric fuse User screen turns off immediately after start up attempt Reset safety switch on the handlebar... -
Page 27: Fuel System Ventilation
Fuel System Ventilation 1) Remove the cyclone separator. 2) Loosen the quick releases on both sides of the heat shield. 3) Lift and remove the heat shield. 4) Loosen the quick releases on the engine box cover on both sides. 5) Remove the engine box cover. - Page 28 6) Pull out and remove the filter frame. 7) Remove the air filter. 8) Check for air bubbles in the hose. 9) Air out the system.
-
Page 29: Check And Service
Turbine Module Box Ensure completion of the service check of the turbine module box after maximum 100 hours or once a year. ATT has the only authorised workshop for service checks. Air filter Inspect the air filters daily. Replace the air filters if they are soiled or blocked. - Page 30 Standard battery of the type EXIDE 600 (12V, 60 Ah) or similar. Battery charging 1) Charging plug 2) Charge the battery with an ATT battery charger. When the battery is charged at a temperature below freezing point, use the 14 .7 V charging button.
- Page 31 2) Dismantle the two battery holders. 3) Install the new battery and battery holders. Wheels The Zirocco wheels are subject to extensive heat and wear. It is recommended that they are replaced, as soon as they show signs of damage. New wheels and other spares and accessories can be ordered via our distributors (see more on our website: https://appliedturbinetechnologies.com/en/distributors) or if...
-
Page 32: Storage & Transportation
Store the Zirocco in a place with low air humidity and do not expose to dust, dirt, rain, snow and vibrations. If possible the Zirocco should be stored in the relevant packaging box from ATT. Wastedisposal Zirocco – Road Dryer should be returned to Applied Turbine Technologies for proper waste disposal. - Page 33 Applied Turbine Technologies Nordborgvej 81, E35, 6430 Nordborg, Denmark Telephone: +45 70236080 • www.zirocco.com...
