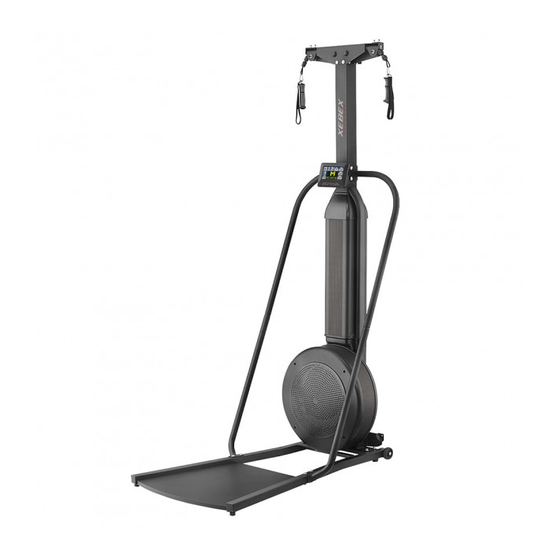

Summary of Contents for IRONEDGE XEBEX SKI TRAINER
- Page 2 ASK-2 SKI TRAINER withFLOOR STAND ASSEMBLY INSTRUCTIONS I n t r o d u c o n - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - p a g e 2 Congratulations on your purchase of the ASK-2 Ski Trainer .
- Page 3 ASK-2 SKI TRAINER withFLOOR STAND ASSEMBLY INSTRUCTIONS a) Lift up MAIN FRAME [004] Clear a 2 x Meter by 2.5 Meter working space before a) Lift the MAIN FRAME [004] from the carton and place it on the top of the carton lid as shown in the diagram below. ASK-2 Ski Trainer unpacking your b)AssembletheFLOORSTAND-FRAME[001]to...
- Page 4 ASK-2 SKI TRAINER withFLOOR STAND ASSEMBLY INSTRUCTIONS STEP5 STEP6 STEP7 Assemble the FLOOR STAND- HANDRAIL TOP[006] to Assemble FLOOR STAND - HANDRAIL BOTTOM RIGHT MAIN FRAME [004]with4xBOLT [317]+ 4xWASHER [007] and FLOOR STAND - HANDRAIL BOTTOM LEFT [008] to FLOOR STAND - FRAME [001] with 4 x BOLT [335B] + 8 x [416]withTOOLprovidedand tighten firmly.
- Page 5 ASK-2 SKI TRAINER withFLOOR STAND ASSEMBLY INSTRUCTIONS STEP8 STEP9 a) Tighten all BOLTS and WASHERS firmly with TOOL provided. b) Plug-in the AC ADAPTOR[715].
- Page 6 ASK-2 SKI TRAINER withFLOOR STAND PARTS LIST TENSION ADJUSTMENT BOLT PULLEY BRACKET...
- Page 7 ASK-2 SKI TRAINER withFLOOR STAND EXPLODED DRAWING ASK-2 STAND 201801...
- Page 8 ROPE WARNING CHECK ~ Last Assembly Procedure “BEFORE USE! ” Because the ROPE can fall off the PULLEYS it is extremely important to check all PULLEYS “BEFORE USE!”. STEP 1 STEP 2 STEP 3 Visually check that the ROPE is on the PULLEY. During transit the ROPE can fall off the PULLEYS so On the back of the machine remove both INSPECTION visually check that the ROPE is on the PULLEYS both...
