Starfire SF-2300S Fast Operation Manual

SF-2300S flame/plasma CNC system fast operation manual:：

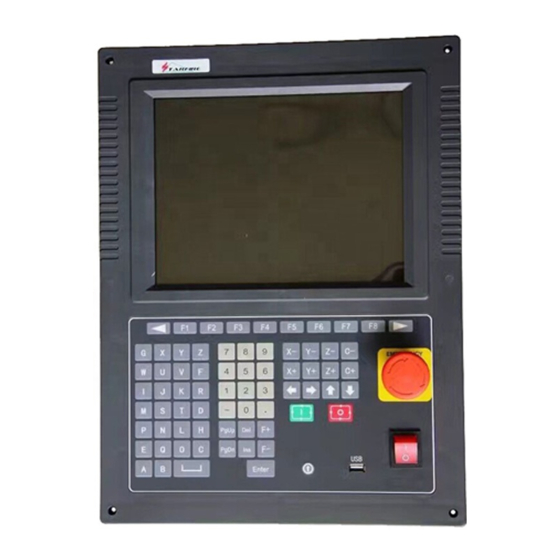

The first chapter system operation panel
【F1】-【F8】: Function keys, under different interface, with the corresponding prompt functions
【PgUP】 ：Under the code interface is up page key,
【PgDn】 ：Under the code interface is down page button；
【F↑】 ：to speed up the speed；
【F↓】 ：to slow down speed；
【1】—【9】 ：Numeric keys, According to the screen prompt control the corresponding output；
The enter key to confirm the input value or select the project；
SF-2300S-QG 切割机数控系统说明书（V2.0）
SF -2300S fast operation manual
Mobile cutting torch or move the cursor around；
Escape key to exit the current interface or deselect;
