Assembly Instructions Slant-Roof Greenhouset™ Help Text-line: 512-596-5200 EMAIL: support@roostandroot.com VOICE: 877-741-2667 Assembly Support ext 3 Assembly Overview... Standard Model Show Copyright ® Roost & Root, all rights reserved. This document is provided to you for your own personal limited use as a paying customer to assemble your greenhouse. We consider these instructions company intellectual property and are granting you limited personal use only.
Page 2

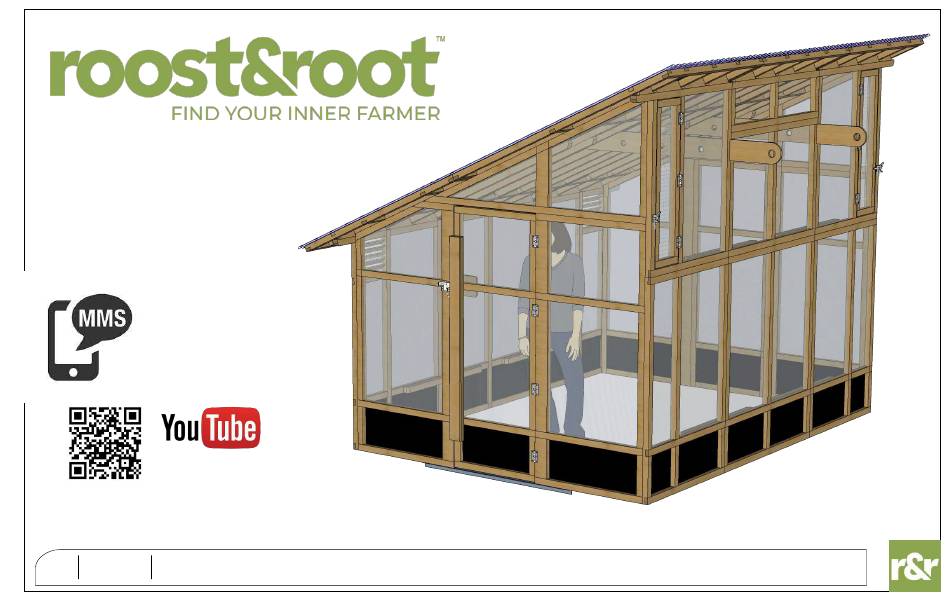

130" 143" Shown With Optional Solar Panel Page 01...
Reading this will help you... Understanding these concepts / conventions will help guide you Please Be Careful through the instructions. � Mating edges of parts to be flush and tight (when called for) will Designed to be assembled keep measurements in tolerance as the greenhouse grows in size.
Page 5
East to West or West to East For optimal light transit time you want your greenhouse situated East to West from side to side. If you bought the AVM Solar Ventilation System then the solar panel is optimally facing South with clear unobstructed view of the sun.
Page 6
E1 3 Inch T25 Screw :-) Here we go! Green arrow shows placement and direction 1.1 Door Threshold Stabilizer: Using the measurements provided in the prior sections, hammer into the ground the M6 angled aluminum door threshold stabilizer in the position where you want the center of your door to be. Either leg of the angle can be driven into the ground.
Page 7
It will make sense soon! 2.1 Assemble Front Left Corner: Using provided E1 3" T-25 screws, your drill and the provided T-25 bit in provided bit holder, assemble the front left corner L2 to F1 as shown in FIG 2. Focus on making bottom and side edges flush and then drive screws as indicated by the green arrows only tight enough to secure the pieces and not so tight as to bury the screw head too far.
Page 8
We're about to find out how flat your ground is... Flush Angle & Edge 3.1 Install Left Triangle Panel: Place the L4 triangle panel on top of L2 and L1 as illustrated and the using E1 3" T-25 screws, screw down L4 panel tight to L2 and flush in the order of the 1-3 green arrows as shown.
Page 9
The one time you'll use a tape measure... sorry :-( 4.1 Verify Door Top Opening: Take a measurement in the door opening at the top. It should be pretty much 26½ inches. If it's more than 1/4 inch off then verify front edge of L4 to L2 are flush and that trailing edge of L4 to L1 angle is aligned. See FIG 4A.
Page 10
Lets get this done... 3 panels at once! 5.1 Install Bottom F2 Panel: You know the drill. Using the provided T25 screws where indicated by the green arrows, attach F2 to F1 keeping top edge & faces as flush as possible.
Page 11
Here's how to identify which roof section is which... Looking down aerial view. Front Tall Wall Outside Right/Third Middle/Second Left/First Section Section Section Notch Notch Hinge Point Page 10 Back Short Wall Outside...
Page 12
The concept of the pre-assembled scissor roof... We didn't want you crawling up on the roof... General procedure... instructions on next page. 1. Stage Roof Section: Carry the roof section into the open end of the partially assembled Maybe 3 People structure.
Page 13
Move sidewall in and out as needed to make flush along entire edge. Fig 6A Left Side Flush Along Side View Flush Along Back - Move Wall in & Out As Needed Fig 6B Back View Overhang Install Roof Section 1 (left roof panel) Flush Along Front Edge 6.1 Slide Side &...
Page 14
Louvered Vent Panel Standard Model With AVM Option Slightly Different Treat As Same Treat As Same Take Note... Even though these parts look different in the coming steps if you ordered the AVM option, assembly is the same and is only shown for the standard model. Page 13...
Page 15
Let's pick up the pace E2 1 5/8 Inch T20 Screw Middle Section Roof Panel now that you know Edge Goes Over Top Of First Section Edge what's going on and bite off a few steps at a time. Blue arrow shows placement and direction Middle/Second Top Edge Flush Roof Section...
Page 16
Outside Front Fig 8B Make Seam Flush Fig 8C Outside Back Make Seam Flush Make Seam Flush A little roof structure work..still more to come. It's big! Fig 8A 8.1 Attach Middle Roof Section To Left Side Roof Section: Using T25 screws and provided bit, drive screws in the approximate locations as illustrated while pushing up on roof sections as needed to make sure bottom edges of each section are flush with one another.
Page 17
Flush Top Edge Top Edge Flush Fig 9B Fig 9A Flush Flush Bottom Finish up front wall and some of right wall... Finish up back wall and right wall... 9.1 Install F5 Panel: Using provided T25 screws install F5 panel as 9.4 Install B1 Panel: Using provided T25 screws install B1 panel as illustrated in illustrated in FIG 9A.
Page 18
Right Section Install Right Side On Top Of A little tricky! Right triangle and last roof panel. Roof Consistent Middle With Other Sections Section 10.1 Install R4 Panel: Referencing Step 3 on page 7 repeat the procedure from installing the left side triangle L4 panel, to install the right side R4 triangle panel. See FIG 10A.
Page 19
Flatten out the roof... Fig 11A Install Roof Stiffeners: From inside the greenhouse, you'll be installing 9 roof stiffeners onto the underside of the roof frame in the positions as indicated in FIG 11B. 11.1 Starting off at the left end, place the stiffener along the indicated longitudinal frame member (beveled ends facing down) where the middle of the stiffener is approximately along the middle of the hinge line (see FIG 11A) M4 Stiffener 11.2...
Page 20
Strengthen the front wall... Install Front Wall Stiffeners: From inside the greenhouse, you'll be installing 2 wider and two of the narrower wall stiffeners on the front wall of the greenhouse. The position of the stiffeners is indicated in FIG 12. 11.1 Position one of the narrower wall stiffeners centered over the lower wall seam (left or right) with beveled ends facing out, and attach to wall using T25 screws as indicated in the illustration.
Page 21
Strengthen the back wall... Install Back Wall Stiffeners: From inside the greenhouse, you'll be installing 2 of the narrower wall stiffeners on the back wall of the greenhouse. The position of the stiffeners is indicated in FIG 13. 11.1 Position one of the narrower wall stiffeners centered over the lower wall seam (left or right) with beveled ends facing out, and attach to wall using T25 screws as indicated in the illustration.
Page 22
Only tighten screws just enough to make snug and don't spin them and strip out the wood. Go slowly, or if your drill has a "clutch" setting, use the lowest number that will still tighten the screws. 14.1 Install Entry Door: The entry door has the door side half of the hinges pre-installed for you and the holes on the door frame side pre-drilled.
