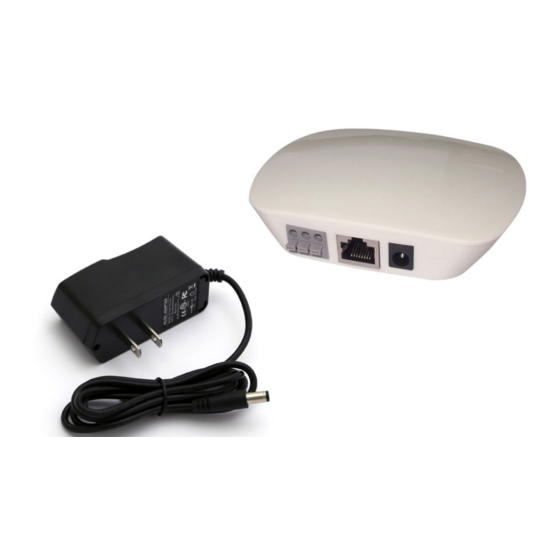

LED WiFi Controller Hub
AL-60-03-0008
•
Works with: Receiver for Wireless Remote Controllers
(AL-60-03-0004) or DMX Decoders (AL-60-03-0007)

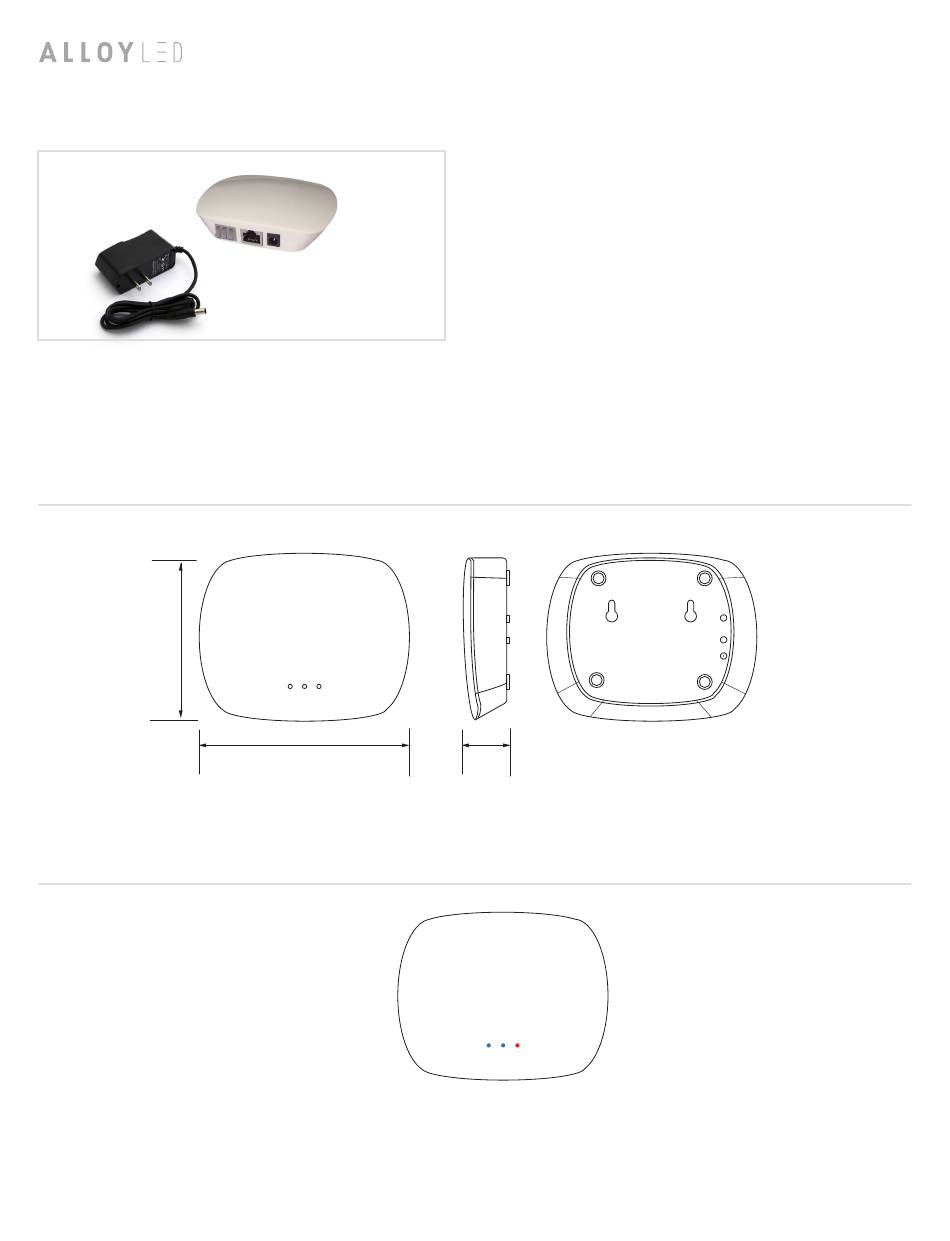

DIMENSIONS
3.34 in.
3.34 in.
INDICATORS
www.AlloyLED.com
page 1 of 7
4.32 in.
4.32 in.
Indicator Lights:
left (blue) = WiFi is transmitting
middle (blue) = error
right (red) = unit powered on
|
Call: 800.910.LEDS [5337]
Specifications subject to change without notice.
The LED WiFi Controller Hub works with the Receiver for
Wireless Remote Controllers (AL-60-03-0004 - sold separately)
or DMX Decoders (AL-60-03-0007 - sold separately) to provide
WiFi control of Radialux
®
smart phone. The WiFi Hub offers not only powerful, dynamic
color control options, but also a convenient way to control LED
lights by eliminating the need for a separate remote control. It
is easy to use with the included free smartphone app.
•
RF Frequency: 2.4G
•
Compatible Mobile Devices: Apple iOS, Android
•
Includes 12V DC plug-in adapter (for powering the hub itself)
•
Max. receivers per remote control: 20
0.95 in.
0.95 in.
|
Text: 510.400.6690
|
RGB and RGB-W Tape Lights using a
solutions@AlloyLED.com
v3
