ZANTINGH CO Quick Setup Manual

QUICK SET UP GUIDE ZANTINGH CO DETECTOR
Please read the provided operating and instruction manual
Telephone (reception)
Telephone (service department) +31 (0)297 219 125

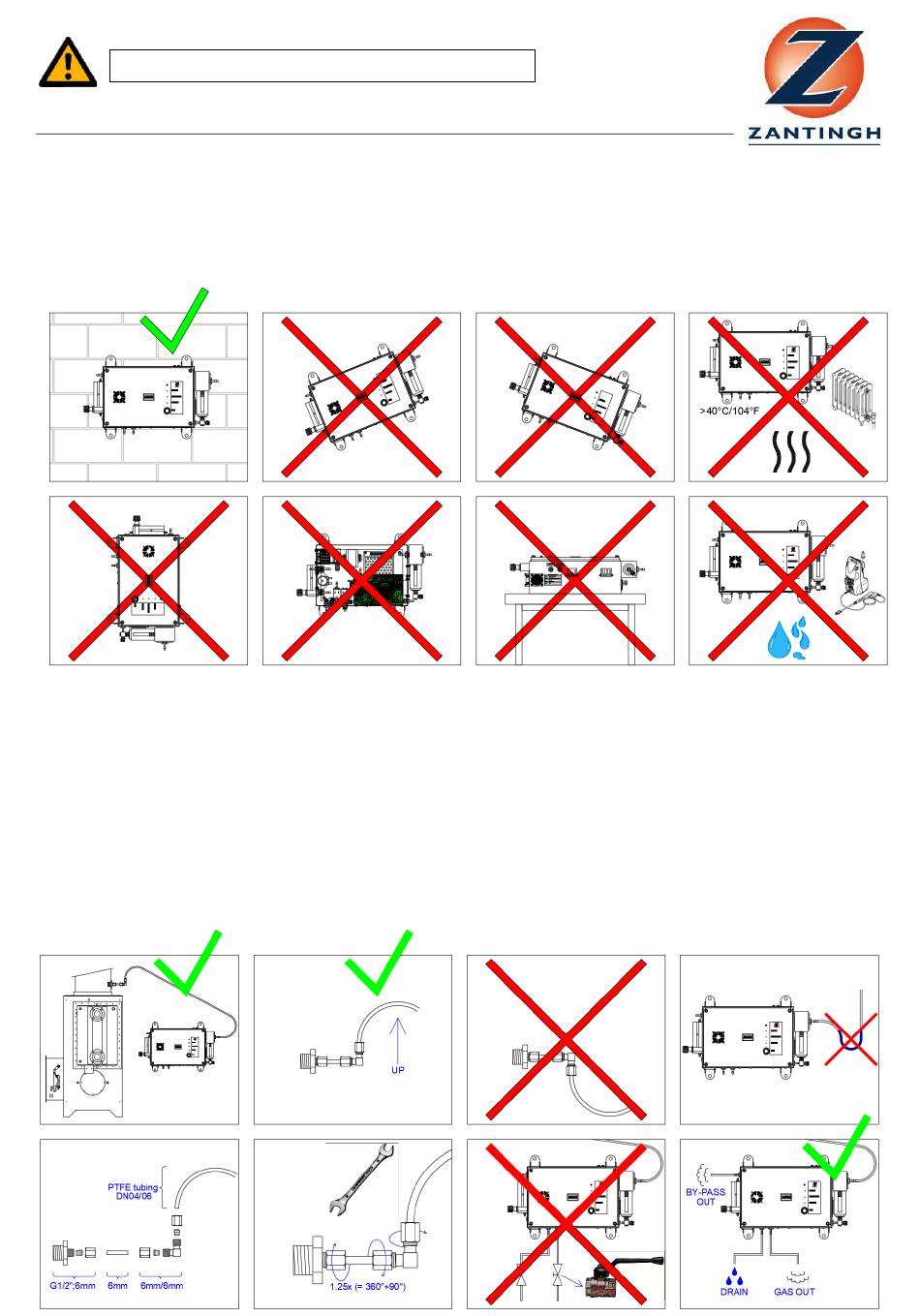

1. Mounting the device
•
mount upright and level to a solid wall, do not lay flat (on a horizontal surface)
•
do not install without its lit, always leave the device covered
•
do not install in a humid environment
•
do not install close to a heat source or in a place at a temperature below zero degrees
•
never suspend from a condenser or any other vibrating parts
2. Connecting the hose
•
make sure the sampling hose first goes upwards from the sampling point side, to prevent condensate to flow back to
the sampling point
•
prevent that a water seal is formed (water trap / siphon effect)
•
make sure the angled connector with compression fittings is assembled correctly, the connector should point upwards
•
tighten the nuts well to fix the compression fittings (rotate 1¼ times)
•
the used sampling hose should never be longer than 30 meters and not larger than Ø6mm
•
make sure that the following connections are always free:
- condensate drain
- sample gas out
- by-pass out
- calibration gas in
+31 (0)297 219 100
