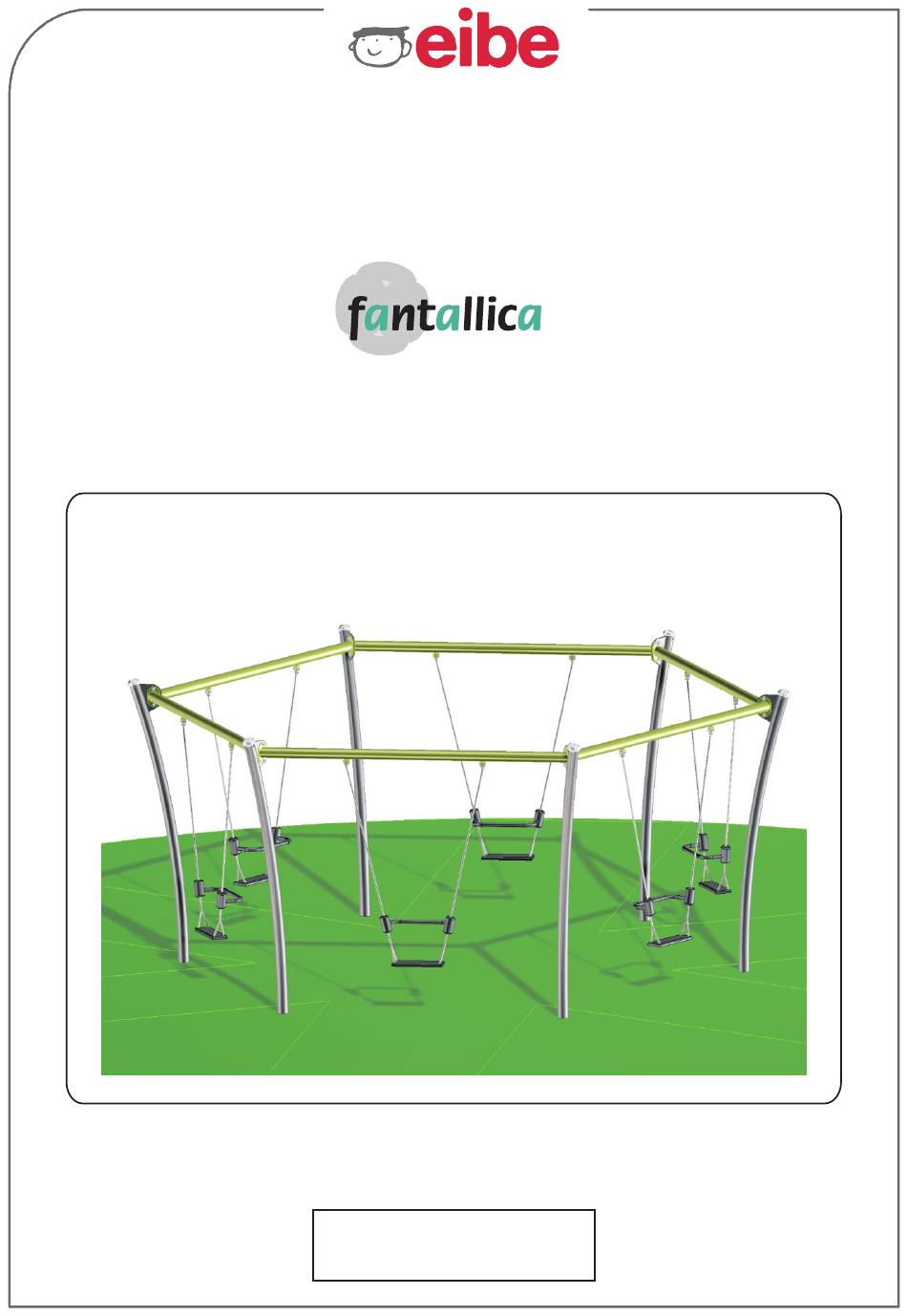

Article pass / Guarantee certificate
Scope of delivery • Ground work • Assembly • Maintenance
552024143..
Hexagon swing
Attention: Guarantee
Keep these documents in a safe place.
Please indicate the workshop order number (RM-Nummer) in all inquiries and complaints.
RM-Nummer:
1 / 10
No: UK-
1502-V-01 buck SCH F5 22
Advertisement
Summary of Contents for eibe fantallica 552024143 Series
- Page 1 Article pass / Guarantee certificate Scope of delivery • Ground work • Assembly • Maintenance 552024143.. Hexagon swing Attention: Guarantee Keep these documents in a safe place. Please indicate the workshop order number (RM-Nummer) in all inquiries and complaints. RM-Nummer: 1 / 10 No: UK- 1502-V-01 buck SCH F5 22...
-
Page 2: Certificate Of Warranty
µ grants the following warranty periods: The present information reflects the status as valid at the time this document was issued. For updated information, please see our website www.eibe.de • Wear parts are excluded from this warranty. On wear parts we grant a 2-year warranty. All wear parts included in the consignment are marked with the wear-part symbol <V>... - Page 3 Varnished components, however, and repeat orders. need to be repainted after two years, then every year. eibe resistant playground timber (rpt) is treated with a protective oil based surface finish. Due to enclosed pigments and special ingredients the natural process of weathering...
- Page 4 The wall thickness/corrosion on the inside of render daily checking necessary. In the pipes can be verified with the following test checked O operative inspection, eibe specifies how often procedure: which areas must be inspected on this piece of • Check your µ product for visible...
- Page 5 552024143.. checked O • Are the slide surfaces okay? Use our repair kits Laminat (article number 5 63 036 0) to touch up damages on the GRP slides and Oberfläche (article number 5 63 035 0) to revarnish the surface afterwards. The Oberfläche repair kit is absolutely sufficient for the elimination of minor damages.
-
Page 6: Equipment Data
552024143.. Equipment data: Surfacing inside the impact area: sand, gravel, bark mulch, wood chips, inpact-attenuating tiles Filling height for bulk material such as sand, gravel, wood chips and similar: 30 cm Maximum free fall height: 1,4 m Minimum equipment space: 12,4 x 12,4 x 3,2 m Required mounting space: 12,4 x 12,4 x 3,2 m... - Page 7 552024143.. Foundation plan showing in-situ concrete footings made from C20/25 concrete. (Leave foundations to harden for at least 14 days before mounting the equipment.) Impact-attenuating surface according to EN 1176: for outdoor playground equipment only! Please allow for a distance to other objects of at least 1.5 m all around the equipment (EN 1176).
- Page 8 552024143.. Scope of delivery SCH F5 BG01 (6x) 70609-0002 (4x) SCH F2 BG04 SCH F5 BG02 (6x) M 10 007-Z package circular 24x M12 DIN125-A13 12x M12 DIN985 12x M12x45 DIN912 71702-0001 (6x) 70421-55500312000 (6x) Part subject to wear (not part of our warranty) 8 / 10...
- Page 9 552024143.. M8 DIN986-VA M12x45 DIN 912 M8x30 DIN912-VA A8 DIN125-VA M12 DIN 125-A13 M12 DIN 985 SCH F5 BG01 SCH F5 BG02 Watch marking! Align Tighten all screw connections. Wait 14 days. Tighten all screw connections. 9 / 10...
- Page 10 Proof of maintenance and repair work 552024143.. Day of Person Verification Defects eliminated inspection responsible Defects (name, date, signature) 10 / 10...
