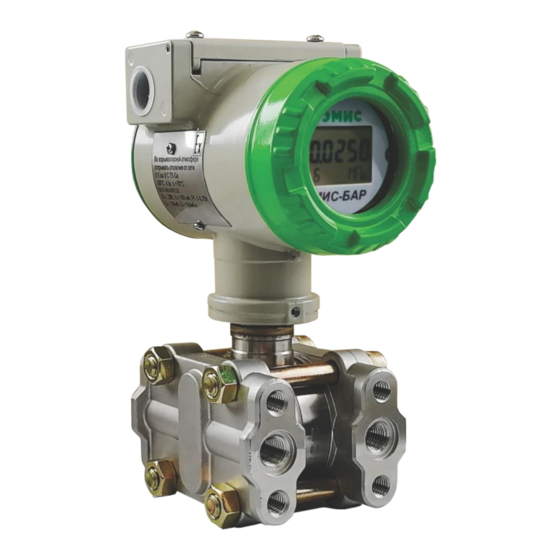

EMIS -BAR 103 Operation Manual

Pressure transmitters
Hide thumbs

Advertisement

Quick Links

Download this manual
EB 100.000.00 OM
Pressure transmitters
01.12.2020
EMIS-BAR
V2.0.15-01
Operation manual
High accuracy
Accuracy does not
depend on process
parameters
Ex-proof application
LCD display
In-built self-check
EMIS CJSC
Russia, Chelyabinsk

Advertisement

loading
Need help?

Need help?

Do you have a question about the EMIS-BAR 103 and is the answer not in the manual?

Questions and answers

Summary of Contents for EMIS EMIS-BAR 103

  • Page 1 EB 100.000.00 OM Pressure transmitters 01.12.2020 EMIS-BAR V2.0.15-01 Operation manual High accuracy Accuracy does not depend on process parameters Ex-proof application LCD display In-built self-check EMIS CJSC Russia, Chelyabinsk...
  • Page 2 11 PRECIOUS MATERIALS CONTENT  Appendix A List of reference documents  Appendix B Connection schemes  Appendix C Order sheet EMIS-BAR pressure transmitters  Appendix D Mounting kit order sheet  Dimensions and connection sizes of pressure transmitters ...
  • Page 3 OPERATION MANUAL Present Manual is used for studying the structure, operation, operating rules, maintenance and calibration of the pressure transmitters EMIS-BAR. This operation manual contains general technical parameters, directions for usage, calibration, transportation and storage, and other information to ensure correct operation of the pressure transmit- ter.
  • Page 4 DC output signal 4-20 mA overlapped with digital HART signal, as well as displaying the measured value on the display. EMIS-BAR pressure transmitters can be used in automatic control, adjustment and operation systems at various industries.
  • Page 5 EMIS-BAR OPERATION MANUAL 1.2.3 Overload pressure for absolute pressure and gauge pressure transmitters is specified in the Table 1. 1.2.4 Overload working pressure limit for differential and level pressure transmitters is speci- fied in the Table 2. Table 1 – Measuring ranges of gauge and absolute pressure transmitters (-100…100) kPa...
  • Page 6 EMIS-BAR OPERATION MANUAL Table 1 continued (0…25) kPa 0…25 kPa 0.83 kPa 25 kPa 1:30 (0…130) kPa 0…130 kPa 4.3 kPa 130 kPa 1:30 (0…500) kPa 0…500 kPa 16 kPa 500 kPa 1:30 (0…3) MPa 0…3 MPa 100 kPa 3 MPa 1:30 (0…10) MPa...
  • Page 7 EMIS-BAR OPERATION MANUAL Table 2 continued -25…25 kPa (-25…25) kPa 2.5 kPa 25 kPa 1:10 -60…60 kPa (-60…60) kPa 3 kPa 60 kPa 1:20 -160…160 kPa (-160…160) kPa 8 kPa 160 kPa 1:20 Differential pressure -500…500 kPa (-500…500) kPa 25 kPa...
  • Page 8 EMIS-BAR OPERATION MANUAL Table 4 - Limits of the permissible basic reduced error γ for transmitters with analog output sig- The limits of the permissible basic reduced error depending on the Application based on the measuring range adjustment coefficient. ��, % model r ≤...
  • Page 9 EMIS-BAR OPERATION MANUAL �� − �� н �� = �� + (�� − �� ) × √ н в н �� − �� в н where �� – input measured value - pressure difference in stated units. 1.2.11 General purpose industrial transmitter and ex-proof version with protection type "flame- proof enclosure"...
  • Page 10 EMIS-BAR OPERATION MANUAL 1.2.21 Additional reduced error ɣ caused by ambient temperature changes within working temperature range does not exceed the values given in the Table 6 for each 10°С. Table 6 - Limits of additional reduced error ɣ Additional reduced error to the measuring range caused by changes in Application based on the ambient temperature ɣ...
  • Page 11 EMIS-BAR OPERATION MANUAL 1.2.30 Mean time before failure shall not be less than 150000 hours and depends on mainte- nance as specified in the manual; 1.2.31 Transmitters are resistant to vibrations with frequency 10 to 2000Hz and acceleration not exceeding 98m/s2, refers to G2 group under GOST R 52931-2008.
  • Page 12 EMIS-BAR OPERATION MANUAL - current- carrying connections and electronic components are protected against environmental exposure with IP67 (IP68) enclosure complying with GOST 14254. For ЕхiaC, ExiaB, Exdia, RO, RVia versions input parameters of supply circuit and output signal circuits are shown in the Table 8.
  • Page 13 EMIS-BAR OPERATION MANUAL 0Ex ia IIB T4 Ga X Ex ia IIIB 135°C Da - 60 ≤ t ≤ + 85 ≤ 28 В, l ≤ 100 mA, P ≤ 0,7 W, = 0,6 µH = 30 nF, L 0Ex ia IIB T5 Ga X Ex ia IIIB 95°C Da...
  • Page 14 EMIS-BAR OPERATION MANUAL 1.4 Configuration and operation 1.4.1 Transmitter structure is shown in the fig.2. a) Transmitter with in-line mount connection b) Transmitter with traditional mount connection Fig.2 - Pressure transmitter structure...
  • Page 15 EMIS-BAR OPERATION MANUAL Pressure transmitter consists of pressure sensor and electronic unit (fig.2). Electronic unit is at- tached to the threaded socket of the pressure sensor. Transmitter includes: electronic board (4), sealed covers (2), LCD unit (5), RFI filters (3), terminal board (8), adjusting buttons (9).
  • Page 16 EMIS-BAR OPERATION MANUAL Figure 4 - Input buttons Follow the operating rules below:  To configure the device using the keyboard, unlock the input buttons.  The digital parameters of the device are always changed by successively increasing the value, starting from the lowest digit of the displayed parameter Hold «↑»...
  • Page 17 EMIS-BAR OPERATION MANUAL Adjustment Parameter Description via HART keyboard Upper limit of Setup the upper limit without reference pressure. measurement Setup zero value when no external pressure ap- Zero point plied Fixed value of Setup fixed value of current 3,6; 4; 12; 20; 22;...
  • Page 18 EMIS-BAR OPERATION MANUAL Table 11: continued Menu Parameter Indication in Russian Indication in English line Setup lower pressure limit in no- pressure mode Setup upper pressure limit in no- pressure mode Zero point adjustment Fixed current value Emergency current value...
  • Page 19 EMIS-BAR OPERATION MANUAL Table 11: continued Menu Parameter Parameter Indication in Russian Indication in English line Lineary-increasing Lineary-decreasing Linear until speci- Output signal fied point, then mode square 4mA until specified point, then square Linear kinked until specified point, then square...
  • Page 20 EMIS-BAR OPERATION MANUAL Table 11: continued Menu Parameter Indication in Russian Indication in English line Pressure Pressure value Output current indication Percentage of measuring range Measuring units (Table 12) Russian Menu language English 1.5.4 Adjustment using buttons for LCD version:...
  • Page 21 EMIS-BAR OPERATION MANUAL 02 - Setup lower measuring limit in no-pressure mode. Follow the steps below to setup lower measuring limit in no-pressure mode:  Press "M" button to enter menu line 02 (Table 11).  Select pressure value complying with lower measuring limit using «↑» and «↓» buttons.
  • Page 22 EMIS-BAR OPERATION MANUAL 08 - Output signal mode. Follow the steps below to adjust the curve, which shows the dependence of output current on medium pressure:  Press "M" button to enter menu line 08 (Table 11).  Use «↑» and «↓» buttons to select output signal mode: LIN-UP - lineary-increasing (1.2.9, fig.6);...
  • Page 23 EMIS-BAR OPERATION MANUAL  Simultaneously press buttons «↑» and «↓»to save changes. Static parameter of SQLIN function is linear until specified application point, then turns to square root function. Linear segment is identical with LIN-UP function. for SQOUT function the current value is fixed as 4mA until application point.
  • Page 24 EMIS-BAR OPERATION MANUAL Table 12: continued Indication at the display, Rus- Pressure units Indication at the display, English sian inch H2O (at +20°С) m H2O (at +4°С) mm H2O (at +4°С) inch H2O (at +4°С) Torr 12 - Menu language Follow the steps below to select menu language: ...
  • Page 25 EMIS-BAR OPERATION MANUAL 1.6 Operation via HART protocol. HART digital signal overlaps analog signal, but does not influence its constant component. HART-protocol allows two master devices be connected to the system: control system (PC with HART modem) and manual HART-communicator. These two devices transfer data to the slave by dividing communication channel usage time so that transmitter can receive commands from both of them.
  • Page 26 EMIS-BAR OPERATION MANUAL Table 13: continued Byte Digit Description Class Digit state No LCD Caution Output current in saturation state 3.8mA - lower saturation limit, 20.5mA - upper Caution saturation limit. DAC overheating (T ≥ +100°C) Error Output current does not corresponds to DAC...
  • Page 27 EMIS-BAR OPERATION MANUAL 1.9.2 For ex-proof versions a special plate is attached to the transmitter as shown in the Table 9. As well the following:  special ex-proof sign according to the Annex 2 of TR CU 012/2011;  Common Mark of Products Circulating in the Market of the Customs Union mem- ber-states;...
  • Page 28 EMIS-BAR OPERATION MANUAL 2 APPLICATION 2.1 Operating features 2.1.1 Transmitter are delivered in the manufacturer tare. Check tare for damages after receiving the goods. In case of any damages to the package, make a report to indicate damage severity. 2.1.2 In winter time, keep boxes unpacked in warm premises for 12 hours.
  • Page 29 EMIS-BAR OPERATION MANUAL Attention Follow low and hight pressure chambers connection order for differential pressure transmitter (marked as: L for low pressure, H for high pressure). 2.2 Mounting requirements 2.2.1 General rules of mounting Mounting (dismantling), electric connection, adjustment, operation shall be performed by by du- ly authorized and electrically trained personnel who carefully read present manual.
  • Page 30 EMIS-BAR OPERATION MANUAL 2.2.4 Electrical installation For electrical installation please follow recommendations below: - Do not place transmitter communication lines near power cables; - We recommend to place cables and wires between transmitter and control gauges inside metal hoses or metal pipes;...
  • Page 31 EMIS-BAR OPERATION MANUAL Acceptance date should be specified in the data sheet and approved by an authorized person. 2.4 Connection to HART 2.4.1 Figure 12 shows simple communication network with chain connection to the current loop using two-wire line. Figure 12 - Connection of HART transmitters HART communication device (Configurator) shall be connected to A and B points or in parallel with resistor (B point).
  • Page 32 EMIS-BAR OPERATION MANUAL 2.4.4. If "point-to-point' scheme is applied (see fig.12, 13), the main variable can be transferred in both analog and digital form. For multipoint scheme, analog data is not available and variable trans- ferred only in digital form.
  • Page 33 EMIS-BAR OPERATION MANUAL 5.2. Table 16 shows the main malfunctions of the electronic unit (error indicated in LCD) and recommendations for their remedy. Table 16 - List of failures codes Error Description Remedial procedure ADC calibration coefficient Err-1 Send to manufacturer for pressure characterization...
  • Page 34 EMIS-BAR OPERATION MANUAL 6 PERSONELL ACTIONS IN CASE OF ACCIDENT, CRITICAL FAILURE OR BREAKDOWN Stop medium supply in case of failure or breakdown. 7 LIMIT STATE CRITERIA - reach of specified values - violation of geometry and elements size preventing from normal operation;...
  • Page 35 EMIS-BAR OPERATION MANUAL Annex A (informative) LIST OF REFERENCE DOCUMENTS 1. GOST 22520-85 Transmitters for pressure, vacuum and difference pressure measurement with ana- log output signals General specifications. 2. GOST Р 52931-2008 Instruments for process monitoring and control. General specifications.
  • Page 36 EMIS-BAR OPERATION MANUAL Annex B (normative) CONNECTION SCHEMES Fig.B.1 - Terminal block view (1 – ground; 2 – current loop connection; 3 – test clamps 4-20 mA) Fig.B.2 - Two point connection to HART modem Fig.B.3 - Connection using zener barrier...
  • Page 37 EMIS-BAR OPERATION MANUAL SCH14, SCH22 Connection scheme Terminal No SCH14, SCH22 «+» «+» «-» «-» Grounding Grounding Fig.B.5 - Terminal No with connection codes GSP, SCH14, SCH22...
  • Page 38 EMIS-BAR OPERATION MANUAL Annex C (normative) ORDER SHEET EMIS-BAR PRESSURE TRANSMITTERS Table B.1 - Order sheet for in-line mount connection transmitters Item name EMIS- Pressure transmitters Model gauge pressure transmitter, vacuum pressure; in-line mount absolute pressure transmitter; in-line mount connection...
  • Page 39 EMIS-BAR OPERATION MANUAL Connection to the pipeline М20 М20х1,5 male thread G1/2 G1/2 male thread 1/2NPTF 1/2NPT female thread 1/2NPT 1/2NPT male thread Special version Transmitter material Aluminum Stainless steel Aluminum (special coating) LCD display w/o LCD with LCD in Russian...
  • Page 40 EMIS-BAR OPERATION MANUAL EMIS-BAR in-line mount connection symbols: Pressure transmitter EMIS-BAR 103-H-(-100...100)кPа-0,1%-SS1-M20-Al-LCDe-M1-MS- LP-SC Description: 103- gauge pressure, vacuum pressure transmitter; in-line mount connection; H - digital protocol 4-20mA/HART; Exd - Ex-proof enclosure 1Ex d IIC T6…T4 Gb X; (-100…100)кPа - measuring range (-100…100) kPa;...
  • Page 41 EMIS-BAR OPERATION MANUAL Table B.2 - Order sheet for traditional-mount connection transmitters Item name Application based on the version EMIS- Pressure transmitters Model gauge pressure transmitter, vacuum pressure; traditional- mount connection absolute pressure transmitter; in-line mount differential pressure transmitter; traditional-mount connection...
  • Page 42 EMIS-BAR OPERATION MANUAL Wetted parts material Stainless steel 316L for all Hastelloy HC-276 (for diaphragm Hastelloy HC-276) 105, 143 Hastelloy HC-276 (for diaphragm - 316L with gold coating) 105, 133, 143 Hastelloy HC-276 (for diaphragm - Tantalum) Filling fluid Cleaning measuring rate...
  • Page 43 Calibration sheet is attached to the data sheet. EMIS-BAR traditional-mount connection symbols: Pressure transmitter EMIS-BAR 143-H- ExiaB -(-160…160)кPа-0,065%-SS1-1/4F-Al-M1-MS- B316-SC Description: 143- gauge pressure, vacuum pressure transmitter; traditional-mount connection;...
  • Page 44 EMIS-BAR OPERATION MANUAL Table B.3 - Order sheet for special versions of traditional-mount transmitters Item name EMIS- Pressure transmitters Model Application based on the version Pressure transmitter for level measurement with remote dia- phragm seal Pressure transmitter for level measurement with remote ex-...
  • Page 45 EMIS-BAR OPERATION MANUAL Accuracy 0,074% 0,074% 163, 164 0,10% 0,10% 163, 164, 173, 174 0,15% 0,15% 0,20% 0,20% for all 0,25% 0,25% 0,50% 0,50% Material Diaphragm material Stainless steel 316L Hastelloy HC-276 Tantalum Monel 316L with gold-plated Nickel Filling fluid...
  • Page 46 EMIS-BAR OPERATION MANUAL Application depends on flange Flange sealing type type Raised face A02; A05; D1,6; D4,0 Male face Female face A02; A05; A11; A15; Tongue D1,6; D4,0; D6,3; D10; D16 for all Groove For oval gasket A02; A05; A11; A15; A26; A40...
  • Page 47 EMIS-BAR OPERATION MANUAL Capillary length in the positive chamber W/o capillary 1 meter 2 meters 3 meters 4 meters 5 meters 6 meters 7 meters 8 meters 173..188 9 meters 10 meters 11 meters 12 meters 13 meters 14 meters 15 meters Х...
  • Page 48 EMIS-BAR OPERATION MANUAL Pressure sensor bolts material Carbon steel with protective coating 163, 164, 183…188 B304 B316 Transmitter lightning protection Lightning protection High-temperature version: With a radiator between the transmitter housing and the dia- 173, 174, 183…188 phragm, for use with a measuring medium temperature of up to 200 °...
  • Page 49 EMIS-BAR OPERATION MANUAL Symbols for EMIS-BAR special version of traditional-mount connection pressure transmitter: Pressure transmitter 183-H-(-60...60)kPa-0,15%-S1-CD4,0316L-S101/01-Al-NS-N1-SC Description: 183 - differential pressure transmitter with remote diaphragm seals (static pressure up to -50 kPa) H - digital protocol 4-20mA/HART; (-60…60)кPа - measuring range (-60…60) kPa;...
  • Page 50 EMIS-BAR OPERATION MANUAL Table B.4 - Order sheet for transmitters with fully-welded diaphragm seal Item name EMIS- Pressure transmitters Version Gauge pressure transmitter with fully-welded diaphragm seal Digital protocol from 4 to 20 mA/HART Explosion protection No ex-proof Intrinsically safe circuit: For gas hazardous environments: 0Ex ia IIB T6…T4 Ga X;...
  • Page 51 10 mg / m3, in an emergency mode- up to 100 mg / m3 during 1 hour. The content of dissolved hydrogen sulfide in the liquid is up to 6% by volume. Symbols for EMIS-BAR pressure transmitter with fully-welded diaphragm seal: Pressure transmitter EMIS-BAR 113-H-(0...1,6)MPa-0,10%-SS1-М44W-Al-LCDe-М1-MS- Description: 113- gauge pressure transmitter, vacuum pressure transmitter;...
  • Page 52 EMIS-BAR OPERATION MANUAL Annex D (normative) EMIS-BAR MOUNTING KIT ORDER SHEET Application Item name based on the model Mounting kit for Mounting kit EMIS- Transmitter version See Table 1.1 Nipple with cap nut Parts Material SМ1 12Х18Н10Т Nipple with cap nut for connection to the...
  • Page 53 EMIS-BAR OPERATION MANUAL Application Connection adapter based on the model Medium inlet-outlet thread Material К1/2 female thread - М20х1,5 female thread К1/4 female thread - М20х1,5 female thread 1/4NPT male thread - М20х1,5 female thread 1/2NPT male thread - М20х1,5 female thread 1/4NPT female thread - М20х1,5 male...
  • Page 54 EMIS-BAR OPERATION MANUAL Application Counter flange based on the model Flange size DN 25 (1 inch) DN 50 (2 inch) DN 80 (3 inch) DN 100 (4 inches) Х Special order Flange type Max pressure class 150, ASME B16.5 2 MPa class 300, ASME B16.5...
  • Page 55 EMIS-BAR OPERATION MANUAL Application depends on gasket Gasket material type 09CS 09G2S Oval gasket 12Х18Н10Т Thermal packed graphite Spiral wound gasket General-purpose polystyrene Flat gasket Х Special order Fastener material Steel 20 Stainless steel 12Х18Н10Т Х Special order Application Flushing ring...
  • Page 56 SW - spirally-wounded gasket; GR - gasket material is thermal packed graphite; CS - fastener material is Steel 20. Mounting kit for EMIS-BAR 163 – CA05 ver.F/E 1/2NPT2 C - flushing ring size is DN80; A05 - ANSI 300 type;...
  • Page 57 EMIS-BAR OPERATION MANUAL Annex E (normative) DIMENSIONS AND CONNECTION SIZES OF PRESSURE TRANSMITTERS Fig.E.1 - Dimensions and connection sizes of in-line mount pressure transmitters EMIS-BAR 103 and 123...
  • Page 58 EMIS-BAR OPERATION MANUAL Fig.E.2 - Dimensions and connection sizes of traditional-mount pressure transmitters EMIS-BAR 105 and 133...
  • Page 59 EMIS-BAR OPERATION MANUAL Fig.E.2 - Dimensions and connection sizes of traditional-mount pressure transmitters EMIS-BAR 143 and 193.
  • Page 60 EMIS-BAR OPERATION MANUAL Fig.E.4 - Dimensions and connection sizes of in-line mount pressure transmitters EMIS-BAR 113 with fully-welded diaphragm seal...
  • Page 61 EMIS-BAR OPERATION MANUAL Fig.E.5 - Dimensions and connection sizes of special version of traditional-mount pressure transmitters EMIS-BAR 163. Flange sizes are given in the pages 71-74.
  • Page 62 EMIS-BAR OPERATION MANUAL Fig.E.6 - Dimensions and connection sizes of special version of traditional-mount transmitters EMIS-BAR 164. Flange sizes are given in the pages 71-74.
  • Page 63 EMIS-BAR OPERATION MANUAL Fig.E.7 - Dimensions and connection sizes of special version of traditional-mount pressure transmitters EMIS-BAR 173 and 175. Flange sizes are given in the pages 71-74.
  • Page 64 EMIS-BAR OPERATION MANUAL Fig.E.8 - Dimensions and connection sizes of special version of traditional-mount pressure transmitters EMIS-BAR 174 and 176. Flange sizes are given in the pages 71-74.
  • Page 65 EMIS-BAR OPERATION MANUAL Fig.E.9 - Dimensions and connection sizes of special version of traditional-mount pressure transmitters EMIS-BAR 183 and 186. Flange sizes are given in the pages 71-74.
  • Page 66 EMIS-BAR OPERATION MANUAL...
  • Page 67 EMIS-BAR OPERATION MANUAL Fig.E.11 - Dimensions and connection sizes of special version of traditional-mount pressure transmitters EMIS-BAR 184 and 187. Flange sizes are given in the pages 71-74.
  • Page 68 EMIS-BAR OPERATION MANUAL...
  • Page 69 EMIS-BAR OPERATION MANUAL Fig.E.13 - Dimensions and connection sizes of special version of traditional-mount pressure transmitters EMIS-BAR 185 and 188. Flange sizes are given in the pages 71-74.
  • Page 70 EMIS-BAR OPERATION MANUAL...
  • Page 71 EMIS-BAR OPERATION MANUAL DIMENSIONS AND CONNECTION SIZES OF FLANGES Dimensions and connection sizes of flanges with remote diaphragm seal according to DIN EN 1092-1 Pressure Number Hole Flange size class of bolts, n diameter, d PN10/16 PN25/40 DN25 PN63 PN100...
  • Page 72 EMIS-BAR OPERATION MANUAL Dimensions and connection size of flanges with remote extended diaphragm seal according to DIN EN 1092-1 Pressure Number Hole Flange size class of bolts, n diameter, d PN10/16 PN25/40 DN50 PN63 PN100 PN160 PN10/16 PN25/40 DN80 PN63...
  • Page 73 EMIS-BAR OPERATION MANUAL Dimensions and connection size of flanges with remote diaphragm seal according to ASME B16.5 Pressure Number Hole Flange size class of bolts, n diameter, d 79.4 12.7 DN25 88.9 15.9 (1 inch) 88.9 17.5 101.6 28.6 120.7 19.5...
  • Page 74 EMIS-BAR OPERATION MANUAL Dimensions and connection size of flanges with remote extended diaphragm seal according to ASME B16.5 Pressure Number Hole Flange size class of bolts, n diameter, d 120.7 19.5 22.7 32.4 DN50 (2 inches) 165.1 45.1 1500 165.1 45.1...
  • Page 75 EMIS-BAR OPERATION MANUAL Annex F (normative) MOUNTING KIT nipple with cap nut (order code SM1, CSM1) Item Parts Pcs. Nipple for outer di- ameter of the pipe 14mm (material de- pends on the speci- fied code in the or- der sheet) Cap nut М20х1,5...
  • Page 76 EMIS-BAR OPERATION MANUAL Mounting flange with nipple (order code SF3, CSF3) Item Parts Pcs. Mounting flange with nipple hole Bolts M10 Rubber sealing ring Nipple for outer di- ameter of the pipe 14mm (material de- pends on the speci- fied code in the order...
  • Page 77 EMIS-BAR OPERATION MANUAL Adapter Inlet female thread - outlet female thread Inlet male thread - outlet female thread Inlet male thread - outlet male thread...
  • Page 78 EMIS-BAR OPERATION MANUAL Counter flange Counter flange size according to mounting kit order sheet (Annex D). Flushing ring Flushing ring size according to mounting kit order sheet (Annex D).
  • Page 79 EMIS-BAR OPERATION MANUAL Bracket Application based Name Parts Item Pcs. on the model Horizontal bracket, steel (A) for all Steel bracket mounting kits Steel hook for horizontal 103, 113, 123, Bolt М8х16 DIN 933 steel 8.8 bracket type 1, 173, 174, 175, Nut М8 DIN 934 steel...
  • Page 80 EMIS-BAR OPERATION MANUAL Application based Name Parts Item Pcs. on the model Corner bracket, steel (C) for all Steel bracket Steel hook mounting kits Bolt М8х16 DIN 933 steel 8.8 for corner 103, 113, 123, Nut М8 DIN 934 steel...
  • Page 81 EMIS-BAR OPERATION MANUAL Annex G (normative) EXPLOSION PROTECTION SCHEME 1 - Transmitter; 2,3 - Cover; 4 - Glass (LK7); 5 - sealing ring 025-030-25-3 GOST 9833; 6 - sealing ring 070-075-25-3; 7 - external ground clamp; 8 - pressure receiver;...
  • Page 82 EMIS-BAR OPERATION MANUAL...
  • Page 83 EMIS-BAR OPERATION MANUAL Annex H (normative) Installation on a bracket INSTALLATION ON A BRACKET Fig.I.1 - Horizontal bracket installation of in-line mount transmitter Fig.I.2 - Horizontal bracket of traditional-mount pressure transmitter...
  • Page 84 EMIS-BAR OPERATION MANUAL Fig.I.3 - Angle bracket installation of in-line mount transmitter Fig.I.4 - Angle bracket installation of traditional mount pressure transmitter...
  • Page 85 EMIS-BAR OPERATION MANUAL Annex I (normative) LIST OF CABLE GLANDS Protec- tion level Order according Application of sheet Description Material to GOST ex-proof models code 14254 and high- Cable glands with thread size М20х1,5 General indus- non-armoured cable, cable crimping diameter...
  • Page 86 EMIS-BAR OPERATION MANUAL Protec- tion level Order according Application of sheet Description Material to GOST ex-proof models code 14254 and high- General indus- non-armoured cable 6.5 - 14mm in flexible trial version, MH18s Stainless steel IP66/68 metal hose RZTS18 (diameter 17.5...21mm)
  • Page 87 EMIS-BAR OPERATION MANUAL Protec- tion level Order according Application of sheet Description Material to GOST ex-proof models code 14254 and high- General Plug connection: plug 2РМ22, socket 2РМ22 SCH22 Aluminum IP65 industrial, and straight pipe with shielded nut ExiaB, ExiaC...
  • Page 88 EMIS-BAR OPERATION MANUAL Protec- tion level Order according Application of sheet Description Material to GOST ex-proof models code 14254 and high- crimping diameter 7.2 ... 11.7 mm ExiaB, ExiaC, Exd, Exdia General indus- Non-armoured cable trial version, NH15s 6.5...14mm diameter in flexible...
  • Page 89 EMIS-BAR OPERATION MANUAL www.emis-meter.com Maintenance department EMIS CJSC Sales department +7 (351) 729-99-12 Ex. 741, 744, 756, 763. +7 (351) 729-99-12 support@emis-kip.ru (multichannel) Electronic and Mechanical Measuring Systems +7 (351) 729-99-16 Marketing department sales@emis-meter.com Lenin Avenue 3, office 308, Chelyabinsk Tel.
