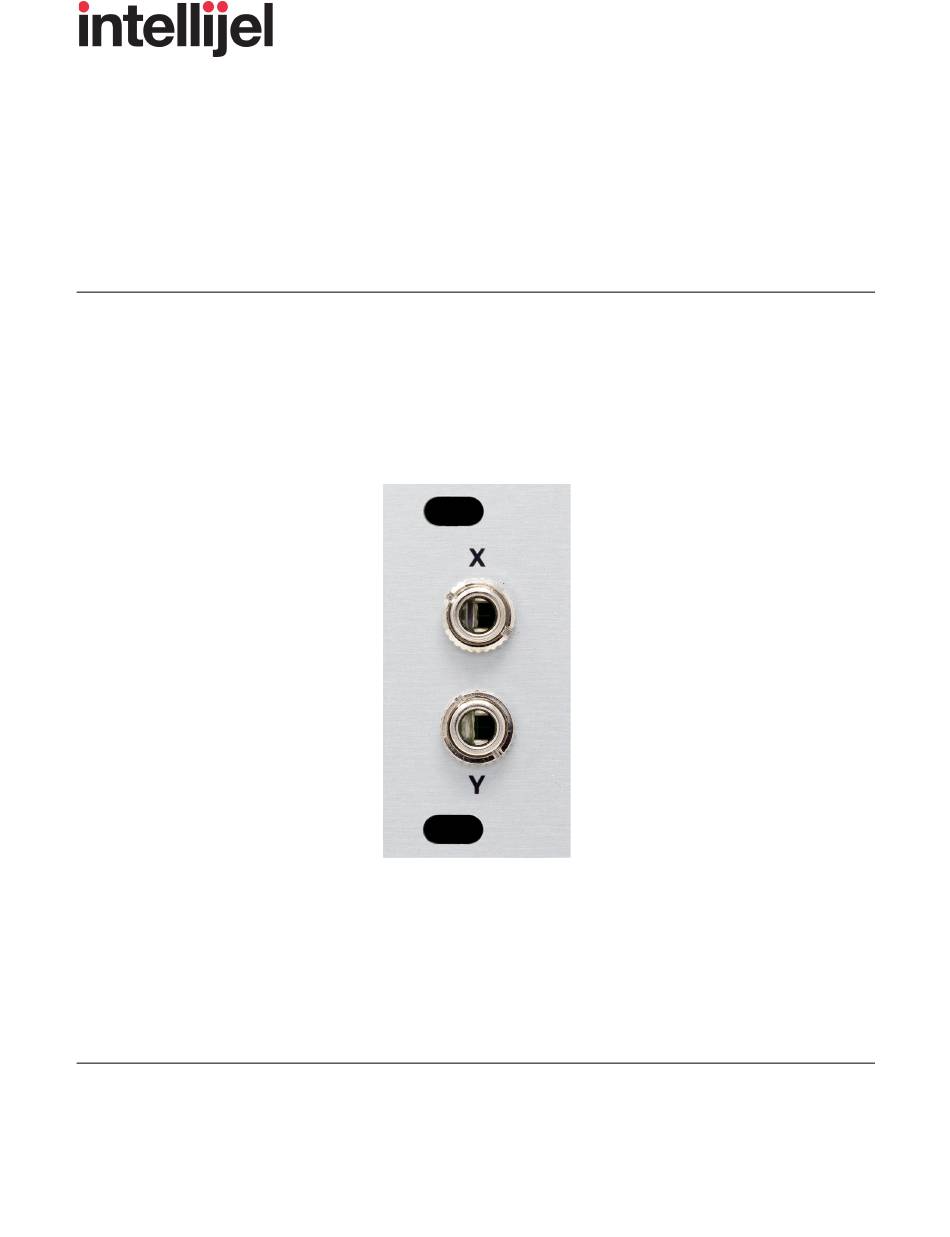

- Page 1 XY I/O 1U Link Connector Access Jacks Manual (English) Revision: 2021.05.05...
-
Page 2: Table Of Contents
TABLE OF CONTENTS COMPLIANCE INSTALLATION OVERVIEW FRONT & BACK PANELS OTHER USES TECHNICAL SPECIFICATIONS XY I/O 1U Manual... -
Page 3: Compliance
(2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Intellijel Designs, Inc. could void the user’s authority to operate the equipment. Any digital equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. -
Page 4: Installation
INSTALLATION This module is designed for use within Intellijel-standard 1U row, such as contained within the Intellijel 4U and 7U Eurorack cases. Intellijel’s 1U specification is derived from the Eurorack mechanical specification set Doepfer that is designed to support the... -
Page 5: Overview
OVERVIEW Use this module to tap into the 3-pin LINK connector used in several Intellijel products, including Mixup , Switched Mult 1U , Pedal I/O and the various Palette and 7U cases (NOTE: 7U cases requires a 2nd Generation Audio Jacks Board). - Page 6 Example 1: Mixup - Connecting JP1 to the CHAIN IN on an Intellijel Mixup gives you an extra stereo input through the front panel X jack, where X TIP = LEFT CH of Mixup, and X RING = RIGHT CH of Mixup.
-
Page 7: Other Uses
ER-301 (3Pin) to the 16-N Faderbank (TRS) NOTE: Mileage may vary with I2C, depending on the hardware involved. TECHNICAL SPECIFICATIONS Width 4 hp Maximum Depth 24 mm Current Draw No current draw - module is passive XY I/O 1U Manual...
