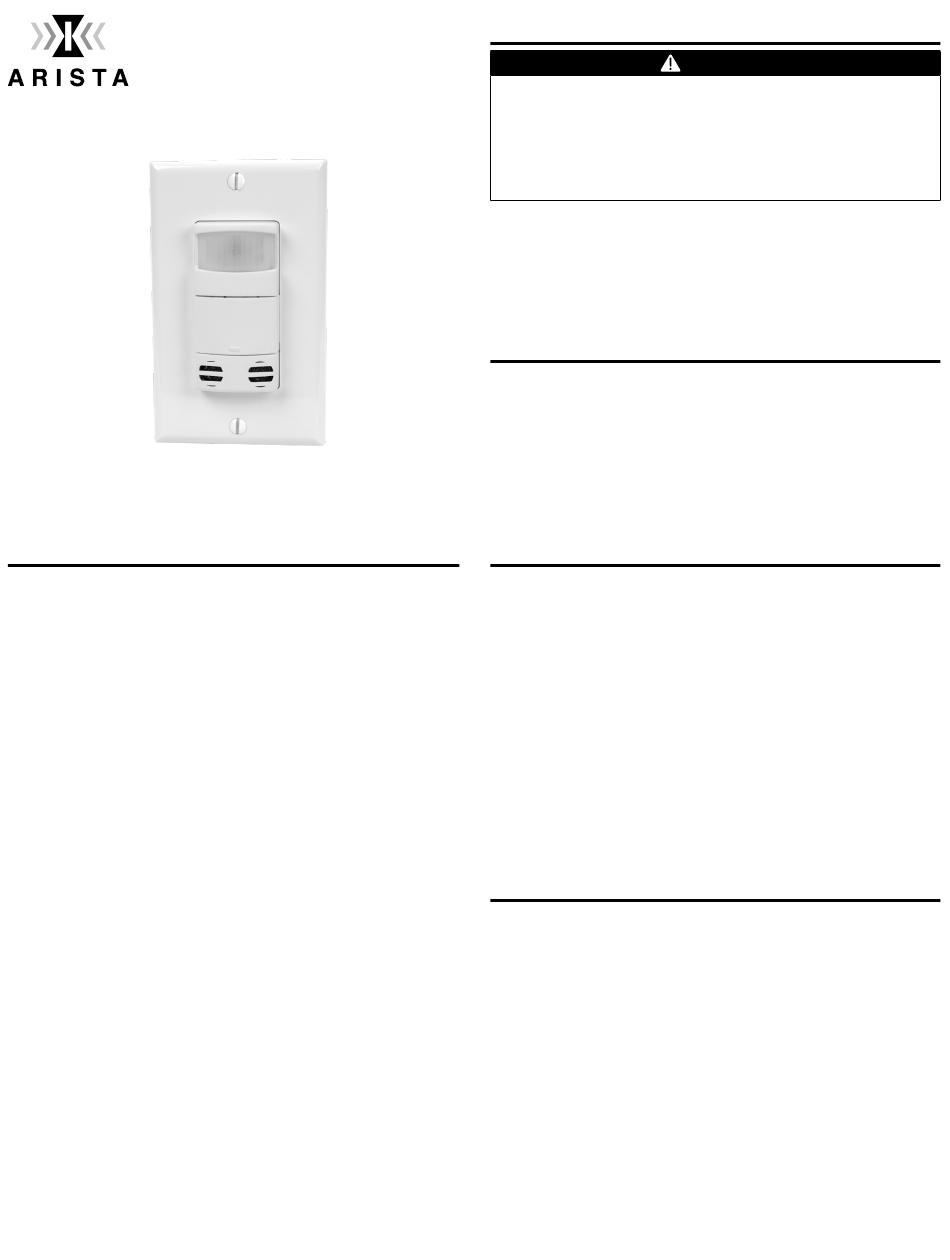

Arista ALC-DT-BT-WH Manual

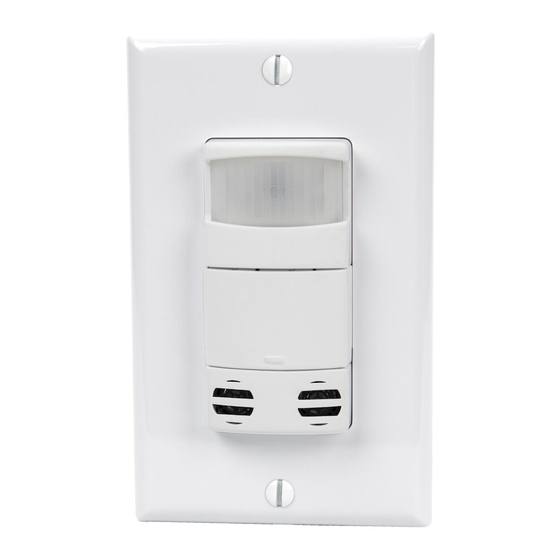

ALC-DT-BT-WH Dual Tech In-Wall

COMPLIANCE

This device complies with part 15 of the FCC. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC NOTE: The manufacturer is not responsible for any radio or TV
interference caused by unauthorized modifications to this equipment.
Such modifications could void the user's authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Important note: To comply with the FCC RF exposure compliance
requirements, no change to the antenna or the device is permitted.
Any change to the antenna or the device could result in the device
exceeding the RF exposure requirements and void user 's authority to
operate the device.
This Class B digital apparatus complies with ICES-005 of Canada.
Occ/Vac Sensor Bluetooth

WARNINGS/SAFETY

Risk of Fire or Electric Shock
• Disconnect power at the circuit breaker(s) or disconnect switch(es) before installing or
servicing.
• Installation and/or wiring must be in accordance with national and local electrical code
requirements.
• Only use copper conductors rated 105°C minimum.
• For INDOOR USE ONLY.

RATINGS

1
Operating Voltage - 120-277 VAC, 60 Hz
Operating Temperature - 0° - 55° C (32° - 131° F)
Dimensions - 2 3/4" H x 1 3/4" W x 1 2/3" D
Type 1 action, Operating Control, Pollution degree PD2, Impulse Voltage 4000V
1

PRODUCT OVERVIEW

The ALC-DT-BT-WH is a Dual Technology (PIR and Ultrasonic) Sensor
designed for use with the ARISTA Lighting Controls System by
Intermatic and will control lighting based upon occupancy/vacancy. If
the space is configured for Occupancy and movement is detected, the
sensor informs the ARISTA controller(s) in the space and the lights will
illuminate. The lights will turn off after the ARISTA controller(s) deem
the space vacant and the timeout period completes. If the space is
configured for Vacancy, the ARISTA controller(s) in the space will only
react when they are manually activated. The lights will turn off after
the ALC-DT-BT-WH deems the space vacant and the timeout period
completes. The ALC-DT-BT-WH also utilizes a built-in switch that can
be used as a manual override to the programmed ARISTA controller(s).

INSTALLATION

1. Turn off power to the controlling circuit.
2. Connect wires as shown in wiring diagram.
3. Attach ALC-DT-BT-WH to electrical box with provided screws.
4. Install wall plate
5. Turn power ON to controlling circuit.
6. Once powered, a Green LED indicator light will start flash for 1
minute..
NOTES: For Programming instructions please visit www.Intermatic.
com. The Arista App is available on Apple App and Google Play stores.
(Search for Arista by Intermatic)
Bluetooth Operations have a maximum range of 100'.
