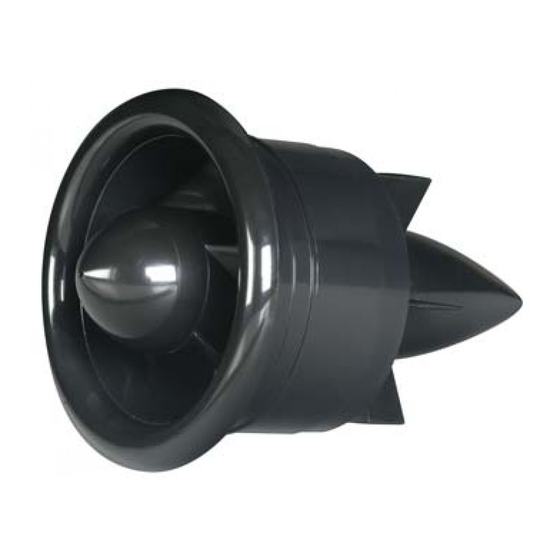

GREAT PLANES ElectriFly HyperFlow Instruction Manual

Technical Data

Intake Area: 3.50 in 2 [22.6cm
Fan Swept Area: 2.71 in 2 [17.5cm
Exhaust Area: 2.70 in 2 [17.4cm
Optimum Flying Speed: 56 mph [90km/h]
Maximum rpm: 50,000 rpm
Housing Inner Diameter: 2.14 in [54.5mm]
Outer Diameter: 2.23 in [56mm]
Complete Assembly Weight (no motor): 1.3 oz [37g]
Welcome to the exciting world of Electric Ducted Fans (EDF)! The HyperFlow is a new EDF design created by Great
Planes using the latest technology to fit onto smaller EDF airplanes. The HyperFlow was created with ease of use in mind,
as well as superior performance using either a brushed or brushless motor. Great Planes offers several different motors
that you can use to tailor the fan's performance to meet your needs. This EDF can fly airplanes as small as 10oz [280g] to
airplanes as big as 35oz [990g] depending on the chosen motor. Flying speeds can vary from 55mph [88km/h] to
approximately 90mph [140km/h]. You can now fly modern jets and fly them in a realistic manner– fast .
Great Planes ® Model Manufacturing Co. guarantees this product to be free from defects in both material and workmanship at the date of
purchase.This warranty does not cover any component parts damaged by use or modification. In no case shall Great Planes' liability exceed
the original cost of the purchased product. Further, Great Planes reserves the right to change or modify this warranty without notice.
In that Great Planes has no control over the final assembly or material used for final assembly, no liability shall be assumed nor
accepted for any damage resulting from the use by the user of the final user-assembled product. By the act of using the user-assembled
product, the user accepts all resulting liability.
If the buyer is not prepared to accept the liability associated with the use of this product, the buyer is advised to return this
product immediately in new and unused condition to the place of purchase.
To make a warranty claim send the defective part or item to Hobby Services at the address below:
Include a letter stating your name, return shipping address, as much contact information as possible (daytime telephone number, fax
number, e-mail address), a detailed description of the problem and a photocopy of the purchase receipt. Upon receipt of the package
the problem will be evaluated as quickly as possible.
© Copyright 2006
ELECTRIC DUCTED FAN INSTRUCTION MANUAL
2 ]
2 ]
2 ],

WARRANTY

Hobby Services
3002 N. Apollo Dr. Suite 1
Champaign IL 61822 USA
™
GPMZ0194 for GPMG3910/3911 V1.0
