Summary of Contents for MICO Raymor Essentials 736548

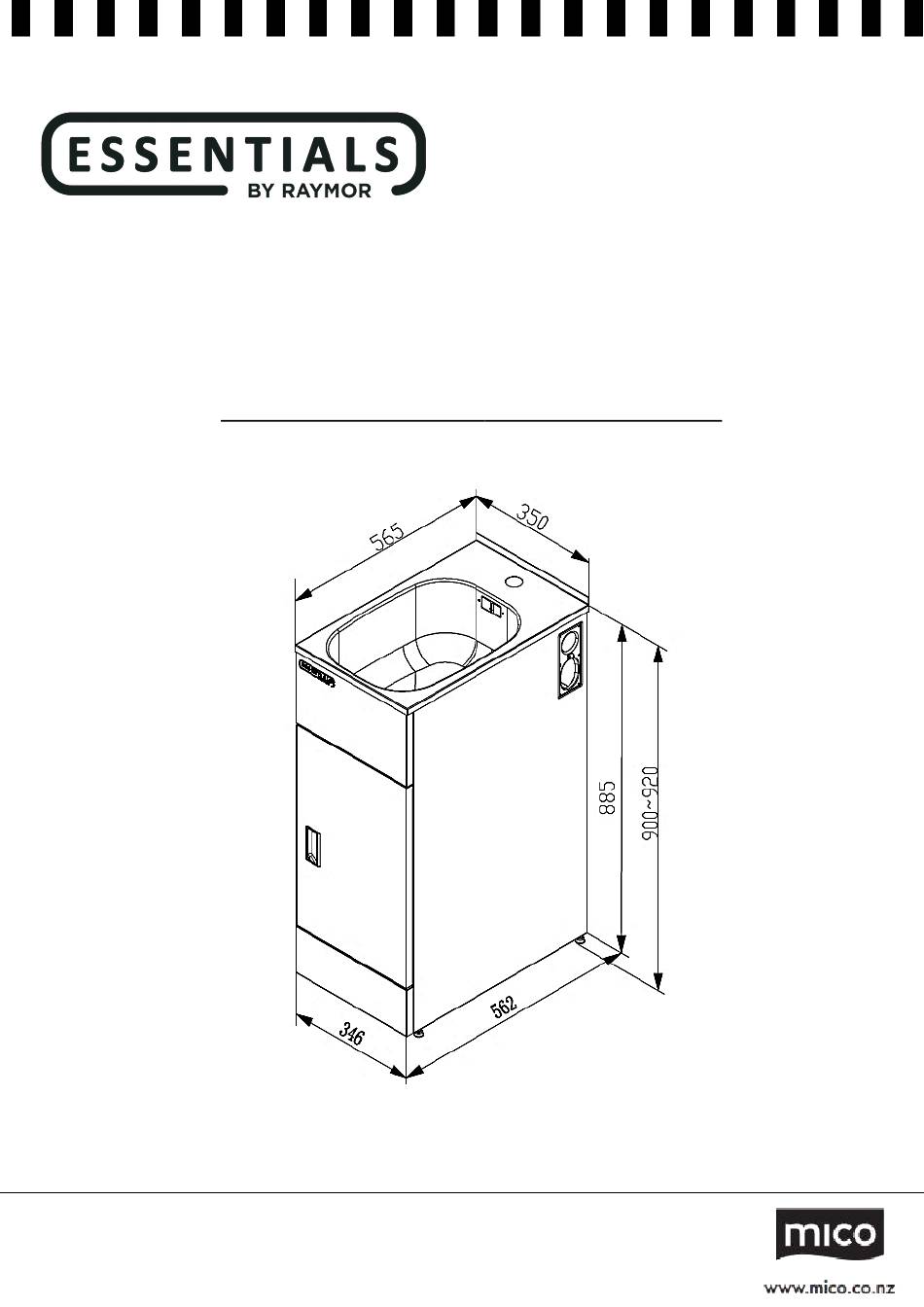

- Page 1 350mm Laundry Cabinet Installation Manual Product Code: 736548 (RE350LCBNTS1WH) All dimensions in mm with 1-2mm tolerance. Actual unit may vary slightly from image pictured...

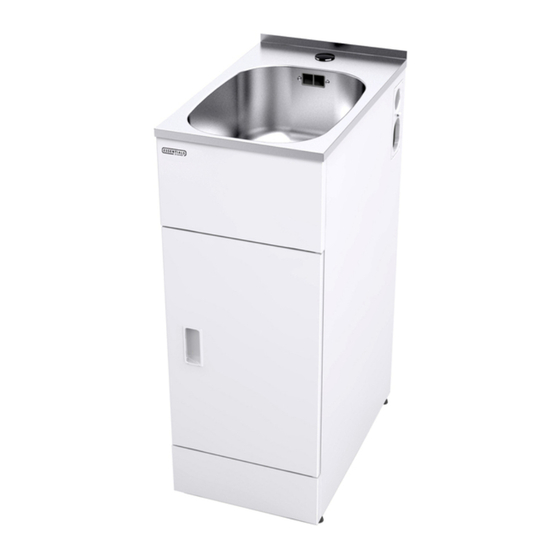

- Page 2 Product Overview Content of Packaging 1 x Laundry Tub (incl. waste system, plug & tap hole cover) 1 x Installation Kit (incl. 4 adjustable feet and 2 spare door hinges) Pre-Installation Important Please read the entire instructions before installing the laundry tub. •...
- Page 3 Determine Site Determine the most suitable position for the laundry tub. It may be used either to the left or right of the washing machine. Allow 10mm clearance between the units. Mark the position on the floor as reference. Important Safety Information •...
- Page 4 4. Position the laundry tub and cut the house waste pipe (which should already be installed) to the exact height. The final height will depend on the waste trap dimensions. 5. Fasten the laundry tub to the wall through any of the holes in the rear flanges. Alternative fastening can be achieved through the floor.
- Page 5 Changing Door Opening Rotating the Cabinet Door 1. Open the door to its most open position. Unscrew the two screws in the bottom left hand corner. From inside the unit pull the hinge pin downwards to release the door. 2. Manoeuvre the door to allow removal from the Laundry tub. 3.
- Page 6 Changing Washing Machine Inlet from Right to Left The washing machine outlet waste hose can be connected to either side of the laundry tub. 1. On the outside of the laundry tub remove the screws from the white plastic washing machine waste inlet and the white plastic blanking plate. 2.
- Page 7 Warranty Certificate (New Zealand) Terms and Conditions The following conditions apply in respect of the warranty given in this certificate: Laundry Tub: 5 years on Stainless Steel bowl, 2 years on cabinet and other components from the date of original purchase for domestic use. Warranty exclusions 1.
- Page 8 statutory provision permits the Manufacturer to limit its liability for a breach of an implied condition or warranty) the Manufacturer’s liability for such breach is limited to the payment of the cost of replacing the product, repairing the product or acquiring an equivalent product. 7.
