Lighting Services Inc
ACCESSORY
CARTRIDGE
MR16
LAMP
Warning: To reduce the risk of electrical shock, disconnect power before installation or maintenance. To reduce risk
of fire, KEEP AWAY FROM COMBUSTABLE MATERIALS.

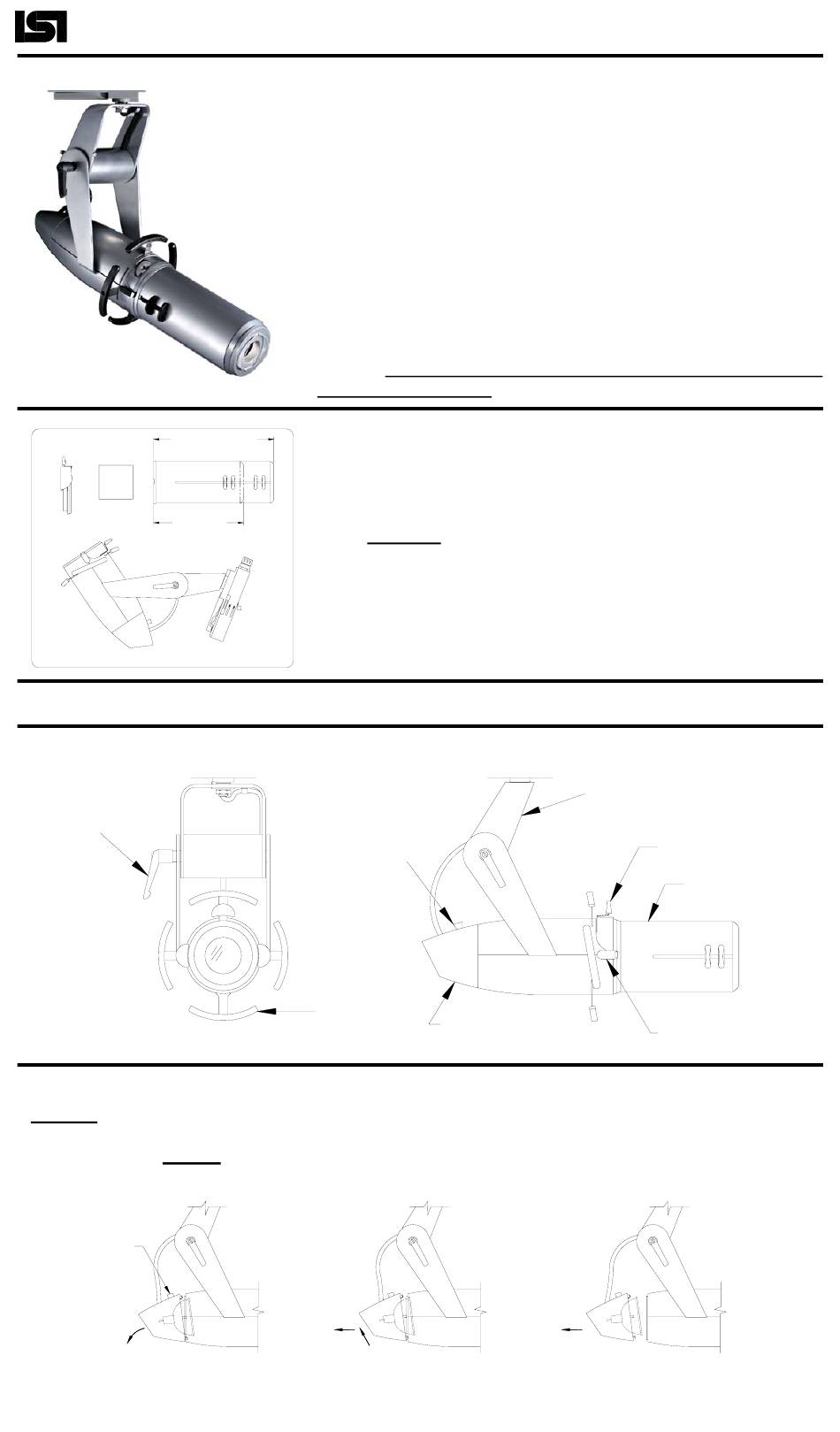

Fixture Overview
LOCKING
HANDLE
Lamp Installation/Relamping
Caution:
Lamp housing becomes very hot during operation.
relamping.
Note:
Use
20843/20876 = 71W EYF;
PRESS BUTTON TO
RELEASE
PULL LAMP
HOUSING BACK
AND DOWN
© 2000 Lighting Services Inc

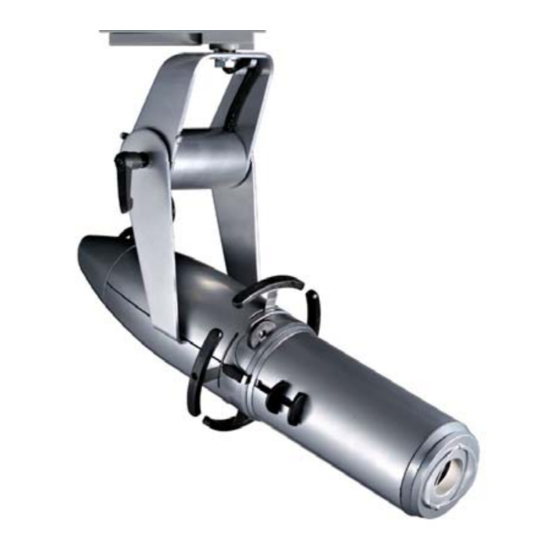

Congratulations on your purchase of LSI's award winning BP75
series beam projector. You have chosen the premier beam
projector available today. This innovative design will afford you
high-end performance coupled with simplistic aiming, image
projection and focusing.
design, you will find your projections to be, hands down,
sharper than all other competitor's products, whether using our
narrow (15°-25° beam spread) or our wide (25°-40° beam
spread) lens assemblies with LSI's Cool-Touch
You will appreciate the ease of maintenance, from the push-
button relamping to the easy-glide focusing and the full motion
image framing, all designed with you in mind. We are confident
the BP75 will meet your projection needs for many years to
come.
using your new BP75.
Package Contents
NARROW
LENS
Accessory Cartridge – Cartridge holds one or two theatrical "D" size
(1.937" – 2.100" overall diameter) gobos or color filters. See accessory
cartridge installation.
WIDE
LENS
Lamps (
Lens Assembly – Narrow Beam Spread (15° - 25°) or Wide Beam Spread
(25° - 40°).
Fixture - 00F Mounting (shown), also available in –2GF, -3GF, -3GAF,
-4GF and –5A mounting.
FITTING
FRAMING
SHUTTERS
ONLY
GE Constant-Color precise lamps:
LIFT UP AND
PULL BACK TO
DISENGAGE
Sales & Manufacturing / 2 Holt Drive, Stony Point NY 10980-1996 / (845) 942-2800 Fax (845) 942-2177
Please read these instructions, in their entirety, before
GE ONLY
): 20843/20876 = 71W EYF;
FITTING
RELAMPING
BUTTON
LAMP HOUSING
20839/20872 = 50W EXT
PULL LAMP
HOUSING
STRAIGHT BACK
TO REMOVE
BP75 Series 12V MR16
Due to our stringent optical train
20839/20873 = 50W EXT
YOKE
ACCESSORY
CARTRIDGE
LENS LOCKING
TAB
Allow fixture to completely cool before
focusing tabs.
©
LENS ASSEMBLY
IS-0106~
Advertisement
Table of Contents
Summary of Contents for LSI BP75 Series
- Page 1 BP75 Series 12V MR16 Lighting Services Inc Congratulations on your purchase of LSI’s award winning BP75 series beam projector. You have chosen the premier beam projector available today. This innovative design will afford you high-end performance coupled with simplistic aiming, image projection and focusing.
- Page 2 Projection patterns for the BP75 Series are manufactured by others and are theatrical industry standard “D” size (not LSI “D” size). The BP75 has been designed to accept a double combination of any metal or glass patterns or dichroic color filters sized from 1.937” (48mm) to 2.100” (53mm) overall diameter, with a maximum image diameter of 1.574”...
- Page 3 HANDLE WITH YOKE Image Focusing The BP75 Series optical system is fully adjustable from 15°-25°, for the narrow beam lens assembly, to 25°-40° for the wide beam lens assembly. Beam spread and image focusing are easily attained with the easy-glide lens tabs.
- Page 4 BP75 Series 12V MR16 Lighting Services Inc Image Focusing (cont’d) 1) Aim fixture to position image to the desired location. 2) Gently squeeze the cool-touch lens adjustment tabs to size the image. The image size adjustment is controlled by the lens closest to the fixture housing (short slot).
