Summary of Contents for Alfa Network AWIPH90

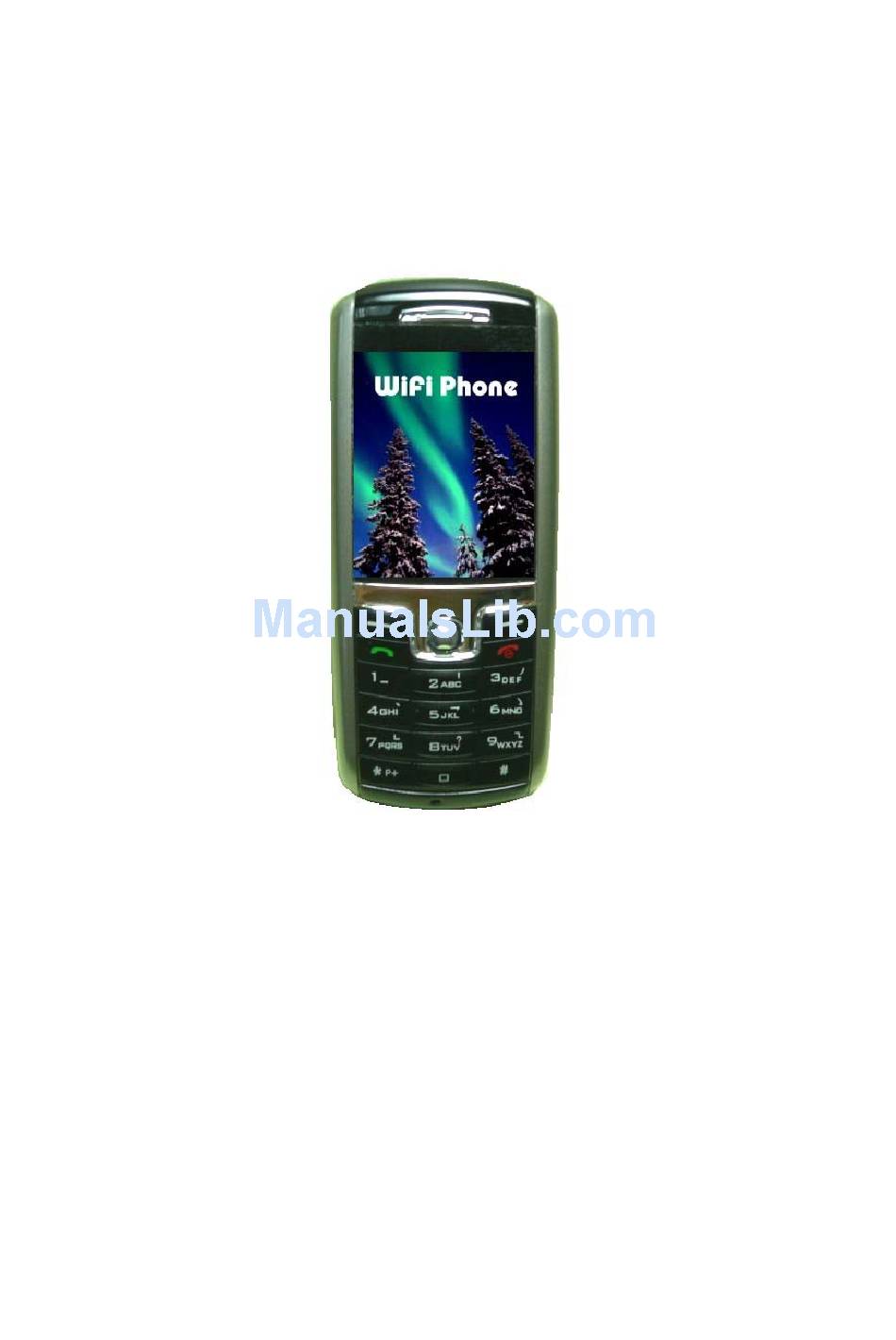

- Page 1 AWIPH90 WiFi Phone User Manual Version 1.0...
-
Page 2: Table Of Contents
Chapter 1 Overview of the WiFi Phone………………………………3 1.1 Front Panel and Keypad………………………………………………………. 3 1.2 Keypad function description………………………………………………….. 4 1.3 Main Screen……………………………………………………………………. 5 1.4 Entering and Editing text……………………………………………………... 5 1.5 Making a Phone Call…………………………………………………………... 6 1.5.1 Entering the phone number manually 1.5.2 Using the Phone Book 1.5.3 Using the Call History 1.5.4 Using the Quick Setting... - Page 3 Chapter 7 Phone Settings…………………………………………….. 23 7.1 Vibrator………………………………………………………………………….23 7.2 Ringer……………………………………………………………………………23 7.3 Ring Tones……………………………………………………………………... 23 7.4 Ringtone Volume………………………………………………………………..23 7.5 Language………………………………………………………………………..23 7.6 Backlight………………………………………………………………………...23 7.7 Speed Dial……………………………………………………………………….24 7.8 Web Configuration……………………………………………………………..24 Chapter 8 System Time……………………………………………… 25 8.1 Date Time Setting………………………………………………………………25 8.2 SNTP Setting……………………………………………………………………26 Chapter 9 Firmware Settings…………………………………………26 9.1 Firmware Version………………………………………………………………26 9.2 HTTP Server……………………………………………………………………27 9.3 Firmware Upgrade……………………………………………………………..27...
-
Page 4: Chapter 1 Overview Of The Wifi Phone
Chapter 1 Overview of the WiFi Phone 1.1 Front Panel and Keypad Figure 1.1.1 Front Panel and Keypad Receiver Graphic LCD Power On/Off Key... -
Page 5: Keypad Function Description
1.2 Keypad function description Description Power on/off and End key Display IP address key Used to end or reject a call, or to return to standby mode. Answer/Send key Used to answer a call or dial a number. Menu and select key Used to enter into menu and move up and down to select items In Input Mode, you can switch [123], [abc] and [ABC]. -
Page 6: Main Screen
1.3 Main Screen After powering on, the phone enters standby mode, with the main screen displayed as shown in Figure 1.3.1 1 Battery icon 2 User name 3 Right soft key tab 4 Left soft key tab 5 AP information: Showing which AP you are connecting 6 Signal strength icon 7 Registration status indicator: when SIP registration is enabled, the *reg indicates... -
Page 7: Making A Phone Call
• Press to move the cursor. to clear the number/character that the cursor points to. • Press • Press to abort the editing. 1.5 Making a Phone Call 1.5.1 Entering the phone number manually You can enter phone number (needing SIP Proxy Server and SIP Registrar) or SIP URL at the entering line. -
Page 8: Redial A Number
1.5.5 Redial a Number At the standby mode, press The list of placed calls is displayed. The latest dialed number is highlighted, so you can redial this number directly by pressing the left soft key. 1.5.6 Answer a Call/ Reject a Call To answer a call, press to accept. -
Page 9: Chapter 2 Call History
To transfer the call, press to make call out. Please refer to Figure 1.5.3 Chapter 2 Call History 2.1 Call History Figure 2.1.1 provides information about accessing the main menu and using its features. Menu and press the third party’s number, then press Call History Message Call Settings... -
Page 10: Chapter 3 Message
Figure 2.1.2 shows the architecture of Call History menu. Call History You can find out all the records of Dialled /Answered/Missed/ Delete Records Chapter 3 Message 3.1 Message You can send and delete messages here. Also, you can find out the records of Inbox / Outbox. -
Page 11: Chapter 4 Phone Book
Chapter 4 Phone Book 4.1 Phone Book You can press to enter “Phone Book”. You can Search /Add / Delete the contact list and check the phone book capacity. (Or make a Skype call from Skype Buddy List.) Note: to make a Skype call from WiFi Phone, you need to install SIP-Skype Gateway software in your PC. To get a buddy list from Skype: 1. -
Page 12: Sip Settings
5.1 SIP Settings Figure 5.1.2 shows the architecture of the SIP Settings menu. SIP Settings Display Name User Name Proxy ID Passwords Registrar Registrar Status Outbound Proxy Outbound Status Domain Registration time SIP Local Port Session Timer Type Session Timer SIP Privacy Figure 5.1.2... - Page 13 SIP Settings menu architecture In the main Menu, press to enter and press scroll to Call Settings and then select SIP Settings. Then press to select it. The SIP Settings menu is displayed, as shown in Figure 5.1.3 Figure 5.1.3 1 Display Name Enter display name here.
-
Page 14: Call Waiting
For example: 210.65.147.201:5060 8 Outbound Proxy Status You can enable or disable the WIFI PHONE to use the outbound proxy server. To call through outbound proxy server, “enable” needs to be set 9 Domain SIP Domain, SIP server URL For example: limss.cht.com.tw:5060 10 Registration Time Enter registration time here. -
Page 15: Nat Settings
5.4 NAT Settings NAT Traversal (for service provider reference)---STUN/Static/None For inter-working with some NAT-unfriendly VoIP system (server or gateway),which can not detect the phone behind NAT, you may need to configure your phone to use the NAT external IP/Port. For such environment, we provide 2 methods to get your NAT external IP/Port 1. -
Page 16: Chapter 6 Network Settings
Chapter 6 Network Settings Network Settings This chapter provides information about accessing the Network Settings menu and using its features. Figure 6.1.1 shows the architecture of the Network Settings menu. Network Settings Figure 6.1.1 Network Settings menu In the main Menu, press to select it. -
Page 17: Wlan Settings
6.1 IP Settings IP Status Show current status of Network settings including MAC address, DHCP status, IP address, Subnet Mask and default gateway. DHCP You can get dynamic IP address, default gateway and DNS server IP address from a DHCP server if you enable the DHCP function. If you want to configure these settings manually, please disable this DHCP function. - Page 18 Figure 6.1.4 Site Survey Press to enter the “Quick Setting” menu and use to scroll to “Site Survey”. Press to select and initiate site survey. To set Profile on Web Configuration: 1. Enter Web page 2. Select Wireless Setting 3. To edit “Profile Name” & “ESSID” 4.
- Page 19 A. Authentication Setting Step 1: Please check Access Point uses either “Open” or “Shared Key” of the WEP Authentication Step 2: Please set the status: “Open” or “Shared Key” into menu 6.4.4 “Authentication” After the setting, please set steps in following “B”. B.
-
Page 20: User Certificate
D. WPA-EAP/TLS Setting This mode needs both [User Certificate] and [Root Certificate]. Step 1: Set ESSID Step 2: Select [User Certificate] Step 3: Input User ID Step 4: Input User Password Step 5: Select [Root Certficate] E. WPA-EAP/TTLS Setting This mode needs [Root Certificate] only. Step 1: Set ESSID Step 2: Input User ID of the User Certificate Step 3: Input User Password of the User Certificate... - Page 21 When “User Certificate” is requested by radius server, settings on Web configuration is needed as follows, 1. Enter Web page 2. Select “Upload User Certificate” 3. To link the file which is provided by MIS 4. Apply 5. After uploading, reboot WiFi phone. 6.
-
Page 22: Root Certificate
6.4 Root Certificate When “User Certificate” is requested by radius server, settings on Web configuration is needed as follows, 1. Enter Web page 2. Select “Upload Root Certificate” 3. To link the file which is provided by MIS 4. Apply... - Page 23 5. After uploading, reboot WiFi phone. 6. Select “Wireless Setting” of Web page 7. To set encryption type into “ WPA-EAP/TTLS ” 8. To set User ID & Password (provided by MIS) 9. To set “Root Certificate” if it’s also requested by radius server 10.
-
Page 24: Chapter 7 Phone Settings
Chapter 7 Phone Settings Phone Settings 7.1 Vibrator Enable or disable the vibrator 7.2 Ringer Enable or disable the ringer here. 7.3 Ring Tones You can select from the 17 ringer melodies from Melody 1 to Melody 17. 7.4 Ringtone Volume You can change ring tone volume here from 1-5 levels. -
Page 25: Speed Dial
7.7 Speed Dial Set speed dial numbers here (up to 9 sets) 7.8 Web Configuration Enable or disable the web configuration here. Enter Web Configuration procedure: 1.Press to see IP address; ex: http://192.168.1.130 2.open MSIE and input the URL: http://192.168.1.130 3. -
Page 26: Chapter 8 System Time
Chapter 8 System Time In the main menu, press to scroll to System Time and press to select it. The system time menu is displayed, as shown in Figure 8.1.1 Figure 8.1.1 System Time menu... -
Page 27: Date Time Setting
8.1 Date Time Setting You can set time and date in this submenu. The time can be set in the 24-hour or 12-hour format. The date can be set in the YYYY.MM.DD, MM.DD.YYYY or DD.MM.YYYY format. 8.2 SNTP Setting Time Zone Setting This submenu includes Time Zone and Daylight Saving configuration. -
Page 28: Http Server
In the main menu, press to scroll to Firmware Settings and press to select it. The system time menu is displayed, as shown in Figure 9.1.2 Figure 9.1.2 9.1 Firmware Version You can check the current firmware version here. 9.2 HTTP Server Enter your HTTP server here. -
Page 29: Ip Camera Ip
3. To use “ browser ” to link the upgrade file 4. Press “Apply ” After the upgrade process is successfully finished, you will receive the message as follows: B. To upgrade on WiFi phone “ Firmware Upgrade settings ” 1. -
Page 30: Chapter 10 Ip Camera
Chapter 10 IP Camera 10.1 IP Camera Play This chapter provides information about accessing the IP Camera server which can be used as IP Surveillance purpose. 1. Enter your IP camera server address into ”IP Camera IP” column. Press “Apply”. 2.
