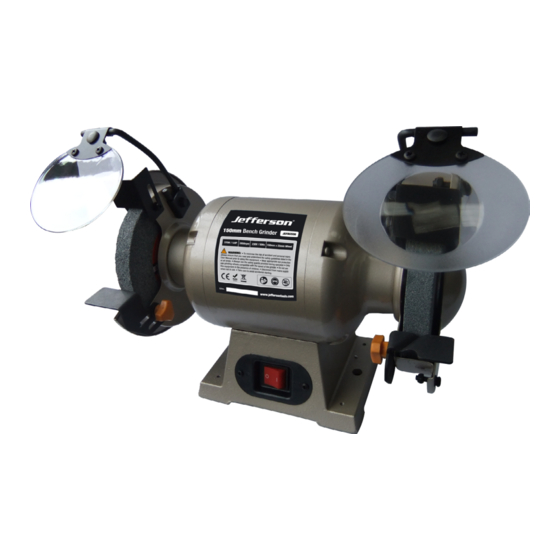

- Page 1 150mm Bench Grinder 370W / ½Hp • 2850rpm • 230V /50Hz JEFBGS06 USER MANUAL www.jeffersontools.co.uk...
- Page 2 JEFBGS06 JEFBGS06 150mm Bench Grinder 150mm Bench Grinder Table of Contents Warning: Please read all safety instructions carefully before use to avoid the risk of accident or personal injury. 1. Technical Specifications page 2 1. Technical Specifications 2. General Safety Guidelines...
- Page 3 JEFBGS06 JEFBGS06 150mm Bench Grinder 150mm Bench Grinder C. Equipment Safety: 3. Box Contents / Machine Parts Itinerary • Check that the power switch is set to the "Off" position before connecting it to the mains power supply. ITEM • Always ensure that all grinding wheel lock nuts, securing bolts, clamps and guards are tightened and secure before Left Work Rest operation.
- Page 4 JEFBGS06 JEFBGS06 150mm Bench Grinder 150mm Bench Grinder 5. Assembly Instructions 5. Assembly Instructions (continued) A. Mounting the Grinder to the Workbench Warning: Ensure that the machine is powered down and disconnected from the mains supply before Before using the grinder it is essential that you first mount it to a work bench or grinding stand/pedestal.
- Page 5 JEFBGS06 JEFBGS06 150mm Bench Grinder 150mm Bench Grinder 5. Assembly Instructions (continued) 6. Operating Instructions This tool is designed for sharpening chisels, axes and other wood cutting tools. It is also useful for repairing tips on D. (i) Tool Rest Assembly screwdrivers and drill bits and removing excess metal burrs from pieces of cut metal.
- Page 6 JEFBGS06 JEFBGS06 150mm Bench Grinder 150mm Bench Grinder 8. Troubleshooting Guide 8. Troubleshooting Guide (continued) Problem / Symptom Cause Problem / Symptom Cause Action Action Motor will not start. 1. Low voltage 1. Check power source / ensure correct Wavy patterning on the surface of 1.
- Page 7 JEFBGS06 JEFBGS06 150mm Bench Grinder 150mm Bench Grinder 9. Parts Diagram 10. Parts List Specification Specification Philips Screw + Spring Washer M5x16 Toothed Locking Washer + Flat Washer Assy Philips Screw + Spring Washer M4x8 Left Guard Cover Assy I Type Hex Nut...
- Page 8 150mm Bench Grinder with Work Light • EC Machinery Directive (2006/42/EC) • EC Low Voltage Directive (2006/95 EC) • EC Electromagnetic Directive(2004/108 EEC) Jefferson Tools, Herons Way, Chester Business Park, Chester, United Kingdom, CH4 9QR Tel. +44 (0)1244 646 048 Email: sales@jeffersontools.com www.jeffersontools.com...
