Please read through this manual to familiarize yourself with your new speakers. Should your PowerBass
Autosound speaker components ever require service, you will need to have the original dated receipt.
GM O.E.M. PLUG & PLAY
Application Guide
OE692-GM
OE652-GM
OE69C-GM
OE65C-GM

Advertisement

loading
Need help?

Need help?

Do you have a question about the OE692-GM and is the answer not in the manual?

Questions and answers

Related Manuals for PowerBass OE692-GM

Summary of Contents for PowerBass OE692-GM

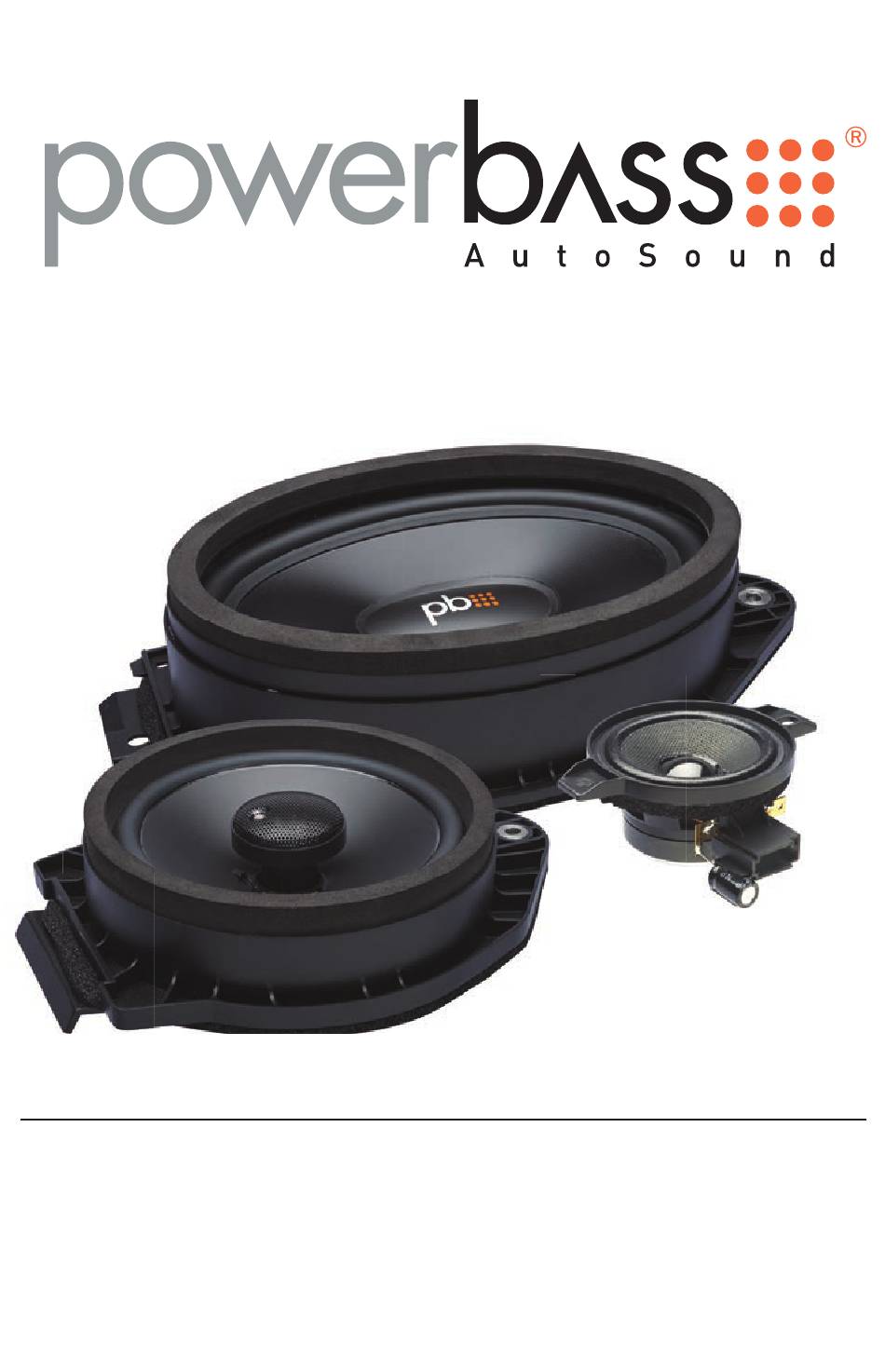

  • Page 1 OE652-GM OE69C-GM OE65C-GM GM O.E.M. PLUG & PLAY Application Guide Please read through this manual to familiarize yourself with your new speakers. Should your PowerBass Autosound speaker components ever require service, you will need to have the original dated receipt.
  • Page 3 170 dB. Please observe all local sound ordinances while listening to your PowerBass Autosound system. PowerBass USA, Inc. accepts no liability for hearing loss, bodily injury, or property damage due to the...
  • Page 4 - 1” Silk Dome Tweeter on Coaxials (OE652-GM, OE692-GM) - 1” Silk Dome Tweeter with Diffuser on Components Kit (OE65C-GM) - 2.75” High Bandwidth Driver on Component Kit (OE69C-GM) - 20 oz. Magnet (OE652-GM, OE65C-GM) 35 oz. Magnet (OE692-GM, OE69C-GM) Fig 1 Fig 2...
  • Page 5 Before beginning your installation, thoroughly read this guide and keep it as a reference. It will give you tips on proper placement, wiring, and installation as well as how to obtain the best sound from the PowerBass speakers you have selected. Woofer...
  • Page 6 Before beginning your installation, thoroughly read this guide and keep it as a reference. It will give you tips on proper placement, wiring, and installation as well as how to obtain the best sound from the PowerBass speakers you have selected. Woofer...

  • Page 7: Preparing For Installation

    Installation of PowerBass Autosound Speakers requires experience with a variety of mechanical and electrical procedures. This manual only provides general installation and operation instructions. If you have any reserva- tions about your installation skills or lack of the proper tools, please contact your local PowerBass Autosound dealer for assistance.
  • Page 8 6X9” SPEAKER INSTALL (OE692-GM, OE69C-GM) 1. Remove door panel to gain access to the factory 2. Remove the factory speaker by unclipping it at the top speaker. Remove the 7mm bolt at the top of the speaker and pulling it forward. Then carefully unplug the speaker (do not discard this bolt as you will need it to install your and remove from vehicle.
  • Page 9 6.5” SPEAKER INSTALL (OE652-GM, OE65C-GM) 1. Remove door panel to gain access to the factory 2. Remove the factory speaker by unclipping it at the top speaker. Remove the 7mm bolt at the top of the speaker and pulling it forward. Then carefully unplug the speaker (do not discard this bolt as you will need it to install your and remove the vehicle.
  • Page 10 COMPONENT TWEETER INSTALL (OE65C-GM) 1. Remove pillar or panel to gain access to the factory 2. Unclip or remove factory tweeter from pillar or panel. tweeter, unplug and remove tweeter from the vehicle. 3. Locate both the tweeter adapter ring and the correct 4.
  • Page 11 HIGH BANDWIDTH DRIVER INSTALL (OE69C-GM) FRONT 1. Remove cover to gain access to the fac- FRONT 2. Plug in and mount your new speaker with the tory speaker. Remove the two 7mm screws securing the screws you removed from the factory speaker. speaker.
  • Page 12 LIST OF COMPATIBLE VEHICLES OE652-GM | OE65C-GM Speakers may fit in additional models other than those listed below - To verify fitment for your specific year and model, please see our expanded fitment guide at www.powerbassusa.com Applications Buick Enclave Buick LaCrosse Buick Lucerne Buick Regal Buick Verano...
  • Page 13 Pontiac Solstice Saturn Aura Saturn Outlook Saturn Sky (MAY NOT FIT IN VEHICLES WITH PREMIUM AUDIO SYSTEMS) *OE692-GM & OE69C-GM models are designed to work in 4-OHM applications only. Please be sure to verify your OEM speaker impedance before installation.
  • Page 14 Please call (909) 923-3868 for PowerBass Customer Service. You must obtain an RA# (Return Authorization Num- ber) to return any product to PowerBass. The RA number must be prominently marked on the outside of the shipping carton or the delivery will be refused. Please pack your return carefully; we are not responsible for items damaged in shipping.
  • Page 16 PowerBass Autosound – A division of PowerBass USA, Inc. 2133 S. Green Privado – Ontario, CA 91761 Tel. (909) 923-3868 – Fax (909) 923-8048 www.powerbassusa.com...
