Turbosmart TS-0701-2011 Manual

Product Name:
Product Description:
Product Number:
------------------------------------------------------------------------------------------------------------------------

IMPORTANT NOTES:


Please thoroughly read and understand these instructions before commencing this installation.

Ensure that the car and exhaust system are cold before commencement of installation.

RECOMMENDATIONS


Turbosmart recommends that your gauge is fitted and adjusted by an appropriately qualified technician

Gauge mount cup (TS-0101-2024) Sold separately
------------------------------------------------------------------------------------------------------------------------

HOW TO INSTALL YOUR EXHAUST GAS TEMPERATURE GAUGE

Exhaust Gas Temperature Sensor

The exhaust gas temperature (EGT) gauge requires a reliable temperature signal from the exhaust system to provide an
appropriate EGT indication.

After deciding the location of the sensor, drill an 8.70 mm diameter hole. Use a 1/8 NPT tap to thread the hole for the included
NPT fitting.

First secure the 1/8 NPT fitting by hand, and then turn 1.5 revolutions by a socket/spanner. Torque to 3 Nm (2.2 ft.lbf)

After the 1/8 NPT fitting is securely fastened, insert the bush, nut and thermocouple in series as shown in figure below.

The thermocouple depth is to be set at approximately half the diameter of the exhaust pipe.

Secure the sensor assembly by tightening the securing nut. Torque to 6Nm (4.4 ft.lbf)

Be sure not to over tighten the EGT sensor as it may cause sensor failure or thread damage.

Route the sensor cable to the gauge. Ensure cable is kept away from heat as much as possible.
Electrical EGT Gauge

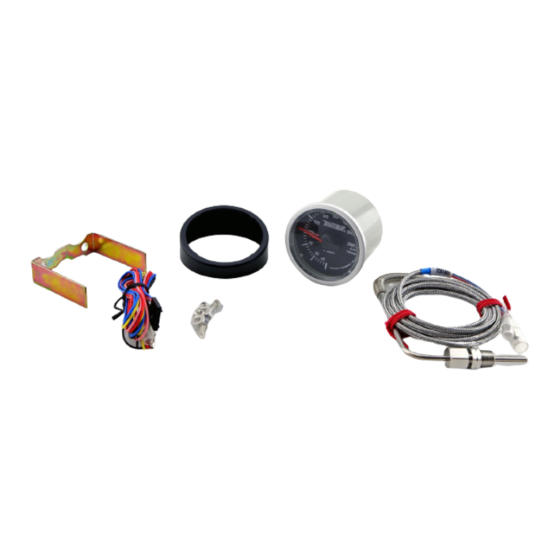

EGT Electrical Gauge 400 to 2200 DEG F
TS-0701-2011
www.TURBOSMARTONLINE.com
1
