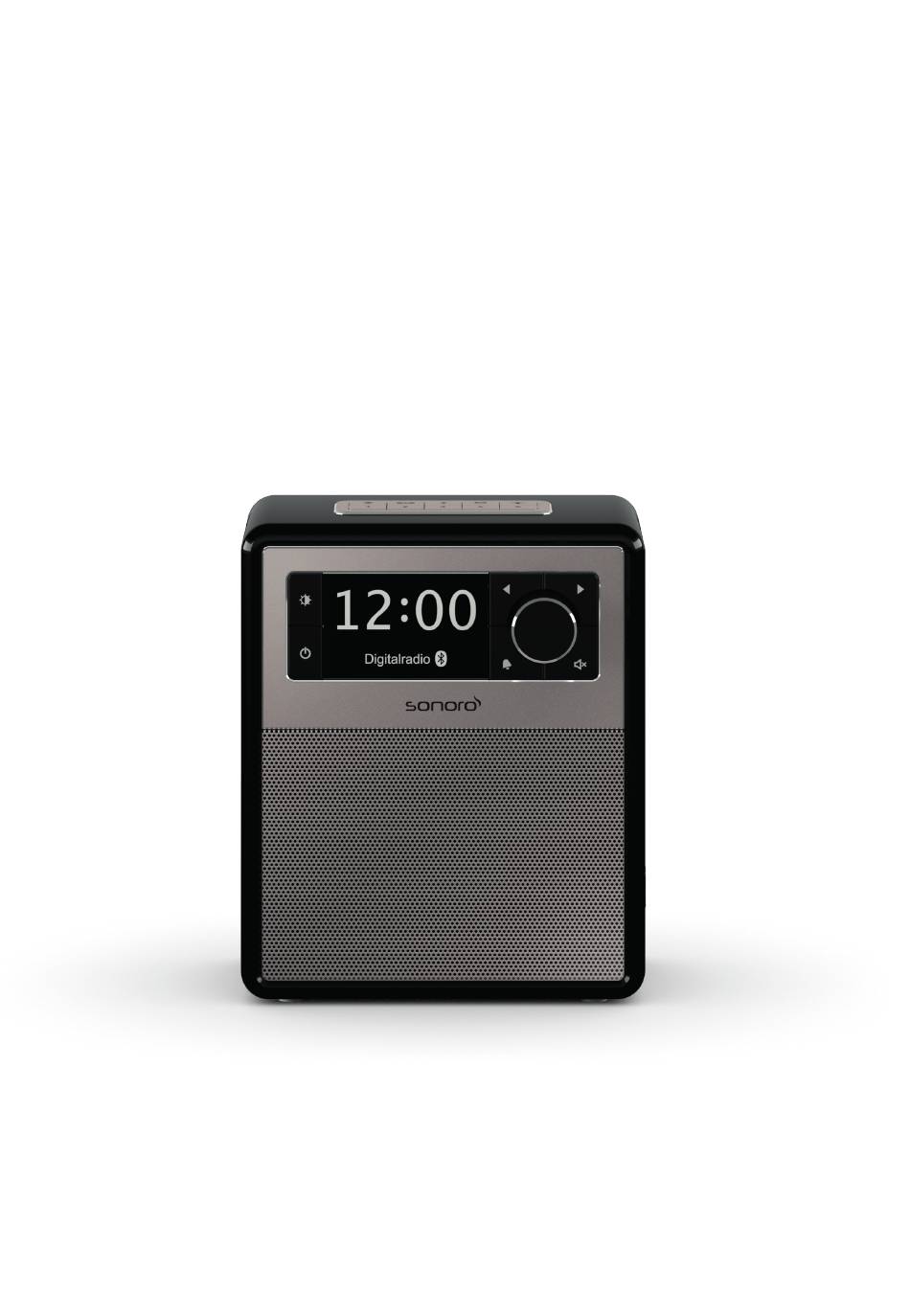

- Page 1 EASY SO-120 FM/DAB+ R ADIO WITH BLUETOOTH® Operating manual...
-
Page 2: Table Of Contents
10.2 Turning the alarms on or off ..............59 10.3 Deactivating a sounding alarm ............... 59 10.4 Snooze ......................59 Sleep timer ......................Settings ....................... 60 12.1 Time/date ....................60 12.2 Equalizer ..................... 60 12.3 Display dimmer ..................61 © sonoro audio GmbH 2018... - Page 3 13.5 Set power on volume level ............... 62 13.6 Preset stations lock setting ............... 63 13.7 Set Bluetooth auto-connecting ..............63 13.8 Inactive standby ..................63 13.9 Factory reset ....................63 Troubleshooting ....................64 Cleaning ......................66 Warranty ......................67 © sonoro audio GmbH 2018...
-
Page 4: Introduction
The images in this operating manual are intended to illustrate the actions necessary to operate EASY. Enjoy your EASY! Contact data Adresse sonoro audio GmbH, Nordkanalallee 94, D-41464 Neuss, Germany Telefon +49 2131 8834-141 +49 2131 7517-599 E-Mail support@sonoro.de Internet www.sonoro.de © sonoro audio GmbH 2018... -
Page 5: Intended Use
Scope of delivery In addition to the EASY itself, the following accessories are also included in the scope of delivery: • AC adapter with universal adapter (VDE and UK) • Operating manual • Safety manual © sonoro audio GmbH 2018... -
Page 6: Controls And Ports
Front view Display Dimmer button ( ) Standby button ( Left button, skip previous ( ) Right button, skip next ( ) Volume knob, OK button (press the knob) MUTE button ( Alarm button ( © sonoro audio GmbH 2018... - Page 7 DAB radio mode ( Bluetooth mode ( Auxiliary input mode ( Night lamp on/off button ( ) Night lamp indicator Favorite button 1 Favorite button 2 Favorite button 3 Favorite button 4 Favorite button 5 © sonoro audio GmbH 2018...
- Page 8 Side view USB port for charging only © sonoro audio GmbH 2018...
- Page 9 Rear view EASY Portable FM/DAB+RADIO Product No. : SO-120 Carrying strap LED night lamps Battery compartment Bass reflex opening Keylock (anti-theft protection) DC power input jack Auxiliary input (3.5mm) FM/DAB antenna © sonoro audio GmbH 2018...
-
Page 10: Technical Data
The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by sonoro audio GmbH is under license. Other trademarks and trade names are those of their respective owners. © sonoro audio GmbH 2018... -
Page 11: Getting Started
1. Take EASY out of the packaging and check whether EASY or the individual parts exhibit damages. If this is the case, do not use EASY. Should you detect any damage, contact your dealer or sonoro audio GmbH customer support immediately. -
Page 12: Battery Operating Using Alkaline Batteries
If EASY is not to be used for any extended period of time, it is recommended to remove the batteries from the radio. 3. The battery indicator on the display shows the current state of charge of the batteries. © sonoro audio GmbH 2018... -
Page 13: Battery Operating Using Ni-Mh Rechargeable Batteries
2. It uses an extra pin for this charging function. The pin is located in the right side of the inside of the battery compartment. © sonoro audio GmbH 2018... -
Page 14: Using The Antenna
2. Pull the rods of the antenna apart and align the antenna so that you have the best possible reception. For a better reception, connect EASY to a suitable house antenna, screwing the external antenna to the EASY’s FM/DAB socket. © sonoro audio GmbH 2018... -
Page 15: First Time Using The Radio
FM station with the RDS signal broadcasting. Wait for a while, the current time will appear on the display. If no signal is found, it may be necessary to reposition EASY in order to get a better reception. © sonoro audio GmbH 2018... -
Page 16: Basic Operations
To change the display Press the ( ) button continuously to choose between brightness level the 5 different display brightness levels. Alternatively you can use the ( ) volume knob and then confirm by pressing the knob. © sonoro audio GmbH 2018... -
Page 17: Display Icons
Battery is empty. Battery charged at a level of approx. 25%. Battery charged at a level of approx. 50%. Battery charged at a level of approx. 75%. Battery is mostly fully charged. Battery is charging. © sonoro audio GmbH 2018... -
Page 18: Fm Radio Mode
To recall a radio station Press a favorite station button (1–5) to access a stored in the favorite list preset station. To browse the radio Press the ( ) button repeatedly. station information (if available) © sonoro audio GmbH 2018... -
Page 19: Dab-Radio Mode
(if available) *DAB information (if available) includes: Station name, Dynamic Label Segment (DLS), Signal strength, Program type (PTY), Ensemble Name, Frequency, Signal error rate, Bit rate and audio status, Codec, and Time and date. © sonoro audio GmbH 2018... -
Page 20: Bluetooth Mode
To disconnect the Switch to another playback mode, or press and hold . Bluetooth connection, To browse the Press the button repeatedly. information (if available) of the audio file, © sonoro audio GmbH 2018... -
Page 21: Aux In Mode
EASY with an audio cable (with 3.5 mm connector, not supplied). To access the auxiliary Press the button on the EASY. input mode, To start and control Perform all playback operations on the external player. playback, © sonoro audio GmbH 2018... -
Page 22: Alarm
To set the volume of the alarm sound. • [Save] To save the current settings. Once [Save] is selected, the alarm settings will be stored. If an alarm is activated, the alarm icon ( ) will appear. © sonoro audio GmbH 2018... -
Page 23: Turning The Alarms On Or Off
2. Rotate the turning knob to select a sleep timer from 5 minutes to 120 minutes with 5 minutes interval. 3. Press the volume knob to confirm the selection. When the sleep timer is activated, the sleep timer icon ( ) will appear. To cancel the sleep timer, select [Sleep OFF]. © sonoro audio GmbH 2018... -
Page 24: Settings
Adjust the treble level to tailor the sound of the audio playback. • [Loudness] Loudness on, it adapts the treble and bass levels to suit the current volume, so that delicate sounds can still be heard clearly when you listen to your music quietly. © sonoro audio GmbH 2018... -
Page 25: Display Dimmer
12.4. Night lamp To turn the night lamp on or off. • Press the button to turn on or off the night lamp. If it is operating with batteries, the night lamp indicator is off. © sonoro audio GmbH 2018... -
Page 26: Special System Settings
This option allows you to set EASY with the maximum volume level output in operating modes and alarm volume setting. 13.5. Set power on volume level • This option allows you to set EASY with your desired volume level when it is power on. © sonoro audio GmbH 2018... -
Page 27: Preset Stations Lock Setting
This option sets the duration of time before EASY turns off automatically. Options include: Off, 2, 4, 5 and 6 hours. 13.9. [Factory reset] • This option clears all user-defined settings and replaces them with the original default settings. © sonoro audio GmbH 2018... -
Page 28: Troubleshooting
There is radio Keep EASY away from interference. other electronic devices. No or faulty Bluetooth Interference caused by Increase the distance connection. other radio transmitter between the EASY and the or devices. other electronic devices. © sonoro audio GmbH 2018... - Page 29 Alarm is not switched Switch the alarm on. Alarm volume is set to Increase the alarm volume minimum. level. USB device does not USB device is not Check the USB cable. work. charging. Plug-in the provided power adapter. © sonoro audio GmbH 2018...
-
Page 30: Cleaning
Clean EASY only from the outside with a soft, dry cloth. Cleaning off heavy soiling • Clean EASY only from the outside with a slightly damp cloth and then dry EASY with a soft, dry cloth. © sonoro audio GmbH 2018... -
Page 31: Warranty
Warranty claims can only be asserted within a period of max. 2 years (1 year in North America and Australia), calculated from the date of purchase. • sonoro audio GmbH shall, at its own discretion, repair or replace EASY free of charge any defects caused by material or manufacturing defects within the warranty period. - Page 32 DISTRIBUTED BY www.turascandinavia.com...
