Summary of Contents for RocketLinx ES8105 Series
- Page 1 ROCKETLINX ES8105 Industrial Ethernet Switch Quick Installation Guide ES8105 and ES8105F www.comtrol.com 2000553 Rev C...
-
Page 2: Wiring The Power Inputs

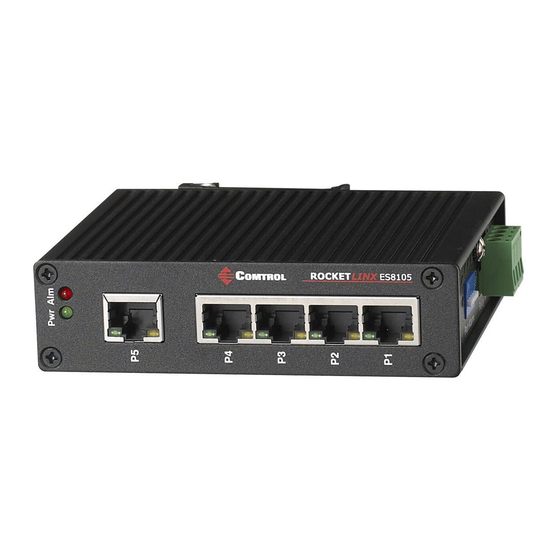

ES8105F-Single-Mode: supports four 10/100BASE-TX ports and one 100BASE-FX Ethernet port The RocketLinx ES8105 series provides a slim industrial design to save rail space for compact system requirements. The ES8105 series is enclosed in an industrial-grade aluminum case with IP30 standard protection. It provides one relay output to alarm port link failure events, which is enabled and disabled by a DIP switch. -
Page 3: Mounting The Unit
ES8105/ES8510F to a grounded surface to ensure safety and prevent noise. Mounting the Unit You can mount the ES8105 series on a DIN rail. Connecting the Ethernet Port Connect one end of an Ethernet cable into the Ethernet port of the ES8105/ES8105F and the other end to the attached networking device. - Page 4 The LINK/ACT LED is lit when the cable is correctly connected. The LINK/ACT LED is lit yellow for a 10BASE-TX Ethernet connection or green for a 100BASE-TX Ethernet connection. Always make sure that the cables between the switches and attached devices (for example, switch, hub, or workstation) are less than 100 meters (328 feet).
- Page 5 IEEE organization recommends maximum optical fiber cable distances as defined in the following table: Data Rate IEEE Standard Standard Cable Type (Mbps) Distance 10Base-FL 850nm, 50/125um or 62.5/125um Multi-mode optical fiber cable 100Base-FX 1310nm, 50/125um or 62.5/125um Multi-mode optical fiber cable 100Base-SX 850nm, 50/125um or 62.5/125um 300m...
- Page 6 The following table provides information about optical fiber cable attenuation: Connector Splice Fiber Type Wavelength Attenuation /km *1 Attenuation /km *2 Loss Loss 850nm 3.5dBm 2.5dBm Multi-Mode 0.75dBm 0.1dBm 1310mm 1.5dBm 0.8dBm 50/125um 850nm 3.5dBm 3.0dBm Multi-Mode 0.75dBm 0.1dBm 1310nm 1.5dBm 0.7dBm 62.5/125um...
