Phonic WM40-L Manual

WM40-L and WM40-R
Wireless Receivers For The Performer Speakers

FEATURES

● Operates on
614.175~804.800 MHz (FCC)
614.175-864.800 MHz (CE)
● 16 selectable UHF channels preset
● Internal squelch and mute circuit
mode can resist extraneous noise
● Space-saving integrated compact
module
● Left or Right channel receiver module
to be installed in any Phonic Performer
powered speaker
● Power indicator
● True diversity receiving mode
1
a UHF band,
3
2

PRODUCT DESCRIPTION

Insert the wireless receivers into the Ac-
tive Performer Speakers to allow them
to receive signals sent by the wireless
transmitters. These modules should be
inserted and fixed into the right hand side
(when facing the rear of the speaker)
compartment at the top of the speaker,
and screwed into place with an M3x4
screw.

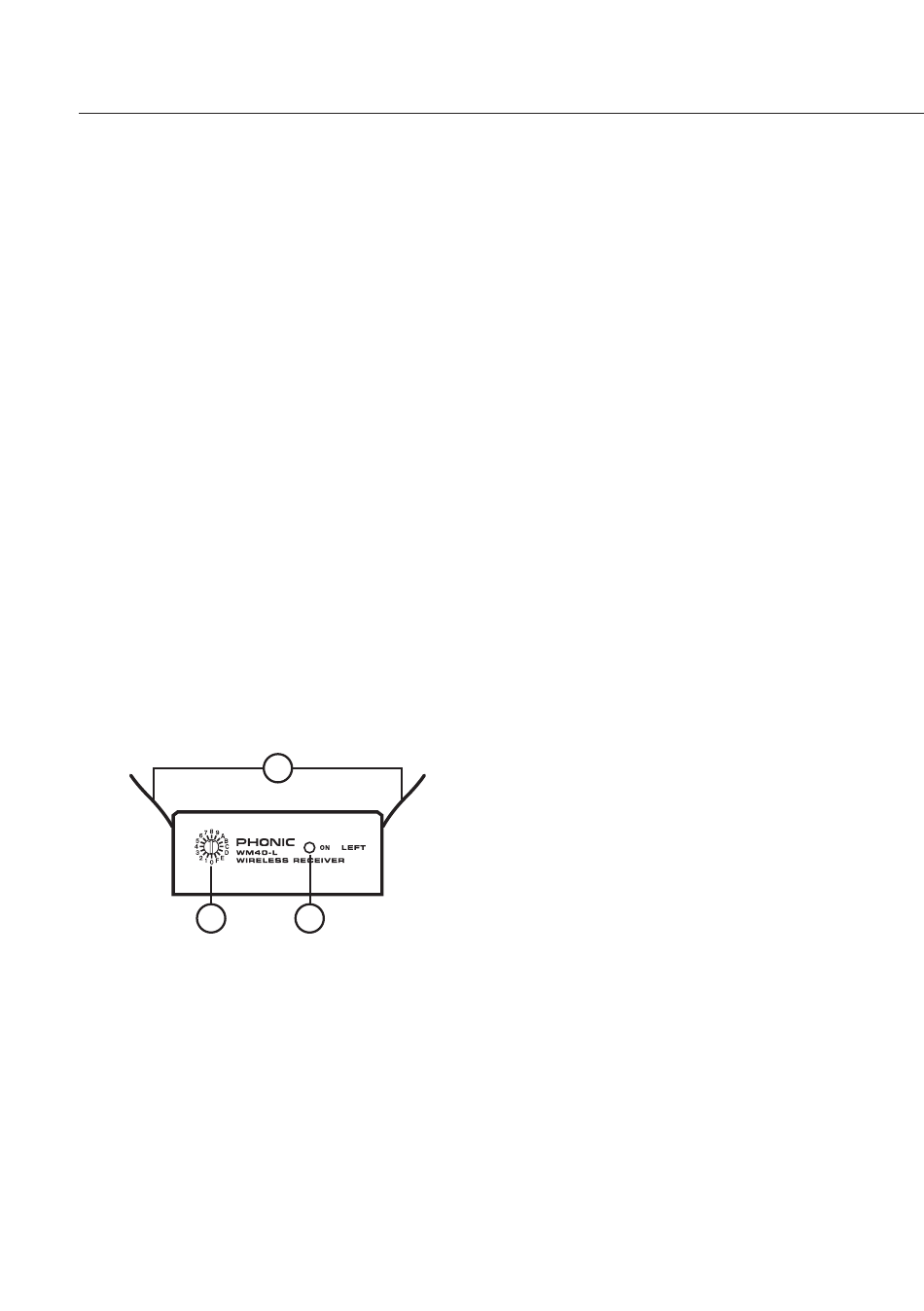

1. Channel Selector – adjusting this
dial to one of the preset channels
allows the WM40 to know which
frequency to look for the wireless in-
formation. The wireless transmitter
should be set to the identical chan-
nel if transmission is to occur suc-
cessfully.
2. On Indicator – this LED indicator il-
luminates when the WM40 Receiver
is powered.
3. Antenna – The wireless receiver's
antenna comes in the form of 2 small
wires protruding from the casing.
When you insert the module into the
appropriate slot on the Performer
speaker, it is best to sticky-tape the
antennas to either side of the com-
partment wall.
