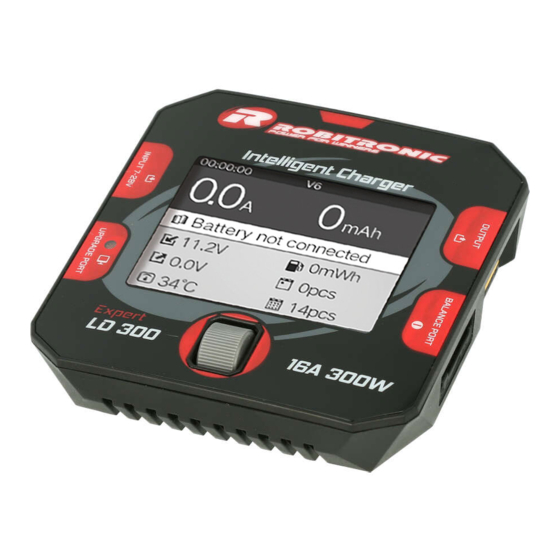

LD300

Thank you for your purchasing the Expert LD300 Charger.This is a rapid charger/discharger

computerised with microprocessor and specialised operating software.Please read this

manual completely and attentively before using.

Intelligent Balance

Charger/ Discharger Manual

Expert

Table of Contents

Need help?

Do you have a question about the LD300 and is the answer not in the manual?

Questions and answers

Summary of Contents for Expert LD300

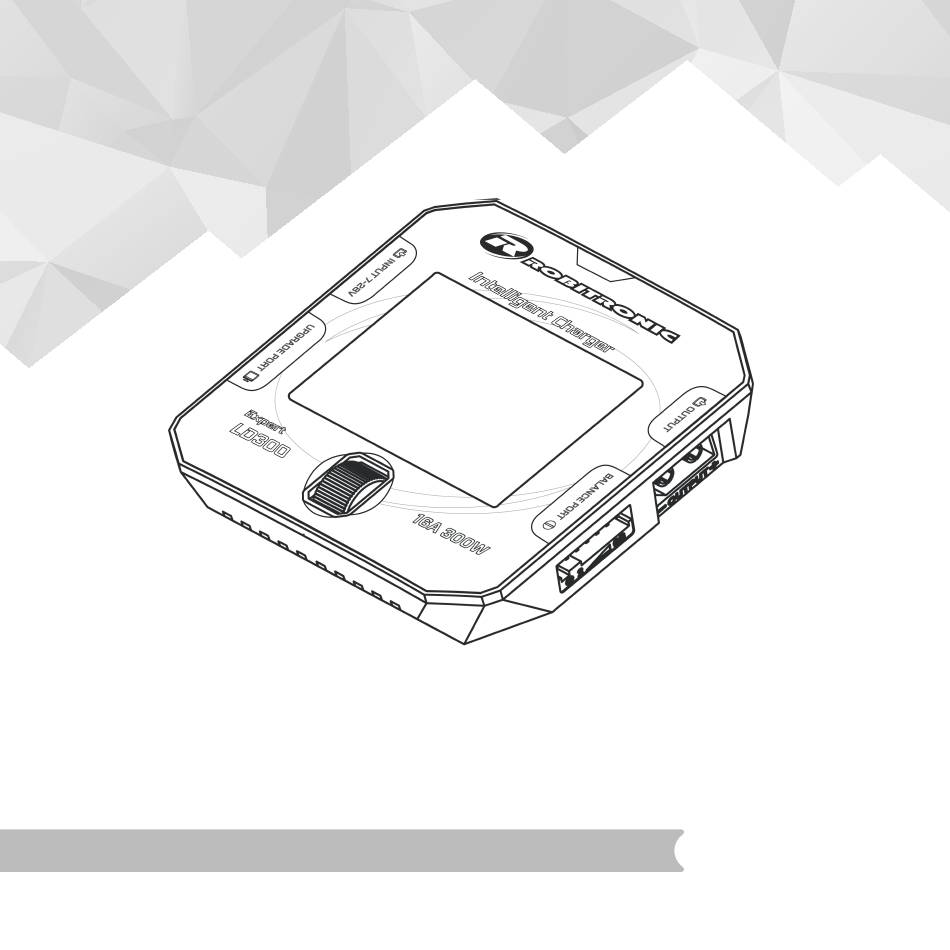

Page 1 LD300 Intelligent Balance Charger/ Discharger Manual Thank you for your purchasing the Expert LD300 Charger.This is a rapid charger/discharger computerised with microprocessor and specialised operating software.Please read this manual completely and attentively before using. Expert...
Page 2: Table Of Contents
Expert Contents 1. Specification ................02 2. Exterior of the unit............... 03 3. Warnings and safety notes............04 4. How to Confirm Charging Current ..........07 5. Charge Mode Selection............... 08 6. Program Setting ................11 7. Showing Screen ................12 voltage level: 1.2V/cell...
Page 3: Specification
LD300 1. Specification DC 7-28V Input Voltage Max.15.0A Input Current 0.1-16.0A Charge Current 0.1-3.0A Discharge Current Max.300W (@Input>21V) Charge Power Max.5.0W Discharge Power Max.1A Balance Current ±0.01V Balance Accuracy NiMH/NiCd: 1-16cells Charging cells LiPo/LiFe/LiIo/LiHv: 1-6cells 2-24V Pb Battery Voltage 80*80*32mm...
Page 4: Exterior Of The Unit
Expert 2. Exterior of the unit Select key Screen Select key Long press: Enter system setting / Input port Balance port terminate current task Update port Battery port Short press: Enter task setting / confirm Opto-sensor current setting Horizontal scroll: Select menu...
Page 5: Warnings And Safety Notes
LD300 3. Warnings and safety notes • Do not use the charger in unattended; in case of any functional abnormity, please stop using it and refer to the manual. • Keep the charger away from dust, damp, rain and heat, direct sunshine place.
Page 6 Expert voltage level: 1.2V/cell NiCd/ allowable fast charge current: 1C~2C (depends on the performance of cell) NiMH 0.85V/cell (NiCd), 1.0V/cell (NiMH) discharge voltage cut off level: voltage level: 3.6V/cell max.charge voltage: 4.1V/cell Lilo allowable fast charge current: 1C or less min.discharge voltage cut off level:...
Page 7 3.3V/cell max.charge voltage: 3.6V/cell LD300 LiFe allowable fast charge current: 4C or less(e.g. A123M1) discharge voltage cut off level: 2.0V/cell or higher voltage level: 3.8V/cell max.charge voltage: 4.35V/cell LiHV allowable fast charge current: 1C or less min.discharge voltage cut off level: 3.0V/cell...
Page 8: How To Confirm Charging Current
Expert said to suffer from memory effect. They prefer complete cycles; fully charge then use until empty, do not recharge before storage-allow them to self-discharge during storage. NiMH batteries have less memory effect than NiCd. • The Lithium battery prefers a partial rather than a full discharge. Frequent full discharges should be avoided if possible.
Page 9: Charge Mode Selection
LD300 charging current would be 2000*5=10000mA; therefore, the maximum charging current is 10A. For lithium battery, if it can not confirm the supported charging C value, please set the Program settings charging current below 1C for the sake of 15.8 A Battery type safety.
Page 10 Expert Balance Charge Fast Charge Discharge Storage Charge Mode Mode Mode Mode Mode LiPo/LiFe/      LiIo/LiHv      NiMH/NiCd      Li-XX Battery Balance Charge Mode decrease the CV and balance process.
Page 11 (Lead- allowable fast charge current: 0.4C or less acid) discharge voltage cut off level: 1.50V/cell or higher LD300 Program settings rest capacity of battery or the healthy condition of battery. To avoid BalanceCharge Battery type over-discharging, please set up the right...
Page 12: Program Setting
Expert voltage; on the other hand, it should be adjusted to a rated voltage for charging when the cell voltage is higher than the pre-charge voltage. This design can protect excessively discharged batteries, as well as conduct activation and restoration.
Page 13: Showing Screen
LD300 Battery type LiPo, LiFe, LiIo, LiHv, NiMH, NiCd, Pb Select Mode Balance Charge, Charge, Fast Charge, Discharge, Storage End Voltage slight adjustment, rang ±0.05V; End Voltage Discharge End Voltage slight adjustment, rang ±0.3V Cell Count Li-XX battery: 1-6cells, NiMH/NICD: 1-16cells, PB: 1-12cells Current Setting Charge current: 0.1-16A , Discharge current: 0.1-3A...
Page 14 Expert Fast balance charge status: Program operation Battery percentage 00:00:39 time Capacity charged Current Working status LiPo-6S Balance Charging Total output energy after power Input Voltage/ Power 11.2V/240W 1.79Wh Finished charging times after power Output Voltage/Power 22.5V/225W 0pcs 70℃ 2pcs...
Page 15 LD300 Program operation Battery percentage 00:10:18 time Capacity charged Current Working status LiPo-6S Balance Charging 2.3mΩ 2.3mΩ 2.4mΩ 2.4mΩ Each battery IR value 2.3mΩ 2.3mΩ Accurate Balance Status: Program operation Battery percentage 00:10:18 100% time 3.88 Capacity charged Current Working status LiPo-6S Bal.Charging done...
Page 16: 2C Depends On The Performance Of Cell Nimh Allowable Fast Charge Current: 8. System Setting
Expert Charging finished adjustment During the charging process, the screen displays to Green, which turns into Blue as the charging is finished. When the charging finished, the cells’ voltage difference should be smaller than 10mV, while the screen turns into Blue. The charger should continue to carry out accurate balancing of the battery after the light turns Blue.
Page 17 LD300 protect the battery from excessive Max input power limitation discharge. When the input power fails to reach the max working power (330W), it need to set Buzzer volume this parameter based on the actual output When it setting to OFF, the operation...
Page 18: Alarm And Error Inforamtion
Expert 9. Alarm and Error Inforamtion It combines with various protective functions and monitor systems to verify its electronic functions and status. The screen will display the error instructions with a warning sound if anything works wrong. 1. "Battery type select error!"...
Page 19: Warranty And Service
LD300 check the battery voltage one by one. 10. Warranty and Service 9. "Balance port connect break!" We warrant this product for a period of one year (12 months) from the date of Battery balance cable and charger purchase. The guarantee applies only to disconnected, please check the balance material or operational malfunctions.
Page 20 Expert...
