Summary of Contents for SJE Panel Link Light

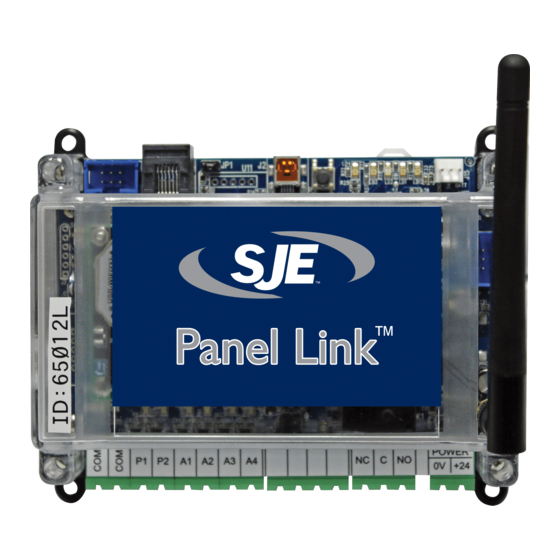

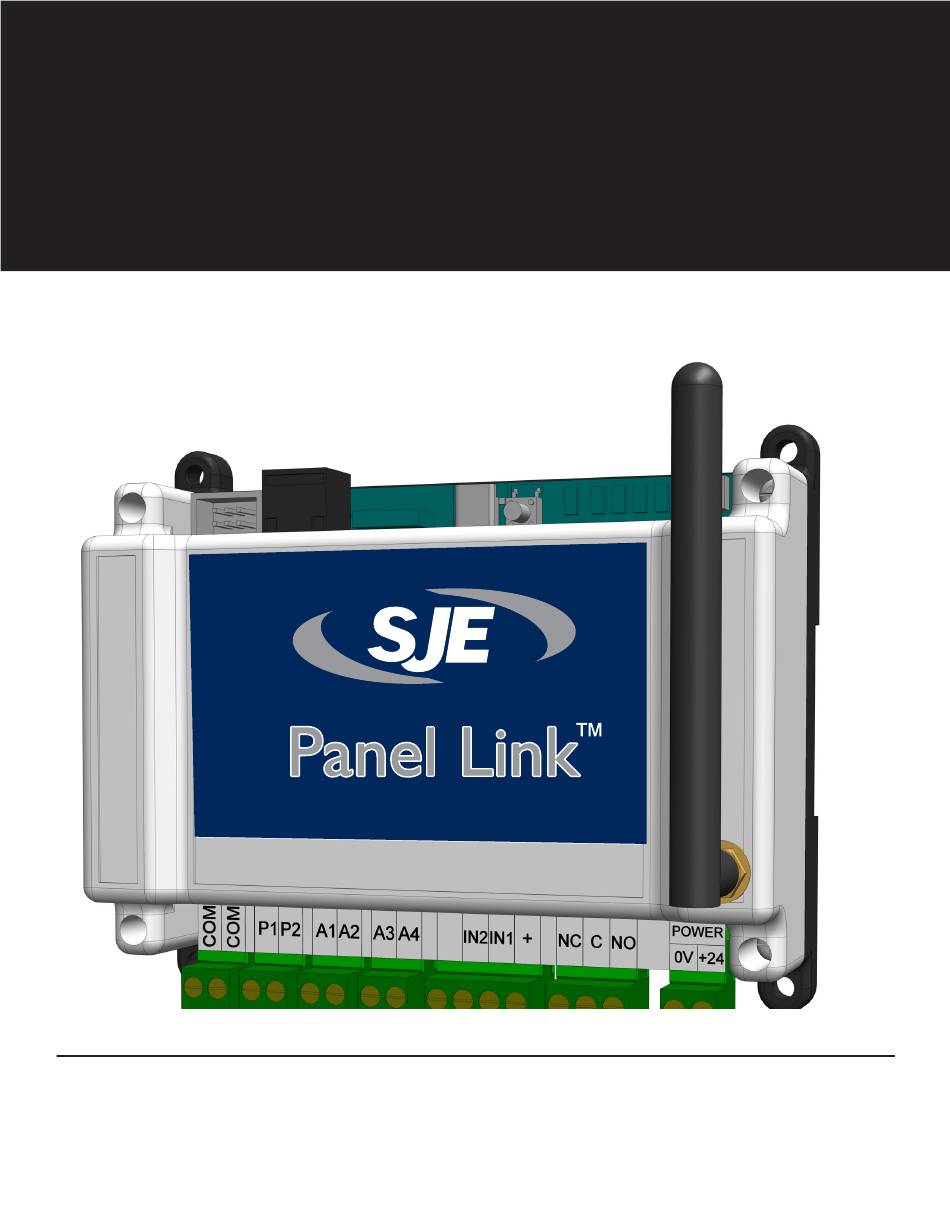

- Page 1 SJE PANEL LINK ™ WEB-BASED CELLULAR REMOTE MONITORING CONTROL PANEL User Manual...
- Page 2 ELECTRICAL SHOCK HAZARD A qualified service person must install and service this product according to applicable codes and electrical schematics. Disconnect power prior to servicing an equipment with the SJE Panel Link RTU. ™ • Do not connect power to this equipment if it has been damaged or has any missing parts.
-
Page 3: Table Of Contents
™ Ordering Information ...................2 Activation and Service ................4 Receiving and Inspection................5 SJE Panel Link RTU Features ..............6 ™ Mounting the SJE Panel Link RTU ............7 ™ Activating the Battery .................. 8 Wiring ......................9 Schematic ....................10 Sensor Wiring ...................11 Mounting the Panel/Dimensions and Mounting ........12 Wiring Methods ..................13... -
Page 4: Sje Panel Link ™ Rtu Introduction
INTRODUCTION Designed for municipal wastewater lift stations and similar applications, the SJE Panel Link is a simple ™ and effective RTU for management of a wastewater collection system via a cellular network. Alarms are monitored and service personnel notified in the event of a failure. -
Page 5: Ordering Information
The RTU module can be supplied for direct panel mounting, or pre-assembled in NEMA 4X enclosure for outdoor mounting near an existing panel. Note: SJE Panel Link units include 1 year of cellular service, small antenna, & user manual. ™... - Page 6 Antenna Options Standard Antenna Included with every SJE Panel Link unit ™ suitable for installation of the module in a Fiberglass or Thermoplastic enclosure Small Antenna 1038339 - 3DB Antenna, with 1m cable IP67 Compliant Can be mounted directly to the panel (through the top or side enclosure wall).
-
Page 7: Activation And Service
This form provides contact and billing information to AMI (Service Company). This will allow them to contact the End User directly with service renewal options after the initial period is complete. A login and password will be setup to grant access to the SJE-Rhombus (www.sjerhombuslogin.com) web portal. https://www.sjerhombus.com/products/sje-panel-link/... -
Page 8: Receiving And Inspection
RECEIVING AND INSPECTION SJE Panel Link Light SJE Panel Link Premium ™ ™ SJE Panel Link SJE Panel Link ™ ™ Light Unit ID No analog terminals Premium Unit ID Two analog inputs SJE Panel Link Gateway ™ SJE Panel Link ™... -
Page 9: Sje Panel Link ™ Rtu Features
SJE PANEL LINK™ FEATURES Battery ON/OFF (GATEWAY) BATT ON OFF 4 3 2 1 12 POWER SJE Panel Link RTU User Manual ® ™... -
Page 10: Mounting The Sje Panel Link Rtu
MOUNTING THE SJE PANEL LINK ™ 5.5”W x 4.5”H x 3.5”D (with antenna at 90 degrees as shown) Can be din rail mounted or panel mounted with 4 screws. SJE Panel Link RTU User Manual ® ™... -
Page 11: Activating The Battery
ACTIVATING THE BATTERY Battery Connection The SJE Panel Link module is equipped with a small Li ion battery. This battery will ™ enable operation during power loss (24 Vdc) and send out alert notifications for power loss and any digital input alerts. Note: The battery is not able to power the 4-20mA loop sensor (Digital inputs only). -
Page 12: Wiring
WIRING SJE PANEL LINK PREMIUM RTU SCHEMATIC ™ BACKUP BATTERY CONNECTION SJE PANEL LINK ™ TORQUE TO: 4.4-7.1 IN-LBS 24 VDC PUMP 1 RUNNING Supply PUMP 2 RUNNING Power REMOTE ALARM 1 ACTIVATION ALARM 2 CONTACTS ALARM 3 (NON-POWERED) ALARM 4... -
Page 13: Schematic
PUMP 1 PUMP 2 PUMP 3 PRESS FOR ENTER When using the SJE Panel Link Gateway with the TPC-X controller, the following functions are ™ not available: • Current monitoring (there is no analog input on the conroller for motor Amps). -
Page 14: Sensor Wiring
These must be wired for each pump. Motor contactor auxiliary contacts for reference only. Actual contactor configuration may differ. SJE Panel Link RTU User Manual ® ™... -
Page 15: Mounting The Panel/Dimensions And Mounting
MOUNTING THE SJE PANEL LINK PANEL ™ Mount the SJE Panel Link panel using a solid base such as treated posts with a treated plywood ™ overlay. Mounting on Unistrut or other metal structure is also common. Please use the appropriate hardware for securely anchoring the panel to the metal structure. -
Page 16: Wiring Methods
Liquid-tight Conduit Liquid-tight conduit conduit fittings Use liquid tight fittings and conduit to run cables between the SJE Panel Link and the ™ Lift Station control panel. Do not run conduit from the SJE Panel Link to the wet well. -
Page 17: System View
SYSTEM VIEW SJE PANEL LINK INSTALLATION EXAMPLE ™ SJE Panel Link RTU User Manual ® ™... -
Page 18: Wiring
WIRING SCHEMATIC PANEL LINK ™ Panel Link™ * SJE Panel Link Premium is shown above. See pages 8 and 9 for additional versions. ™ SJE Panel Link RTU User Manual ® ™... -
Page 19: Sje Panel Link ™ Troubleshooting
SJ PANEL LINK™ TROUBLESHOOTING SJE Panel Link Indicating LED on the ™ BATT ON OFF Function LED (top of RTU) LD12 Green - External power (24Vdc). (Right) 4 3 2 1 12 LD1 Green - Cellular Modem Power. LD2 Blue - Connecting to Cellular network (on power up). -
Page 20: Logging In
AMI will contact you directly and review renewal options. The primary User (Account Admin) will be able to add additional Users for login and alarm notification. The cellular service plan provided with the Panel Link only covers text (SMS), and data for the SJE Panel Link unit. It does not cover SMS and ™... -
Page 21: Access Levels
Note! You may have multiple Account Admins and Users per account, but each Account Admin or User can only be assigned to one Account. Dealer Account Admin User With privileges assigned With privileges assigned Account Admin and User can work within assigned account only SJE Panel Link RTU User Manual ® ™... -
Page 22: Viewing/Searching For Rtus
(the next section explains how to place the RTU on the map). Click on a controller to see the device ID and other pertinent information. To select an RTU, click on the RTU icon. FROM LIST SJE Panel Link RTU User Manual ® ™... - Page 23 SEARCHING AND SORTING BY RTU ID OR NAME Select the “List” view from the Dashboard to search devices based on any of the top row items: Device ID, Device Name, Account Name, etc. SJE Panel Link RTU User Manual ®...
-
Page 24: Placing An Rtu On The Map
PLACING A CONTROLLER ON THE MAP (Dashboard - Map View) • Click and release the unallocated device, then click on the map to drop. Drag and drop to the desired location then save. SJE Panel Link RTU User Manual ® ™... -
Page 25: User Setup
If the user account is not verified, the notification will not be sent to that user. SJE Panel Link RTU User Manual ®... -
Page 26: Dashboard
Ensure that the RTU has been properly configured. The functionality of this system is dependent on the setup of the RTU. *The data on the screen may not display the latest RTU values. Use the “Get Status” button to read the most current values. SJE Panel Link RTU User Manual ®... -
Page 27: Rtu Setup
Click on the Setup button on the top row of the Main Screen to enter the RTU edit screen. General Setup Click to store changes. It will take a few seconds to take effect. SJE Panel Link RTU User Manual ® ™... -
Page 28: Online/Offline Trigger Alert Setup
ONLINE/OFFLINE TRIGGER ALERT SETUP The SJE Panel Link has the ability to alert the user when the RTU transitions from online to offline and ™ offline to online. Click on the tab on the setup screen to setup the online and offline triggers. -
Page 29: Rtu Visualization
Pump Data Wet Well Level 1 P1 & P2 GPM 1 Relay Button (Relay will activate for 2 sec) Available on “Premium” versions on the SJE Panel Link only. ™ ALARMS Light Version Alarm 1-4: These alarms become active upon a contact closure (see wiring schematics). The label “Alarm 1”... - Page 30 P1-2 Amps: Pump Current snapshot captured 30 secs after motor start by the current transducer. Not available when using the TPC-X controller. P1-2 Cycles: The number of start cycles occurred since midnight. Note: When using the SJE Panel Link Gateway with the TPC-X controller, this value is the previous 24h accumulated cycle ™...
-
Page 31: Main Screen Configuration
This function enables you to change the text on the screen to match the function of the alarm assigned in the field. Example: You can now edit the text labels with the boxes. To save changes press , to cancel edits press SJE Panel Link RTU User Manual ® ™... -
Page 32: Station Parameter Configuration
This function is useful if only one user is on standby, and may not be able to respond in a timely manner. Press after edits to store values to the RTU. SJE Panel Link RTU User Manual ® ™... - Page 33 Delay” time is used to avoid nuisance tripping. This alarm requires the user to click on the button to clear. Note: Setting values to “0” in the alarm setup will disable the alarm function. SJE Panel Link RTU User Manual ® ™...
- Page 34 FLOW MONITORING SETUP (PREMIUM) Volumetric flow measurement is available when a level transducer is used in a cylindrical tank. The SJE Panel Link unit calculates the volume of liquid based on the level. The flow is calculated by ™ using the volume and the fill/discharge times. The in-flow and the discharge flow is measured. The Flow Calc.
-
Page 35: Alarm Notification Setup
In addition to the original SMS message you can assigned escalated users. The escalation can happen 2 ways, forced or timed. The forced will be initiated by the users who receive the initial SMS by texting a code that will escalate to the assigned user. SJE Panel Link RTU User Manual ®... -
Page 36: Connecting Alerts To Users
Type in the Alert text message that will be delivered. You do not need to include the name of the station in the text as it is always sent as part of the notification. SJE Panel Link RTU User Manual ®... - Page 37 Boost - cellnumber@myboostmobile.com cellnumber@message.alltel.com Alltel - Example: If your phone number is 111-333-222, and you are with Verizon, the email you should enter to receive a text for notification is 1113332222@vtext.com SJE Panel Link RTU User Manual ® ™...
- Page 38 1/10/2014 8:26 youremail@server.com Alert Controller # [7160] LS #10 St Pete Beach #1 Fault Acknowledged 1/10/2014 8:29 1/10/2014 8:29 youremail@server.com Alert Controller # [7160] LS #10 St Pete Beach #3 Power Fail SJE Panel Link RTU User Manual ® ™...
-
Page 39: Reports & Trending
Click on the “Report” icon on top of the screen and select the type of report to view. Example. Click on Graph then select In-Flow GPM to view chart.. SJE Panel Link RTU User Manual ®... - Page 40 You can view all graphs at the same time. Click on the data labels below the graph to turn OFF the pens you do not wish to display. This enables you to compare data. Example P1 and P2 Amps. Click on label Click on to view export options. to turn OFF pen. SJE Panel Link RTU User Manual ® ™...
- Page 41 To view accumulation data, select “Accumulation”. This function is used to view Run times & Cycles on select versions. When you are finished with your session, please logout of the system. SJE Panel Link RTU User Manual ® ™...
-
Page 42: Customer Service Agreement And Terms Of Use
Users for login and alarm notification. The cellular service plan provided only covers text (SMS), and data for the SJE Panel Link™ unit. It does not cover SMS and Data service charges incurred for the use of your personal cell phone or tablet. - Page 43 A. To indemnify, defend and hold harmless AMI, its owners, directors, officers, employees, agents, suppliers or affiliated companies, against any and all claims, demands or actions based upon any losses, liabilities, damages or costs, whether direct or indirect, special or consequential, including attorney’s fees, that may result from the operation of AMI's products and services, or from the failure of the AMI system to report a given event or condition B.
- Page 44 Manufactured by: SJE Inc. Technical support: +1 800-746-6287 techsupport@sjeinc.com 22650 County Highway 6 Detroit Lakes, Minnesota 56501 USA www.csicontrols.com www.primexcontrols.com www.sjerhombus.com © 2019 SJE, Inc. All Rights Reserved. PN 1052700B 04/19...
