Summary of Contents for EDAN MT-206
- Page 2 Table of Contents 目 录 Installation Guide ..................1 安装指南 ....................9...
- Page 3 MT-206/MT-207 Trolley Installation Guide WARNING 1 Assembling or disassembling of the Trolley should be performed by service personnel authorized by the manufacturer. 2 The maximum load of the top splint is 8 kg. Do not put heavy objects on it or lean on it.

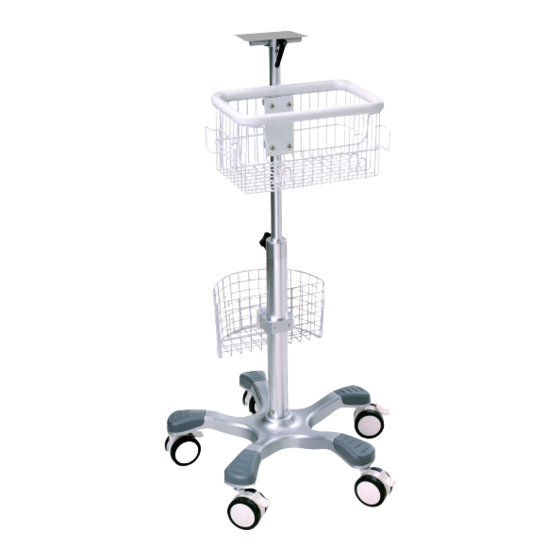

- Page 4 MT-206/MT-207 Trolley Installation Guide Caster Chassis Handrail basket Top splint and link board Stand post - 2 -...
-
Page 5: Major Parts
MT-206/MT-207 Trolley Installation Guide Major Parts M3/M3B top splint assembly iM9/iM8 series top splint assembly M3/M3B link board assembly iM9/iM8 series link board assembly Handrail basket Lower basket (optional) Basket flange(optional) Stand post Accessories D.E.F I (M3) I (iM9) - 3 -... - Page 6 MT-206/MT-207 Trolley Installation Guide Accessories: Item Description Qty. (pcs) Spares (pcs) Ф12 Normal type spring washer Ф12 Normal type plain washer 3-inch Medical caster M10×50 bolt Ф10 Normal type spring washer Ф10 Normal type plain washer M6×25 spacing bolt Cross recessed pan head screw M5×14 M4×25 Cross recessed countersunk head...
- Page 7 MT-206/MT-207 Trolley Installation Guide Procedure for Assembling Trolley: 1 Open the package and collate all the parts with the packing list. 2 Take the chassis assembly out and upturn it on the packing foam. Put an A washer and then a B washer on the bolt for each caster.
- Page 8 MT-206/MT-207 Trolley Installation Guide 5 The top splint and link board are assembled together in package. Pull downwards the pin on the top splint, hold to slide them apart. Angle adjustment 6 Loosen two screws on the top splint to take off the rotary axis, then pull the rotary axis through the flange hole of lifter rod.
