POWERING A SMARTER WORLD
FacePass 7
Touchless Face Recognition and Inf rared
Thermal Temperature Detection Terminal
Quick Guide
Anviz brand and product are trademarked and protected under law of the United States.
Unauthorized use is prohibited.
For more information visit www.anviz.com, or email marketing@anviz.com for further help.
©2020 Anviz Global Inc. All Rights Reserved.
V1.0
IRT
Advertisement
Table of Contents

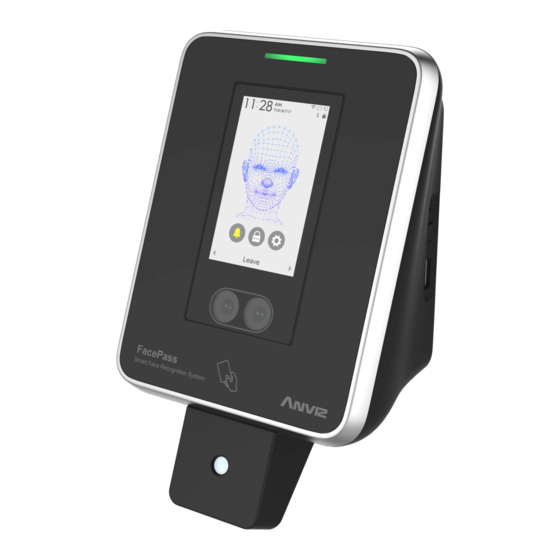

Summary of Contents for Anviz FacePass 7 IRT
- Page 1 Thermal Temperature Detection Terminal Quick Guide V1.0 Anviz brand and product are trademarked and protected under law of the United States. Unauthorized use is prohibited. For more information visit www.anviz.com, or email marketing@anviz.com for further help. ©2020 Anviz Global Inc. All Rights Reserved.
- Page 2 In order to protect the environment, Anviz has decided to go "CD Free" campaign since June 1st 2019. We will provide QR code for you to download the electronic documents to make sure that you understand how to install and use Anviz devices.
- Page 3 Notice ！ Do not permits oily water or sharp tools to stain or harm the display screen. Delicate parts are utilized in the device, so please abstain from falling, crashing, bending or heavy pressing the terminal. The product and display screen are designed to be used in an indoor environment.
-
Page 4: Recommended Installation Environment
The recommended face recognition distance is 30-80cm. The best adaptive ① angles are ±20° both horizontally and vertically. The recommended installation height is 120cm, where the FacePass 7 IRT can ② recognize enrolled faces from 145cm to 195cm. Please specify the position of the... -
Page 5: Installation Diagram
Installation Diagram: 195cm 120cm 145cm Floor Fig.(1) Installation Position 30cm 50cm Step 2：Installation Steps Place the backplate at the ③ appropriate position and fix screws into the wall according to the mounting holes. Fix backplate and connect cables. ④ Put the device on. ⑤... -
Page 6: User Enroll
User Enroll Quick Face Registration 8213 Face enroll successfully. ID:8213 Lease center your face in the fram Lease center your face in the fram Lease center your face in the fram NEXT ② Click “Enroll Keep face in the center of the detection frame, according to the Face”... -
Page 7: Communication Setting
Communication Setting PING FacePass 7 IRT IP Set Ethernet or WiFi Click“Network”option address on a Click“Network\Comm parameters based on to enter network management Mode”to select server your network setting page, then computer to make or client mode. environment. select Ethernet or... - Page 8 Mask Recognition and Body Temperature Detection Setting Enter Mask Setting Page Enter the main page and click ‘Advanced’-> ‘Temperature’ to enter the Mask/Temperature setting page. Main Advanced Temperature Temp.Settings Mask Settings Enroll Face User T&A Application Data Network Mode Settings Advanced Auto FN Temperature...
- Page 9 Body Temperature Detection Setting In "Replay Output" Setting, you can let the relay trigger the door for normal temperature and trigger an alarm output for abnormal temperature. You can modify the "TEMP. Rectify" to adjust the deviation to match the exact temperature, and this value is displayed on each terminal temperature module.
-
Page 10: Switching Power Supply
Door Sensor Bell Power on to unlock 7. Wiring Type Access Controller SC011 and the FacePass 7 IRT device are authorized by Anviz wiegand to form a distributed access control system. Please contact sales@anviz.com for more information. Power off to unlock...
