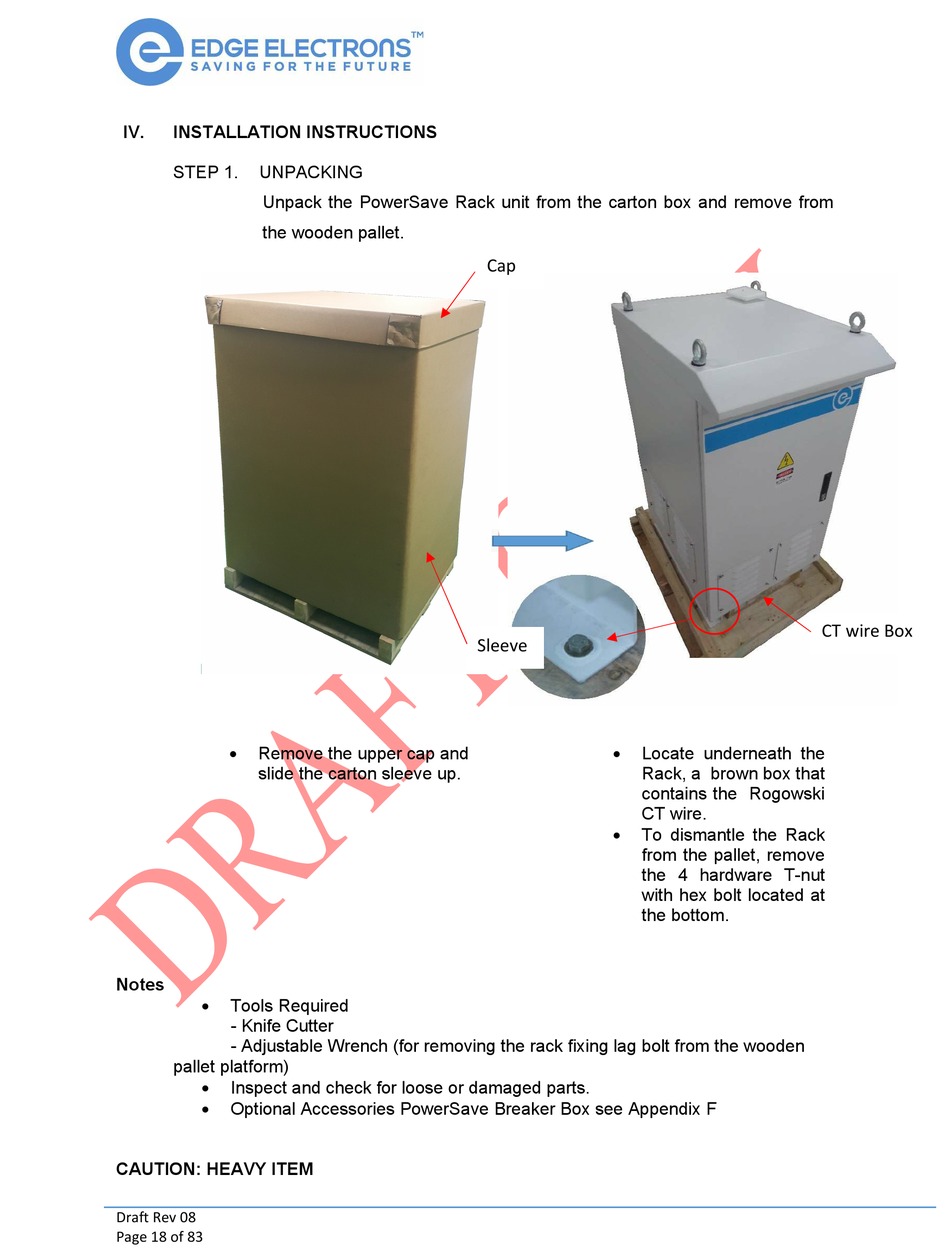

IV.
INSTALLATION INSTRUCTIONS
STEP 1.
UNPACKING
Unpack the PowerSave Rack unit from the carton box and remove from
the wooden pallet.
Remove the upper cap and
slide the carton sleeve up.
Notes
Tools Required
- Knife Cutter
- Adjustable Wrench (for removing the rack fixing lag bolt from the wooden
pallet platform)
Inspect and check for loose or damaged parts.
Optional Accessories PowerSave Breaker Box see Appendix F
CAUTION: HEAVY ITEM
Draft Rev 08
Page 18 of 83
Cap
Sleeve
Locate underneath the
Rack, a brown box that
contains the Rogowski
CT wire.
To dismantle the Rack
from the pallet, remove
the 4 hardware T-nut
with hex bolt located at
the bottom.
CT wire Box
Advertisement
Summary of Contents for Edge Electrons PowerSave
- Page 1 INSTALLATION INSTRUCTIONS STEP 1. UNPACKING Unpack the PowerSave Rack unit from the carton box and remove from the wooden pallet. CT wire Box Sleeve Remove the upper cap and Locate underneath the slide the carton sleeve up. Rack, a brown box that contains the Rogowski CT wire.
- Page 2 Please refer to your manual handling procedure. Use mechanical lifting devices whenever possible Draft Rev 08 Page 19 of 83...
- Page 3 Open the rear door panel. Locate the two panel latch as shown. Unpack the plastic bag containing the Accessories pack. Underneath the rack is the CT wire with 30meter extension. Note: For Optional Accessories PowerSave Breaker Box see Appendix F Draft Rev 08 Page 20 of 83...
- Page 4 Note: Do not use PowerSave Rack in case of any breakage or loose connections. Refer to packing list (page 14). Please remove loose contents including accessories pack and Rogowski pack. Please advise edge electrons if any parts missing. STEP 3.
-
Page 5: Field Installation
1. Ensure the minimum spacing required for the rack for proper ventilation. STEP 6. FIELD INSTALLATION A. Locate the magnetic mount antenna by removing the protective foam on top of the rack. Install the included stick antenna by screwing it into the threaded end of the magnetic mount in clockwise direction as shown. - Page 6 C. Connecting the Wires to the Busbars. D. Connecting Earth Wire on the Ground strip. Earth Wire Ground strip Install the Earth wire with the Terminal Lug on the specified M10 nut location as shown Tightening Torque: 25 N-m Draft Rev 08 Page 23 of 83...
- Page 7 RED BAND BUSBAR = L1 WHITE BAND BUSBAR = L2 BLUE BAND BUSBAR = L3 BLACK BAND BUSBAR =NEUTRAL CONNECT EARTH WIRE TO THE METAL GROUND STRIP CAUTION: NEUTRAL CONNECTION NEEDED FOR AUXILIARY POWER Draft Rev 08 Page 24 of 83...
- Page 8 STEP 7. CT INSTALLATION / ROGOWSKI INSTALLATION 1. For three (3) CT setup, see page 40. IMPORTANT: POSITION AND DIRECTION OF THE CT MUST BE CORRECT. SEE DRAWING BELOW. (Please include the direction of CT in the drawing) Diagram for Three(3) CT configuration Note: CT1 (Red) wiring connection is in L1.
- Page 9 STEP 8. Wiring Check - Perform visual inspections of all wiring to ensure cables are undamaged and adequately protected. Ensure all fixings are secure before proceeding. STEP 9. Checking number of AIR FILTER before Commissioning - Filters are pre-installed Important: Cleaning the Filter every 1 month or regular cleaning depend on the environment 1.
- Page 10 4. Repeat the process on other vent covers. Note: Total of 6 vent in 1 rack Note: Total filter installed are 6 pcs. if there a filter missing pls. call EDGE representative. STEP 10. Install polycarbonate Polycarbonate STEP 11. Optional – install Optional Breaker Box Draft Rev 08 Page 27 of 83...
- Page 11 Box 400A Kit Optional Breaker Box 250A Kit Half Rack Full Rack Note: Details of Optional Accessories PowerSave Breaker Box see Appendix F STEP 12. Bolt on the floor. Recommended bolt size and tools needed Draft Rev 08 Page 28 of 83...
- Page 12 Use Anka Screw Screw-In Anchors (AS12075), refer to manufacturer regarding the hole size and its depth. CAUTION: PRODUCT VENTILATION SHOULD NOT BE OBSTRUCTED AND OBJECTS SHOULD NOT BE PLACED ON OR IN THE UNIT. 10cm SPACING AROUND THE UNIT SHOULD BE MAINTAINED AT TIMES.
- Page 13 The Rack temperature difference from outside bottom inlet and top exhaust will be maintain by lower than 10°C. To meet this requirement, the PowerSave rack and PowerSave Power Module Fan design for a minimum air flow of _____m3/H inside the rack.
