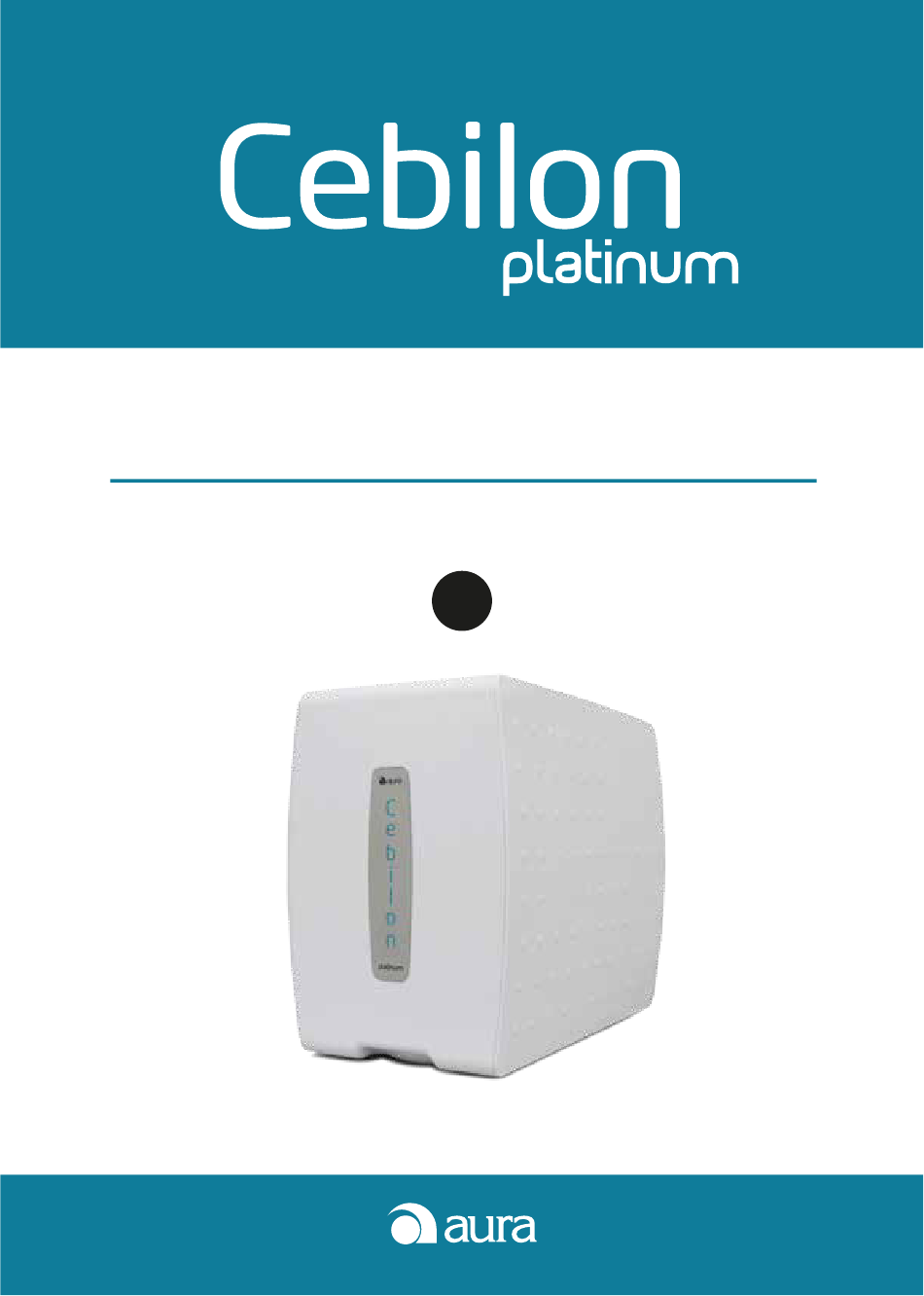

- Page 1 REVERSE OSMOSIS SYSTEM Cebilon Platinum with pump Operating and maintenance instructions Before installing and using the system, please read these instructions carefully.
-
Page 2: The System Components
We thank you for choosing our reverse osmosis system. Our Cebilon Platinum reverse osmosis system is available in 2 versions. · Cebilon Platinum reverse osmosis system · Cebilon Platinum reverse osmosis system with pump We recommend that you have the installation carried out by quali ed personnel. -
Page 3: Component Functions
COMPONENT FUNCTIONS The 5- m sediment lter removes the materials and particles oating in the water. The activated carbon granulate lter (GAC) lters out organic materials and unwanted odors. The 1- m sediment lter removes the rest of the particles to ensure the correct functioning of the membrane. The membrane is where the phenomenon of reverse osmosis occurs. - Page 4 In order to generate a suitable outlet pressure for the clean water and to store it under ideal disinfection conditions, the clean water tank has an inner surface which is covered with a plastic material suitable for foodstu s. With the clean water tank valve you can open and close the water inlet to the clean water tank.
-
Page 5: Technical Specifications
Cebilon Platinum reverse osmosis system contains components that need to be replaced regularly in order to e ciently lter the dissolved solids (TDS) from the water. To check the e ciency of the system, check the water in the system regularly. -
Page 6: Operating Principle
The system is very easy to use and the water pipe system can be easily installed anywhere. The installation should only be carried out by a quali ed technician. Cebilon Platinum reverse osmosis system contains components that need to be replaced regularly to e ciently lter the dissolved solids (TDS) from the water. - Page 7 WARNING! 1- Make sure that the installation is protected against possible freezing. 2- Do not intervene in the waste water system. 3- However, if muddy water (clay etc.) comes out of the pipe, close the water inlet valve of the system. 4- If you wish to use a water supply system other than the local water supply system, it must be subjected to a drinking water analysis by the responsible institutions.
-
Page 8: Water Connection
WATER CONNECTION Close the water inlet valve. After the remaining water in the tubes has been drained at the appropriate points, connect the 3-way adapter to the water inlet. Make sure that there are no leaks. First, install the 1/4 " ball valve on the adapter by wrapping it with Te on tape in a position that allows easy opening and closing of the ball valve (Fig. - Page 9 INSTALLATION OF THE TAP Install the tap with regard to use and aesthetics. When drilling through the kitchen worktop or sink, before drilling, make sure that the dimensions are suitable for installing the washers, nuts and joints under the kitchen worktop or sink (Fig. 6). Otherwise, there is a risk that you will carry out the drilling incorrectly.
- Page 10 CONNECTION OF THE WASTE WATER OUTLET To install the waste water outlet, drill into the 8 mm diameter hole of the clamp in the same tube (Fig. 7 b). Connect one end of the 3/8-inch tap to this clamp and the other end to the 3/8-inch outlet. Fig.
-
Page 11: Important Notes
The maintenance of your system should only be carried out by an authorized technician. The service life of the lters used in Cebilon Platinum reverse osmosis systems changes with the amount of water treated, depending on several factors. These main factors are: the quality of the incoming water, the amount of chlorine, the amount of dry residue, etc. - Page 12 RECOMMENDED INTERVALS FOR FILTER REPLACEMENT To use your system e ciently and for a long time, carry out the maintenance regularly and on time. The following replacement intervals apply to lters that are used under normal conditions in the water system. The operating conditions of the lters can change depending on the quality of the in owing water and the amount of chlorine and sediments.
-
Page 13: Technical Data Sheet
TECHNICAL DATA SHEET The Cebilon Platinum reverse osmosis system meets the NSF/ANSI Standard 58 (US standard for point of use (POU) reverse osmosis systems (RO)) for performance standards veri ed with con rmed test data. Do not use water for this system that is microbiologically unsafe, that has not been su ciently disinfected before or after operation or that is of unknown quality. -
Page 14: Troubleshooting And Solutions
TROUBLESHOOTING AND SOLUTIONS Errors Possible causes Recommended solution Air in the system shortly after the rst installation is normal. There are air Sometimes, there may be air from the water supply. bubbles in the water There is air in the system. After a certain operating time, however, this will or the water is decrease.
