Summary of Contents for Setec SKM-03.2

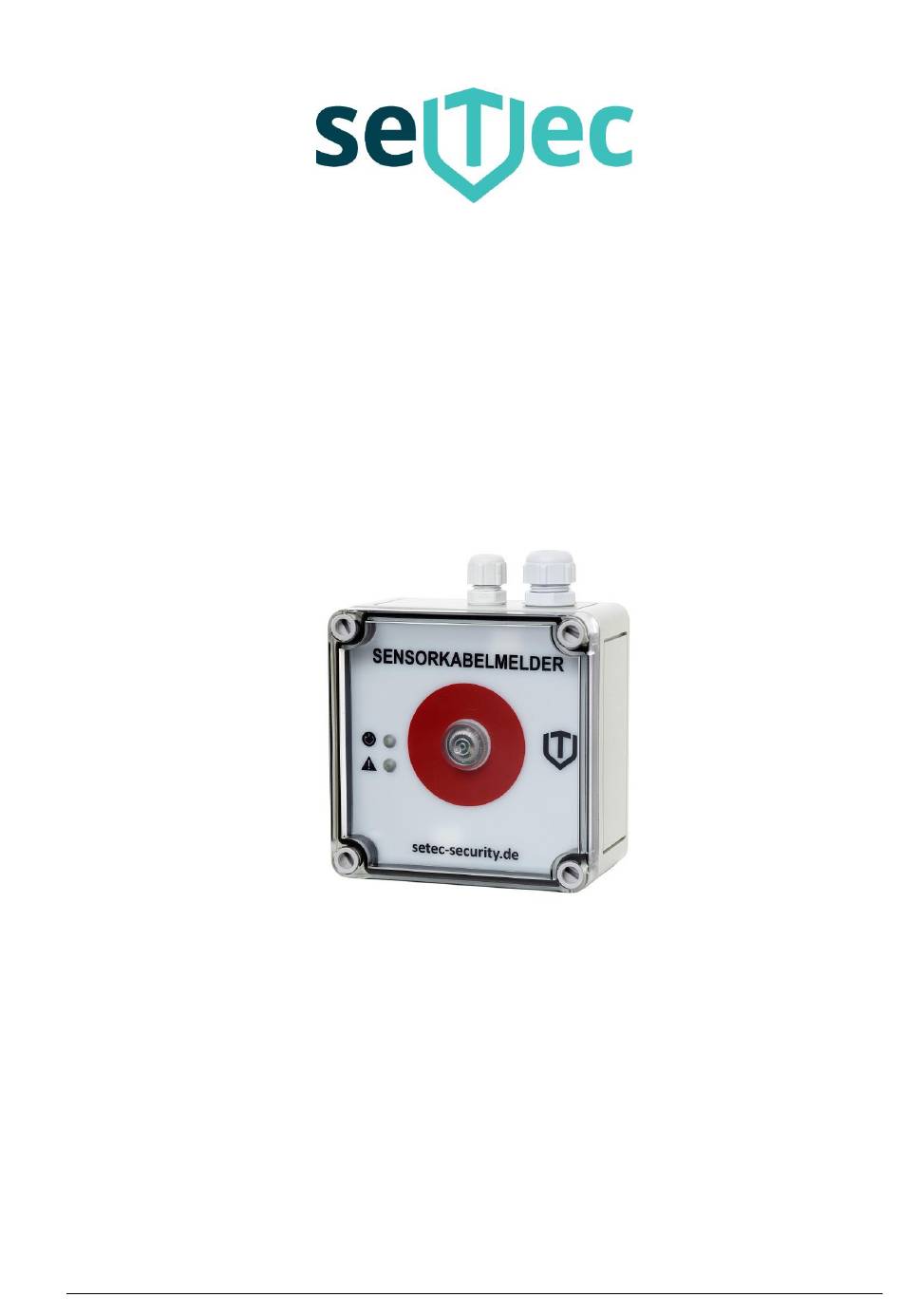

- Page 1 Line-Type Sensor Cable Alarm SKM-03.2 DIN EN54-22:2015+A1:2020 Technical Description Item no. BK83000 VdS G221005 Securitas Electronic Security Deutschland GmbH SeTec Sicherheitstechnik Hauptstr. 40a 82229 Seefeld Issue date: 25.02.2021 SeTec-SKM03.2-Kunde 02TB21-F Page 1 of 23...
-
Page 2: Table Of Contents
4.2.1 Room size from 30m² flat roof up to 20° pitch ..........21 4.2.2 Room size from 30m² flat roof over 20° pitch ..........21 Sensor cable installation ....................... 22 Tips and tricks ....................23 SeTec-SKM03.2-Kunde 02TB21-F Page 2 of 23... - Page 3 Figure 2 Connection SKM-03.2 control unit ............... 9 Figure 3 Front panel SKM-03.2 control unit ..............10 Figure 4 SKM-03.2 termination unit with decal "F" ............16 Figure 5 Connection SKM-03.2 termination unit ............... 17 Figure 6 SKM-03.2 connector unit with decal "F" ............. 18 Figure 7 Connection SKM-03.2 connector unit ..............
-
Page 4: General / Product Features
Technical Description SKM03.2 1 General / product features the SKM-03.2 sensor cable alarm is a line-type heat detector maximum sensor cable length 300 m temperature increases are detected reliably sensor cable resistant to mechanical and chemical influences, corrosion, moisture and dust ... -
Page 5: System Description
Technical Description SKM03.2 2 System description 2.1 Overview Figure 1 Block diagram SKM-03.2 system The SKM-03.2 is a resettable line-type heat detector. The system consists of the components control unit with termination unit BK83000 sensor cable, red BK83001 ... -
Page 6: Technical Data
Operating temperature -25°C to 80°C Connector unit Housing dimensions 82 mm x 82 mm x 52 mm Housing material Polycarbonate, grey Protection class IP66 Operating temperature -25°C to 80°C Table 1 SKM-03.2 technical data SeTec-SKM03.2-Kunde 02TB21-F Page 6 of 23... -
Page 7: Application
(Equipment monitoring) Table 2 Response grades – temperatures 2.4 Static operating principle The measurement principle of the SKM-03.2 is based on measuring temperature-related resistance change. The sensor element consists of a 2-core coaxial cable. The insulating layer between the inner conductor and the cable shielding consists of a semiconductor with increasing conductivity when exposed to heat. -
Page 8: Description Of Components
The lines care routed through the housing and connected to the control circuit board. The function of the control unit is bundled on the SKM-03.2 control circuit board. Optical indicators for operation, fault and alarm are routed through a front panel and to the top of the front panel using light guides, with the transparent housing cover ensuring they are visible. -
Page 9: Connection / Terminal Assignment
Technical Description SKM03.2 3.1.1 Connection / terminal assignment All connections use terminal X1. Figure 2 Connecting the SKM-03.2 control unit SeTec-SKM03.2-Kunde 02TB21-F Page 9 of 23... -
Page 10: Display Elements
Reset line, dry contact 1 Only used if break-off RESET1 jumper removed Table 2 Terminal assignment SKM-03.2 control unit 3.1.2 Display elements On the display end of the control circuit board are the 3 LEDs operation, green ... -
Page 11: Signal Contacts
The alarm LED stays on as soon as the software detects an alarm condition. The alarm LED is ultra bright. 3.1.3 Signal contacts The SKM-03.2 control circuit board has two relays which can be transmitted to an external signalling unit via the alarm and fault contacts. The dry contacts are rated 30W / 62.5VA. Contact Description Active if "no... -
Page 12: Self-Hold Alarm With Reset Function
The system can be briefly switched off to reset the control unit. In addition, a dry contact serving as NC contact can be connected via terminals RESET1 and 2. An electronic system SeTec-SKM03.2-Kunde 02TB21-F Page 12 of 23... - Page 13 If the break-off jumper is accidentally broken off or damaged or the control unit is later used for a different purpose, the bridge must be restored with a wire connection between RESET1 and 2 if the self-hold function is required. SeTec-SKM03.2-Kunde 02TB21-F Page 13 of 23...
-
Page 14: Sensor Cable Description
The entire splice meets the same environmental conditions as the termination unit. Extending the sensor cable at the control or termination unit or at sectioning points with cables not subject to this certification is prohibited. SeTec-SKM03.2-Kunde 02TB21-F Page 14 of 23... -
Page 15: Sensor Element Labelling
Figure 4 Sensor element labelling 3.2.2 Packaging / cable reel labelling The cable reel is marked as follows when the sensor cable is being transported. Figure 5 Packaging / cable reel labelling SeTec-SKM03.2-Kunde 02TB21-F Page 15 of 23... -
Page 16: Termination Unit Description
decal "F" The termination unit of the SKM-03.2 comes in a Spelsberg Abox-i-m-025-L housing. The housing meets the relevant environmental requirements and is waterproof as per IP66. The termination unit connects to the open end of the sensor cable. The actual sensor element can be tested for short-circuit and wire break using this end. -
Page 17: Connection / Terminal Assignment
The sensor cable connects to terminal X1: Figure 7 Connection SKM-03.2 termination unit Terminal Description designation OUTER Sensor cable outer conductor INNER Sensor cable inner conductor SHIELD Sensor cable shielding Table 6 Terminal assignment SKM-03.2 termination unit SeTec-SKM03.2-Kunde 02TB21-F Page 17 of 23... -
Page 18: Description Of The Optional Connector Unit
decal "F" The connector unit of the SKM-03.2 comes in a Spelsberg Abox-i-m-025-L housing. The housing meets the relevant environmental requirements and is waterproof as per IP66. The connector unit is an optional accessory. It can be connected to several sectioning points of the sensor cable and meet the environmental conditions of the complete system. -
Page 19: Connection / Terminal Assignment
The sensor cable ends connect to terminals X1 and X2: Figure 9 Connection SKM-03.2 connector unit Terminal Description designation OUTER Sensor cable outer conductor INNER Sensor cable inner conductor SHIELD Sensor cable shielding Table 7 Terminal assignment SKM-03.2 connector unit SeTec-SKM03.2-Kunde 02TB21-F Page 19 of 23... -
Page 20: Project Planning
4 Project planning 4.1 Area monitoring The line-type heat detector SKM-03.2 is suitable for area monitoring. Applications where the sensor cable is normally installed on the ceiling, e.g. underground car park. The sensor cable should be installed with cable clips or modular snap-in clamps. -
Page 21: Installation Example
4.2.2 Room size from 30m² flat roof over 20° pitch – 0.5m to 3m from walls, equipment or stored goods S2 – max. 10m between two parallel sensor lines (max. 2 x D – 10mm to 20mm from the ceiling SeTec-SKM03.2-Kunde 02TB21-F Page 21 of 23... -
Page 22: Sensor Cable Installation
The sensor cable can be installed with the following clips: OBO cable clip 2037 – Item no.: BK52007 SeTec cable clip – Item no.: BK83005 The recommended spacing between two fixing points is 0.4m. SeTec-SKM03.2-Kunde 02TB21-F Page 22 of 23... -
Page 23: Tips And Tricks
Press the "TEST FAULT" button on the PCB for 7 sec. Fault status / fault LED incorrect cable length setting Flashing 1Hz Low voltage (< 9VDC) Flashing 0.5Hz Sensor cable short-circuit Flashing 0.25Hz Sensor cable wire break Duration SeTec-SKM03.2-Kunde 02TB21-F Page 23 of 23...
