QUICK IN ST ALL G UI D E - E X T -1 0 0 E X T E N D ER K I T
The EXT-100 Extender Kits are robust, long reach single port UTP solutions designed for indoor
applications. For outdoor applications, the remote would need to be placed into a NEMA rated
enclosure suitable for the installation environment. Contact 1-800-BERKTEK for patch cords designed
for harsh environments. The kit includes a EXT-100-Main, a EXT-100-Remote, and a 60 watt 55 V power
supply. The EXT-100-Remote, when connected to the EXT-100-Main unit via four-pair UTP cable, can
deliver 100 Mbps (symmetrical full duplex) with up to 30 watts of power at a 2,000 ft (610 m) reach. The
EXT-100 offering is designed specifically to enable easy deployment over UTP for reaches beyond that
of standard Ethernet, eliminating the costs and disruption associated with IDF closet requirements.

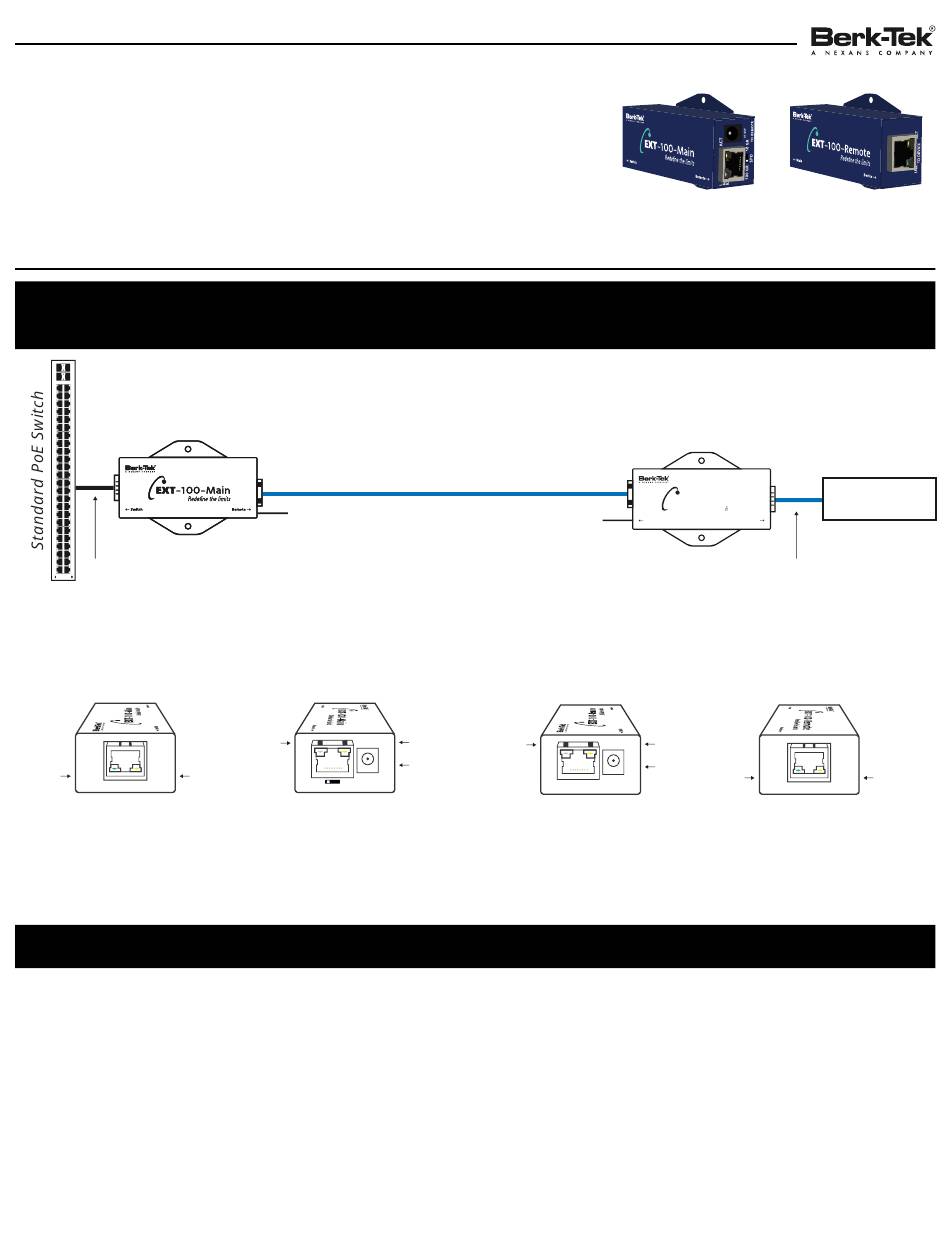

PR OD U CT O V E RV I E W
EXT-100 Extender Kit (EXT-100-Main + EXT-100-Remote + 60 W, 55 V Power Supply)
P/N: EXT-100 81001153
EXT-100-Main
The max length supported
between the EXT-100-Main and
the PoE Switch is 328 ft (100 m)
To Switch
LNK ACT
Link Activity
TO SWITCH
Product Details (EXT-100-Main)
• Paired with EXT-100-Remote
• Up to 30 W PoE
• Local power option
• IEEE compliant

Installation Steps (for EXT-100 Extender Kit)

1. Remove the EXT-100-Main and EXT-100-Remote from packaging.
2. Must ensure cable is properly terminated before connecting any EXT-100 product.
3. Remove all legacy equipment from the UTP cable infrastructure.
NOTE: In order to avoid damage to devices, it is important that only IP devices are connected when you connect the EXT-100-Main.
4. Connect EXT-100-Main (Switch side) to downlink port on switch.
5. Connect the Network Infrastructure cable from the EXT-100-Main (Remote side) to EXT-100-Remote (Main side).
6. Using Cat 5e or higher category cable, connect the device to the EXT-100-Remote (Device side).
NOTE: Berk-Tek recommends using LANmark IP (22AWG) or higher for indoor applications; LANmark-6 OSP, LANmark-1000 OSP, or LANmark-10G
OSP should be used for outdoor applications.
The EXT-100-Remote must be installed either indoors or in a NEMA rated box appropriate for the installation environment.
Installations must be compliant with the requirements of the local authority having jurisdiction.
1-800-BERK-TEK (1-800-237-5835) | +1-717-354-6200 | www.berktek.us
*
Four-Pair UTP Cable
up to 2,000 ft (610 m)
Local Power
Up to 60 W, 55 V
(Optional)
To Remote
(EXT-100-Remote)
Link/Speed
Green:
ACT
LNK
100Mbps
Orange:
10Mbps
37-55V
100 GR 10 GR
SPD
TO REMOTE
Local Power
Up to 60 W, 55 V
(Optional)
To Main
(EXT-100-Main)
Link/Speed
Activity
Green:
100Mbps
37-55V
Orange:
DC IN
10Mbps
LNK/SPD
TO MAIN
Product Details (EXT-100-Remote)
• Paired with EXT-100-Main
• Up to 30 W PoE
• Local power option
• IEEE compliant
EXT-100-Remote
EXT-100-Remote
Rede ne the limits
Main Device
The max length supported
between the EXT-100-Remote and
the Device is 328 ft (100 m)
Activity
37-55V
DC IN Link
37-55V
ACT
DC IN
Copyright 2019 Berk-Tek LLC | 445-0027-A | Page 1
DEVICE
To Device
LNK ACT
Activity
TO DEVICE
