Page 3: Introduction
For more information about our company and complete listing of products refer to www.i-fi beroptics.com on the Worldwide Web. Thank you for selecting this Industrial Fiber Optics product. We hope it meets your expectations and provides many hours of productive activity. Sincerely, The Industrial Fiber Optics Team... - Page 4 – ii –...
-
Page 5: Table Of Contents
TABLE OF CONTENTS Introduction………………………....……..…………..…… GENERAL..................OPERATIONAL INFORMATION…………..…..…...……..... Specifi cations....…......…....…....SAFETY…………....…......…....…..Electrical…………....…............OPERATING PROCEDURES............Equipment Needed......…....…....Setting up the TV and VCR......…....…..Making the laser transmit video....…....…..Summary......…..........…..TROUBLESHOOTING..........…....SERVICE AND MAINTENANCE............WARRANTY..........…....…... SHIPMENT DAMAGE CLAIMS............– iii –... - Page 6 LASER CLASSIFICATIONS All manufacturers of lasers used in the United States, must conform to regulations administered by the Center for Devices and Radiological Health (CDRH), a branch of the U.S. Department of Health and Human Services. CDRH categorizes lasers as follows: Class Description A laser or laser system which does not present a hazard to skin or...
-
Page 7: General
These microchip systems are the smallest and most widely used lasers in the world. Industrial Fiber Optics utilizes the latest technology in miniature electronics and laser science in creating the IF-VL and IF-UL series lasers which can be used to transmit TV picture video to this Laser Video Receiver. -
Page 8: Operational Information
1. Power Jack (PWR) Industrial Fiber Optics Laser Video Receiver IF VR uses a standard 2.1 mm DC power input jack to provide power to the receiver. (An ON/OFF switch controls power from the jack to the electronic circuitry and photodetector.) Power input to the laser receiver must be applied from a low-voltage DC power source in the range of 10 to 15 volts, such as supplied with the laser receiver. - Page 9 6. Power adapter (not shown) All Industrial Fiber Optics products sold in the United States come complete with a power adapter suitable for 60 Hz 120 VAC-to-VDC conversion. Most others come with 50 Hz 220 VAC-to-VDC power adapters. It is strongly recommended that the power adapter furnished with the laser be the only supply used.
-
Page 10: Specifi Cations
Specifi cations Specifi cations for laser receiver part number IF-VR. Table 1. Laser NTSC Video Receiver Specifi cations. Parameter Value Operating Input voltage 10 to 15 volts Input current 30 to 50 milliamperes Temperature 0 to 40° C Optical Polarization... -
Page 11: Safety
The Laser NTSC Video Receiver does not emit optical light or radiation that is hazardous to health. The Industrial Fiber Optics IF UL and IF VL Lasers used with this receiver are low-power Class II or Class IIIa lasers and are very safe for classroom and general laboratory use. -
Page 12: Operating Procedures
OPERATING PROCEDURES Radio and TV signals use electromagnetic energy that travels at the speed of light. They are broadcast in the radio frequency portion of the electromagnetic spectrum which has a limited capacity for individual signal channels, whether over the air or through cable. By using the light frequency portion of the electromagnetic spectrum, we can greatly increase the amount of TV signals that cable systems can deliver. -
Page 13: Making The Laser Transmit Video

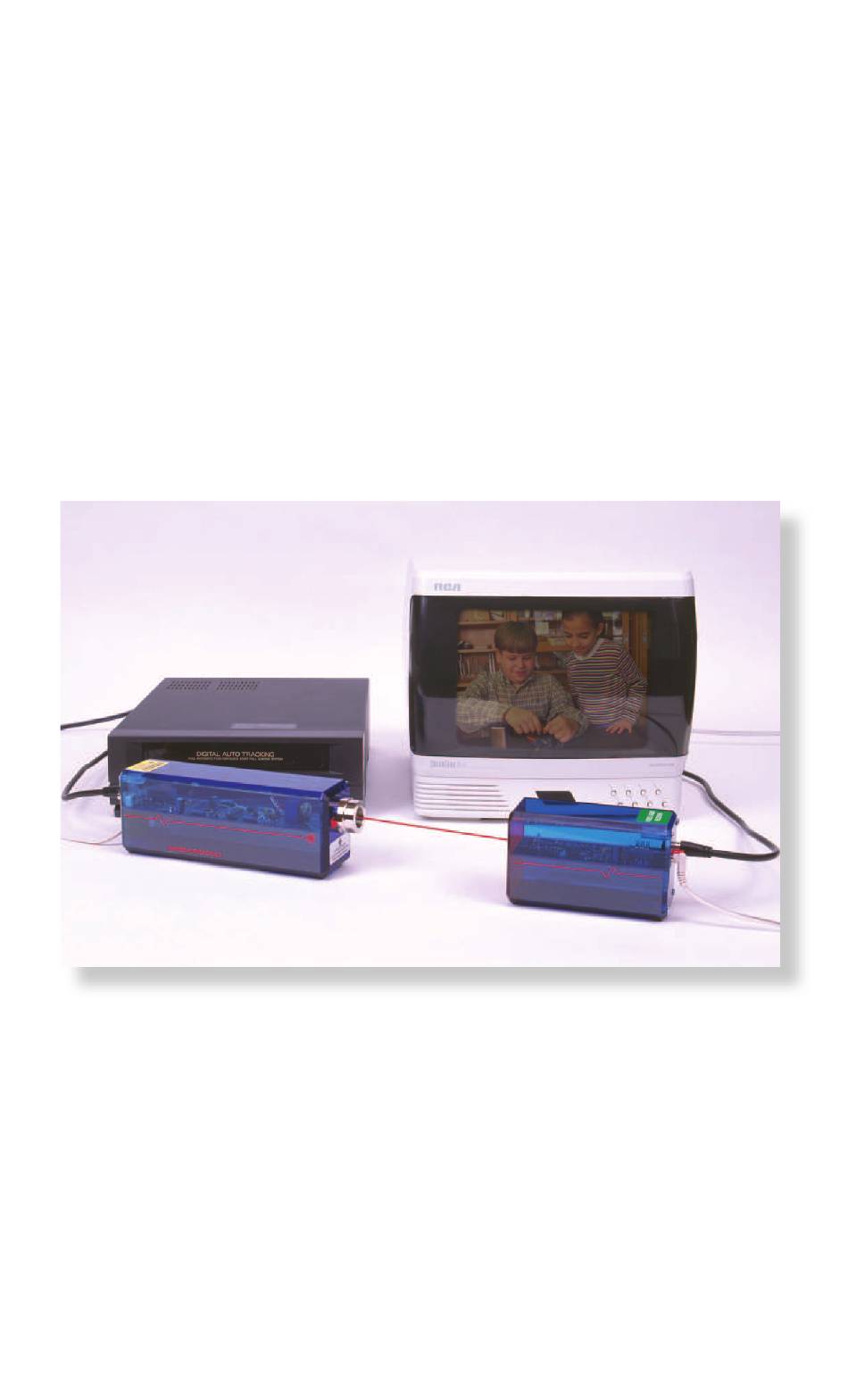

Make certain the television set is displaying the video properly before starting the next procedure. If it is not, check the signal switch positions and cable connections. When a signal is being received, leave the signal switch positions on the VCR and television as you set them, then stop the playback on the video tape (if used) and turn the VCR and television off. - Page 14 Turn on the VCR and start playback of the tape, or use the built in tuner to receive a television station as in Procedure A. Turn the television on. Switch the Video Diode Laser on, then open the laser beam shutter. Position the laser as required so that the laser beam strikes the photodiode inside the Video NTSC Laser Receiver.
-
Page 15: Summary
Summary Congratulations on completing a successful demonstration of transmitting a television signal over a laser beam. With modern technology this equipment made a once-diffi cult, or even impossible, experiment look easy. You might ask yourself, "Why go to the trouble of transmitting TV images with lasers and fi... -
Page 16: Troubleshooting
Industrial Fiber Optics for appropriate inspection/servicing, as described in the section entitled SERVICE AND MAINTENANCE. -
Page 17: Service And Maintenance
SERVICE AND MAINTENANCE Periodic maintenance and service of this laser receiver is not required. The warranty will be voided if entry has been made to the laser receiver’s housing and/or screws have been removed. In the unlikely event the receiver malfunctions and you wish to have it repaired, please do the following: •... -
Page 18: Warranty
Industrial Fiber Optics' warranty liability is limited to repair or replacement of any defective unit at the company's facilities, and does not include attendant or consequential damages. -
Page 19: Shipment Damage Claims
SHIPMENT DAMAGE CLAIMS If damage to an Industrial Fiber Optics product should occur during shipping, it is imperative that it be reported immediately, both to the carrier and the distributor or salesperson from whom the item was purchased. DO NOT CONTACT INDUSTRIAL FIBER OPTICS. - Page 20 120237 Rules for Laser Safety • Lasers produce a very intense beam of light. Treat them with respect. Most educational lasers have an output of less than 3 milliwatts, and will not harm the skin. • Never look into the laser aperture while the laser is turned on! PERMANENT EYE DAMAGE COULD RESULT.
