720P 4CH

Vehicle Mobile DVR

2016 MAY V2.0

Table of Contents

Need help?

Do you have a question about the 720P 4CH and is the answer not in the manual?

Questions and answers

Summary of Contents for GeoBox 720P 4CH

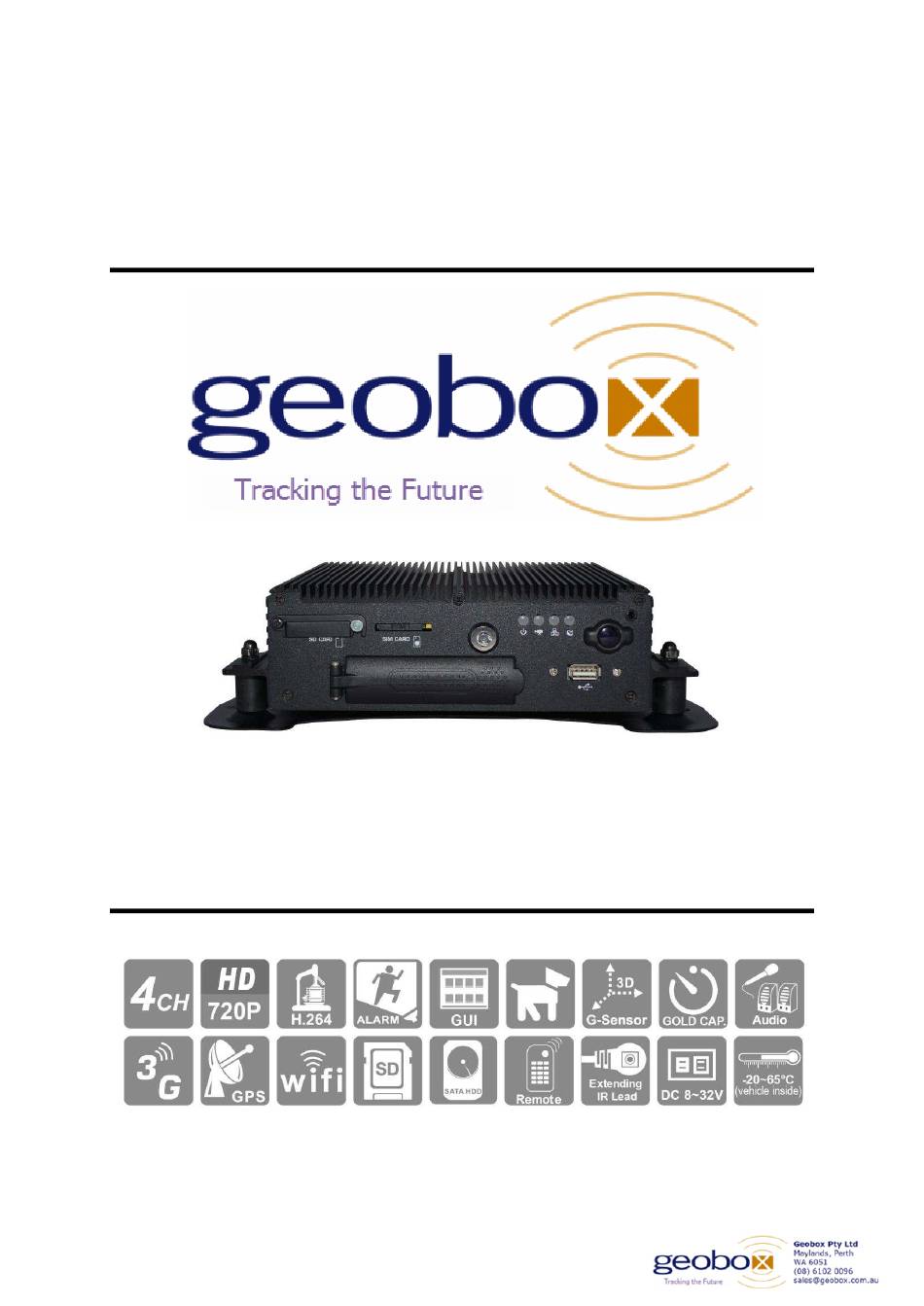

Page 1 720P 4CH Vehicle Mobile DVR 2016 MAY V2.0...
Page 2 720P 4CH Mobile DVR User Manual Safety Precautions Take and review some testing video initially to make sure the images were recorded correctly. Please note that manufacturer, its subsidiaries and affiliates, and its distributors are not liable for consequential damages arising from any...
Page 3 720P 4CH Mobile DVR User Manual Before using 3G products, please ensure that you read the safety notifications described below. • Company and user shall not modify certified low power radio frequency device the frequency, increase the power and change the characteristics and functions without permit.
Page 4: Table Of Contents
720P 4CH Mobile DVR User Manual Index Features ........................1 Specification ........................ 2 Accessories ........................3 Product Exterior ......................4 Power On / Power Off ....................6 IR Remote Controller ....................7 System Interface and Operation ................8 CARBOX Player on PC Site ..................12 Format/Restore HDD ....................
Page 5: Features
720P 4CH Mobile DVR User Manual A. Features 1. Support 4CH recording cameras at the same time to record driving images completely. 2. Wide range of power input, suitable for any kinds of vehicles. 3. Auto recording after power supplied.
Page 6: Specification
720P 4CH Mobile DVR User Manual B. Specification 720p/VGA@30FPS/CH Recording Frame 960H/CIF@30FPS/CH Display Mode 1CH/4CH Simplex Mode Record/Playback 1280X720 /640X480 Display 960X582 /360X240 Resolution 1280X720 /640X480 Recording 960X582 /360X240 2.5 SATA HDD Removable Case, Max to 1TB Backup Device USB 2.0 Flash Driver, Removable HDD Mode Time/Date，Events...
Page 7: Accessories
720P 4CH Mobile DVR User Manual C. Accessories This product contains accessories as below:  Standard: Main Device / Power Cable 6P+5A / ALARM Cable / IR Extension Cord /16P Female-MINIx2 / IR Remote Controller /Network Cable / Software Disc / RS-485 Cable(2 pin) ...
Page 8: Product Exterior
720P 4CH Mobile DVR User Manual D. Product Exterior Front Panel HDD Slot Lock Power Light SIM Card Slot Recording Light Network Light SD Card Slot GPS Light USB Slot HDD Slot Infrared Receiver...
Page 9 720P 4CH Mobile DVR User Manual REAR PANEL Hollow Connection： RS-485 1 Set Video Output 1 Set Audio Output Network Slot 1 Set Audio Input 4 Set Alarm Input Audio Input Video Cameras Connect Port Output 1-4 CH Power Port...
Page 10: Power On / Power Off
720P 4CH Mobile DVR User Manual E. Power On / Power Off (1) Power On Put HDD into HDD slot and closet HDD slot lock, then turn on the power and it will take approximately 30 seconds. When lights start flashing as the recording is in progress.
Page 11: Ir Remote Controller
720P 4CH Mobile DVR User Manual F. IR Remote Controller Vehicle DVR can be operated through two methods: IR remote controller and PC software application.  Through IR Remote controller instruction Buttons Instruction No. Function Description Function Description 1CH Screen Display...
Page 12: System Interface And Operation
720P 4CH Mobile DVR User Manual G. System Interface and Operation  Live Monitoring Mode Display Live Monitoring Mode- 4 Split Display (1~4Ch) (1) Display Description: • Press Ch1~Ch4 button or select on menu for single display. • Press quad split screen button for 4Ch display.
Page 13 720P 4CH Mobile DVR User Manual  OSD Menu Operation and Parameters Setup Description 720P 5-30 fps NTSC Recording 5-30 fps Recording Setting Frame 720P 5-25 fps 5-25 fps Resolution Normal Better High Video Setting Select 1~4CH to adjust Bright, Contrast and Color...
Page 14 720P 4CH Mobile DVR User Manual  Playback Mode Live screen on the device or on PC  On the Device (1) Click play button on the remote control during live monitoring mode, to enter playback page. (2) To select search type then click enter button, to enter playback list (3) To select the playback file, then click enter button to enter the playback video file.
Page 15 720P 4CH Mobile DVR User Manual Playback List Display (Remark:If the playback list cannot be read in Win7 system. Solution: click right button and execute CARBOX as Administer identity. )
Page 16: Carbox Player On Pc Site
720P 4CH Mobile DVR User Manual H. CARBOX Player on PC Site Execute player software CarBox2.exe ★ Caution: It needs to install DirectX 9.0 or above before running CarBox2 software.  Operating Instruction Control Interface Playback Date Selection Google Map GPS Direction Latitude &...
Page 17 720P 4CH Mobile DVR User Manual Previous File: Play previous video. Previous Frame: Backwind previous frame in Pause situation. Save as SD files, Video backwind play. Pause: Pause playing video Stop: Stop playing video Play: Play pause video Next Frame: Forward next frame in pause situation.
Page 18 720P 4CH Mobile DVR User Manual Resolution 720P and VGA Video Quality Choose the resolution: High / Normal / Low Video Frame Rate Set the fps from 5 to 30 Car information Car License, Driver (For Company car, Taxi, or fleet) UI Mode Setup Player Size.
Page 19 720P 4CH Mobile DVR User Manual  Backup : Backup folder: Choose the folder that backup file will save. Backup the footage on the to your computer for data HDD device backup. Select icon to start the backup function as the following : Step1.Choose the Local Disk, Removable Storage or Backup File.
Page 20 720P 4CH Mobile DVR User Manual Step3.Choose backup file format. Backup Format： ● SD Format Save as .sd file. ● AVI Format Save as .avi file. Note：*.sd format file contain image/ speed/ location and G-SENSOR data. *.avi format only can backup the video and audio.
Page 21 720P 4CH Mobile DVR User Manual Step5.Choose the backup folder. Step6.Start to backup.  Playback Playback the footage: Choose the file in or in the HDD device computer to playback. 1. Choose the Local Disk, Removable Storage or Backup File 2.
Page 22 720P 4CH Mobile DVR User Manual (2). GPS Latitude & Longitude Coordinates Location Latitude & Longitude ：Display driving GPS Latitude & Longitude Coordinates location and latitude & longitude with G-mouse ( Optional) (3). G-SENSOR G-SENSOR： X: The G-force from left & right of the car.
Page 23 720P 4CH Mobile DVR User Manual (4). Volume Control Volume BAR: Click the left button of mouse control to adjust the volume degree. (5). Video Search Video Searching：You can use the mouse to drag the bar to search the video quickly.
Page 24: Format/Restore Hdd
720P 4CH Mobile DVR User Manual Format/Restore HDD  Format HDD Q: When should you format the HDD? A: For brand new HDD or an used HDD which is used in other equipment before, it should be formatted before using.
Page 25 720P 4CH Mobile DVR User Manual Step 2: Click icon to enter format tool menu. Step 3: Click Format button. Step 4: Click (After format, re-plug the storage device, then you can set up related parameters and save. After setting, Install the HDD into the...
Page 26 720P 4CH Mobile DVR User Manual  Restore HDD Q. When you need to restore the Storage? A. If the storage device(HDD) will be used in other purpose., please back-up record footages to PC firstly and then restore it. ※Before Restore please backup the important data in your HDD.
Page 27 720P 4CH Mobile DVR User Manual Step4.Now system will pop up the window to proceed the format Quick format ，then click procedure, please choose Start . Step5. Click to start formatting the Storage Step6. Click "OK" to finish restore HDD device...
Page 28 720P 4CH Mobile DVR User Manual Step7.After finished, press Then the Storage format is normal windows format.
Page 29: Internet Setting
720P 4CH Mobile DVR User Manual 3G Internet Setting (1) SIM Card Setting During using SIM card, the protected pin code must be turned off, please refer to the following steps. (For example like HUWEI CHT-E180 model, 3.5G USB wireless adaptor) Step1.
Page 30 720P 4CH Mobile DVR User Manual Step3. Input the correct PIN numbers, Default Setting: 0000 Step4. After input PIN numbers, it will have a pop-up message to complete disable PIN numbers Step5. After complete these steps, reinsert SIM card to the socket on the device to activate.
Page 31 720P 4CH Mobile DVR User Manual parameter. Config tool Removable Storage Source of Device UserName Default Setting Password Default Setting Server Address Server IP Address Default Sever Port is 13579, Not Server Port recommend changing original setting). 3G APN, generally preset to be Taiwan...
Page 32 720P 4CH Mobile DVR User Manual if not willing to use tele-connecting function, please directly neglect it. Step3. After finishing all the input information, click to save the information into USB drive. Click USB drive to check if the file already exists.
Page 33: Client Remote Monitoring
720P 4CH Mobile DVR User Manual 3G Client Remote Monitoring (1) Login Execute 3GClientApp.exe and login Login button to Enter the username and password and then press login screen. Note: To perform this software will require DirectX 9.0 or more.
Page 34 720P 4CH Mobile DVR User Manual (2) Live View Display Equipments list display all the connecting equipments. Be able to play real-time image form all channels. Lift click mouse to open equipment channel than click on channel to view the real-time image.
Page 35 720P 4CH Mobile DVR User Manual  Live View  Split screen display mode button Single Display Quad Display 16 disvisions 9 divisions Display Display Muti-divisions display,25/36/49/64 Live View-Single Channel Display...
Page 36 720P 4CH Mobile DVR User Manual Live View- Quad Channels Display  Live View Function buttons Recording Signle snapshot as AVI file Snapshot Snapshot Auto-flip Auto flip to next page Stop auto-flip Stop auto-flip to next page Save the current live viewing...
Page 37 720P 4CH Mobile DVR User Manual Recording: To record the selected channel, the red recording signal will show up at the bottom of the screen. Snaptshot: To take the snapshot of the selected channel, it will automatically go to the saving directory.
Page 38 720P 4CH Mobile DVR User Manual Manually select page: Manually select the previous or next page  Live View Interface To select different display mode: Event/Dev List/Map to show different status.
Page 39 720P 4CH Mobile DVR User Manual Event Dev List (3) Electronic Map ※G-Mouse must equiped with Device to have GPS function to provide positioning information Once positioning is done, you could use the mouse to click the device for current position.
Page 40 720P 4CH Mobile DVR User Manual  Device Positioning Without GPS function. With GPS function Device Located.  Electronic Map Select the positioned device on the list, then it will show its position on the map.
Page 41 720P 4CH Mobile DVR User Manual  Live View Interface To select different display mode: Event/Dev List/Map to show different status. Event Dev List...
Page 42 720P 4CH Mobile DVR User Manual Live View (4) Route ※G-Mouse must equiped with Device to have GPS function to provide positioning information To display the positioned device at the track, you can notice the traveling route of the vehicle.
Page 43 720P 4CH Mobile DVR User Manual  Tracking Route Search Choose Date and Car Name/ID to search the data...
Page 44 720P 4CH Mobile DVR User Manual  Remote Live View Message Interface Mode: Event/Dev List/Map/Live View Event Dev List...
Page 45 720P 4CH Mobile DVR User Manual Recording Setting Record Path, Record Duration (Seconds), and Disk Free Space(MB) are the relative options. Snapshot Set the path after snapshot Auto-Change Duration (Seconds) Set the duration in seconds of auto-change page. Language Setup 3G Client Language display.
Page 46 720P 4CH Mobile DVR User Manual Live View (5) Setting Page  Page 1 Setting the FPS, recording function, auto turn over page, and language. Video Buffer Setting Real-Time-> Higher frame rate Smooth-> Higher video resolution...
Page 47 720P 4CH Mobile DVR User Manual 3G Setting Unit of Speed, Auto Disconnect Time, Read Device functions are available. • Speed Unit: Speed unit of E-map and tracking route display • Auto Disconnect Time: During live video playing, once it is set, the video image will be Close at the setup time.
Page 48 720P 4CH Mobile DVR User Manual devices in this server, we recommend to close this functio to have better PC performance.) E-mail setting When the alarm is triggered, the server will send a e-mail to the specific account, please refer to the following figure.
Page 49: Capacity Evaluation Of Continuous Recording Storage Device
720P 4CH Mobile DVR User Manual L. Capacity Evaluation of Continuous Recording Storage Device Assumption of the minimum record time for Mobile DVR: 8Ch/15FPS , Statics Recording and different capacity of Hard Disk. The following recording table is evaluated by 500GB and 1TB.
Page 50 Made in Taiwan...
