Summary of Contents for Goelst G-Motion

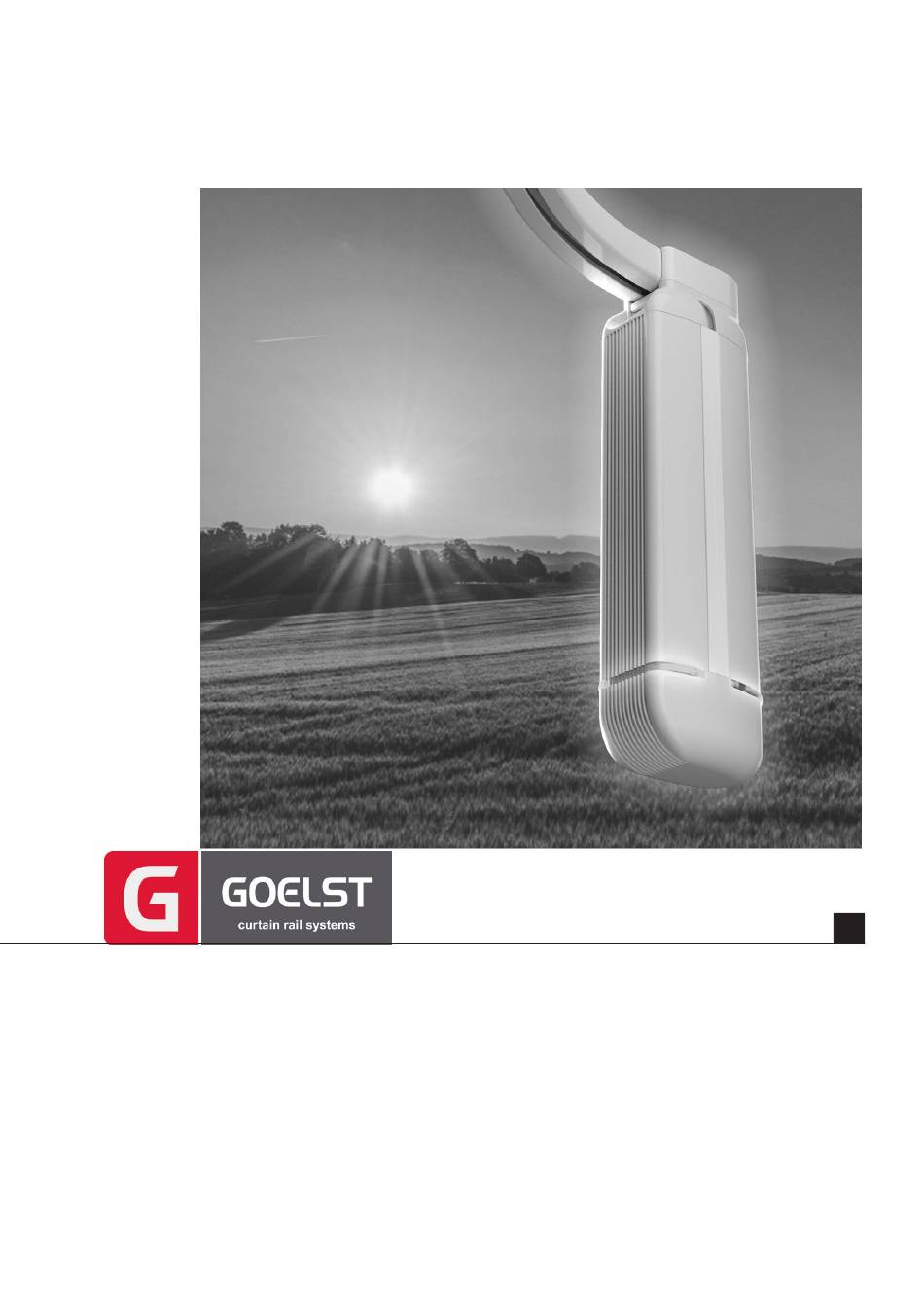

  • Page 1 G-Motion G-Motion manual 6200 electric curtain track system...
  • Page 2 The information provided in this document is intended for informational purposes only and is subject to change. Information may be changed or updated, no rights may be derived from it. All rights reserved. Goelst NL BV, 2019 The Netherlands...

  • Page 3: Table Of Contents

    2.4 Wired connection types ..........First use: Auto calibration ........3.1 Auto calibration ............. 3.2 Auto calibration, GM-x20-xxxx with 5-core connector. Programming............4.1 Programming Goelst G-Motion motor units ...... 4.2 Overview Programming menus ........4.3 Programming options ............ MENU 1 1.1 Set end positions .................
  • Page 4 2.4.2 Touch and Stop ....................26 MENU 3 3.1 Operation mode ..............3.2 Inverted input ..............3.3 Timer ................3.4 - 3.6 (Reserved) ..............3.7 Factory settings ..............Pilot Release System ..........Programmeer principes (En) ........Connector wiring ..........Technical specifications ........What if ...

  • Page 5: Fixing

    Fixing 1.1 Product overview Below, a G-Motion motor unit, with its main functional components. driving gear, inserts into to cur- sliding lock, to tain track pulley secure the motor unit to the curtain track cable management, with cover profile bottom cover,...

  • Page 6: Fixing Guidelines

    Fixing Attention - If the system is supplied split e.g. for transportation - do not move the elements sideways as indicated See chapter B1 for re-assembly. 1.2 Fixing guidelines General fixing steps: - Place ceiling- or wall brackets (p. 2 - 4) - Place pulley hooks on the pulleys - Mount rail and place motor unit (p.
  • Page 7 Fixing Ceiling fixing with clamp 6050 Ceiling clamps 6050 are suitable for a maximum total curtain weight of 25 kg, (<10 kg/ bracket), otherwise it is advised use 6055-1000 ceiling supports. Fasten each clamp with a pan head screw. First and last clamp should be fixed at least 11 cm from the end wall to allow for the pulley and curtain fabric around the pulley.
  • Page 8 Recessed fixing with special profile nut 6055-2000 Goelst 6200 rail can be recess fixed into the ceiling. The rail must be pre-drilled by Goelst for this purpose. For recess fixing, the special screws supplied with this profile nut must be blindmontage aan het plafond met steun 6235-80 used.
  • Page 9 Fixing Placing the motor-unit The motor-unit can be connected to the rail (left or right hand end as required) and locked into place once the rail has been fixed to the ceiling or the wall. Fit the pulley cover onto the open pulley at the opposite to the motor (the motor-unit can be placed at either the left or right side of the track): For systems with 2 motors (tandem) the second motor-unit will be placed in this location.

  • Page 10: Glidertypes

    Fixing 1.3 Glider types The maximum load per glider should not be exceeded: Glidertypes Glidertypes max. load 4007 2 kg 6009 2 kg 4.4 lbs 4.4 lbs 4010 3 kg 6010 1 kg 6.6 lbs 2.2 lbs 4020 8 kg 4014-10-080 0,5 kg 17.6 lbs...
  • Page 11 Fixing v . t ( 1.4 Pilot runner specifications) enkel pakket zonder overlap Swing placing grommets 6274-30SW-R v . t use all grommets enkel pakket met overlap 6274-30SW-L v . t Kijk richting use all grommets enkel pakket zonder overlap 6275-30SW midden sluitend zonder overlap v .

  • Page 13: Preparation

    Preparation 2.1 System identification To identify motor unit type, see attached label as shown below: Unique Motor ID Motor type GM-421-0010 / 00000 IP40 CID: RoHS PCID: 100-240V ~1.5A 50-60Hz Made in the Netherlands (example) If applicable: Partner Motor ID In tandem systems both motor-units carry a “partner ID”...

  • Page 14: Power Supply Types

    Preparation 2.3 Power supply types Detailed wiring diagrams are available at www.goelst.com. basis, Control PCB met RS485 doorkoppel power supply : 100-240 V AC openingen zichtbaar en Wi ant. EU, US or UK cable, C7 plug basis, Control PCB met RS485 doorkoppel openingen zichtbaar en Wi ant.

  • Page 15: Wired Connection Types

    : infrared receiver Detailed pin layouts for RJ11 and RJ45, refer to p. 35. Detailed wiring diagrams are available at www.goelst.com. After placing the motor unit on to the curtainrail system and powering the motorunit, the system is now ready for self calibration, see next chapter.

  • Page 17: First Use: Auto Calibration

    First use: Auto calibration 3.1 Auto calibration G-Motion motor units execute a self-calibrating routine when used for the first time. For Motor types GM-x21-xxxx/x and GM-x10-xxxx/x ( NOT for GM-1xx-xxxx/x/ ) To fine tune end positions during self calibration, these buttons can be used: buttons on motor unit (1) or paddle switch buttons (2).

  • Page 18: Auto Calibration, Gm-X20-Xxxx With 5-Core Connector

    (art no 1348-GM04) opt. 1348-GM04 (EU version) After completing the auto calibration cycle, the power cable (1348-GM04) must be replaced by the 5-P-connector intended for controlling the G-Motion motor unit. Keep the power cable 1348-GM04 cable for future changes in settings.
  • Page 19 First use: auto calibration...

  • Page 21: Programming

    Programming 4.1 Programming Goelst G-Motion motor units Goelst G-Motion motor units offer a wide range of features for optimal use in many situa- tions. Feature options can be changed and stored using the buttons on the motor unit itself or other controllers. Programming is done with visual feedback from the multicolour LED in the motor unit.

  • Page 22: Overview Programming Menus

    4 Programming 4.2 Overview Programming menus LED mode LED colour Menu 1 White End positions 1.2 *) Set infrared Channels (IR) Green 1.3 *) Yellow (reserved) LED mode LED colour Menu 2 blinks slowly White Speed DryC. IntermediatePos. Green Light sensor 2.3.1 Sun sensor Yellow...

  • Page 23: Programming Options

    Programming 4.3 Programming options MENU 1 motor LED colour red: 1.1 Set end positions Note: After 15s. without input, the motor unit quits programming mode.Please read the steps of this feature first before starting. 1. Place the curtains if possible and then adjust internal endstop(s) if necessary for improved curtain pleating.

  • Page 24: Menu 2

    4 Programming MENU 2 2.1 Opening and Closing Speed motor LED colour red: Option to select 1 of 4 pre-defined speed settings. Default setting is „Normal“. Note: After 15s. without input, the motor unit quits programming mode. Please read the steps of this feature first before starting. 1.

  • Page 25: Light Sensor

    To quit programming at any time, repeatedly press the OPEN+CLOSE buttons or wait for 15s. Changes made at 6 will only be saved if confirmed by pressing the OPEN CLOSE buttons. 2.3 Light sensor The advanced Goelst Light sensor offers Sun light related sensitivity Dawn/Dusk...

  • Page 26: Sun Light Sensitivity

    To use the Sun sensor, define its sensitivity (see below) AND its behaviour (§ 2.3.3). Connect the Goelst light sensor to the underside of the motor unit via the RJ45 plug. Make sure that the sensor is properly placed and oriënted correctly towards the light source.

  • Page 27: Dawn/Dusk Light Sensitivity

    To use the Dawn/Dusk sensor, define its sentibility (see below) AND its behaviour (§ 2.3.3). Connect the Goelst light sensor to the underside of the motor unit via the RJ45 plug. Make sure that the sensor is properly placed and oriënted correctly towards the light source.

  • Page 28: Light Sensor Behaviour

    4 Programming 2.3.3 Light Sensor behaviour motor LED colour purple: To make use of the light sensor, define its response to Sun light signals and Dawn/Dusk light signals. There are 8 preset patterns available. Note: After 15s. without input, the motor unit quits programming mode. Please read the steps of this feature first before starting.

  • Page 29: Cps: Curtain Protection System

    Manual override: CPS also allows manual operation of the curtains of G-Motion electric curtain rail systems in case of a power cut. When power returns and the curtain has been moved during the power cut, the system starts recalibrating after the first controlling signal.

  • Page 30: Touch And Stop

    4 Programming 7. The LED on the motor unit slowly flashes white again for 15 seconds: using the buttons another MENU 2 feature can be selected. OPEN CLOSE 8. Otherwise, wait for 15 seconds or shortly press the buttons to quit OPEN CLOSE programming.

  • Page 31: Menu 3

    Programming MENU 3 3.1 Operation mode 3 different operation modes are available, defining how the motor unit responds to OPEN commands from 1- or 2-button controls. CLOSE Settings: Mode 1 : Standard 2-button operation (default setting) button press < 1s.: system moves to end postition button press >...

  • Page 32: Inverted Input

    4 Programming 2x flash = Inverted 2-button operation 3x flash = 1-button operation 6. Confirm and store setting by shortly pressing buttons. OPEN CLOSE 7. The LED on the motor unit flashes white at high speed again for 15 seconds: using buttons another MENU 3 feature can be selected.

  • Page 33: Timer

    Programming 3.3 Timer motor LED colour yellow: The built-in timer offers a 24hr function and a showroom function. With the 24hr function a usage pattern can be recorded, which then will repeat and operate the system automatically every 24hrs. The Showroom setting (option 5 in menu) is a demo setting for showrooms, fairs and shop displays.

  • Page 34: 3.6 (Reserved)

    4 Programming After 15s. without input, the motor unit quits programming mode. Please read the steps of this feature first before starting. In case of a Power Cut the timer will be reset, unless the motor unit is provided with an accu pack. SET 24hrs Timer 1.

  • Page 35: Factory Settings

    Programming 3.7 Factory settings Switch to Factory settings, recalling all default settings, being option 1 in every settings menu. This erases all changes made. When making settings after choosing this feature, the motor unit behaves as a new motor unit. After 15s.
  • Page 36 During the next steps these components should not move away from each other. 1. Remove transit packaging. 2. Connecting bridge pre-mounted with screws in one rail-end. Do not over tighten the grub screws as this will deform the rail. 3. Connect to the other rail. Do not over tighten the grub screws as this will deform the rail.

  • Page 37: Pilot Release System

    Pilot Release System Pilot Release System, mechanical. (not in combination with CPS) Pilot Release System, allows curtains to be operated by hand in the event of emergency, power failure and/or product unfamilarity. For 6200, 6200-T and 6300. Maximum curtain weight on the metal carrier-arm: 0,5 kg.

  • Page 38: Programmeer Principes (En)

    Programmeer principes (En) Basic principles for programming Enter Programming mode Enter Programming menu’s by pressing both OPEN CLOSE release after 4 [s] for menu 1, when LED switches on (white) release after 8 [s] for menu 2, when LED blinks slowly (white) release after 12 [s] for menu 3, when LED blinks fast (white) Making changes Within the menu, cycle forward or backwards through the coloured features...

  • Page 39: Connector Wiring

    Connector wiring iting overzicht er afgebeelde ngsingangen) connector : RJ45 protocols : RS232 : Dry contact conn: : infrared receiver basis pin layout RJ45: aansluitpinnen onder in motorunit RS232 Tx 24VDC output 3,3VDC output OPEN CLOSE IRDATA RS232 Rx connector : RJ11 - 4 pins.

  • Page 40: Technical Specifications

    Technical specifications G-Mot motor dimens versio...

  • Page 42: What If

    § 3.2 : inverted input from controls Power cut: Smart start-up. A power cut generally causes no problem for G-Motion. The system will detect the event of a power cut. After power has returned AND the curtain was displaced manually, the system will recalibrate itself, using electronically stored end positions values and using the internal end stops as a reference.

  • Page 43: Maintenance

    (click from the round side) - pilot runners by overlap carrier > Goelst Curtain rail silicone spray: art.no. 1251-250 Use the spray sparingly. Excessive spray may run and stain the curtains. Too much spray may have a negative effect on the performance of the system and may even result in damage.
  • Page 44 The information provided in this document is intended for informational purposes only and is subject to change. Information may be changed or updated, no rights may be derived from it. All rights reserved. Goelst NL BV, 2019 the Netherlands 191008003GM6200...
