BENZING SPEED 8 field Antenna Mounting Instructions

EN
MOUNTING INSTRUCTIONS V 3.0
SPEED ANTENNA
2
Types
12 field antenna

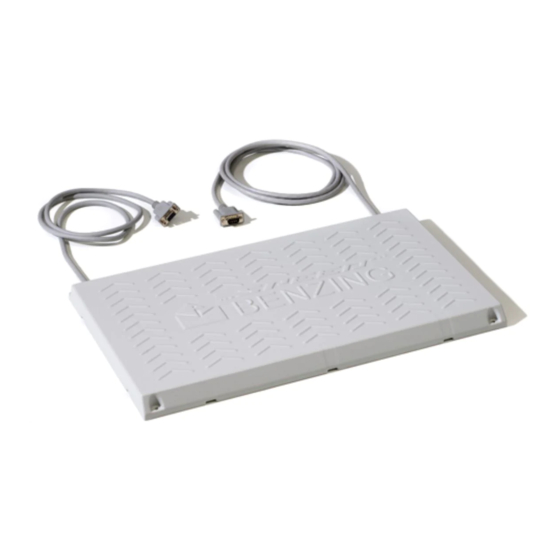

8 field antenna
Chip Rings
We recommend the use of the BENZING Pro and BENZING Pro² Chip Rings
for maximum security.
Mounting & Conditions
Antennas must not be in the water and all connectors have
to be inside the fancier loft and always kept dry! Keep the
BENZING SPEED 2 in a dry place after the season ends!
flight direction
outside
1
inside
x
2
Clean only with brush
and less water
Specifications
8 field Antenna 12 field Antenna
Current Consumption 120 mA 160 mA
Read frequency 125 Hz 125 Hz
Interface RS 485 RS 485
Antenna fields 8 12
Temperature range -10°C up to +60°C -10°C up to +60°C
+14°F up to 140°F +14°F up to 140°F
2
2
2 different types
8 field SPEED 2 Antenna
2 47.5 x 30 x 2.7 cm
18.7 x 11.8 x 1"
12 field SPEED 2 Antenna
76.5 x 30 x 2.7 cm
30.1 x 11.8 x 1"
1 You can use screws for the mounting
The antennas can be washed with
2
brushes and less water
Please do not submerge the antennas
3
under water or use a high-pressure
cleaner
4 The antenna doesn´t work if there is
metal underneath the antennas
x
3 4
Do not use high Do not use any metal
pressure cleaning or or iron next to the
garden hose antennas
HYBRID USE:
The BENZING loftPOINT SNN²
is required when you mix
BENZING Speed and
BENZING Speed² antennas.

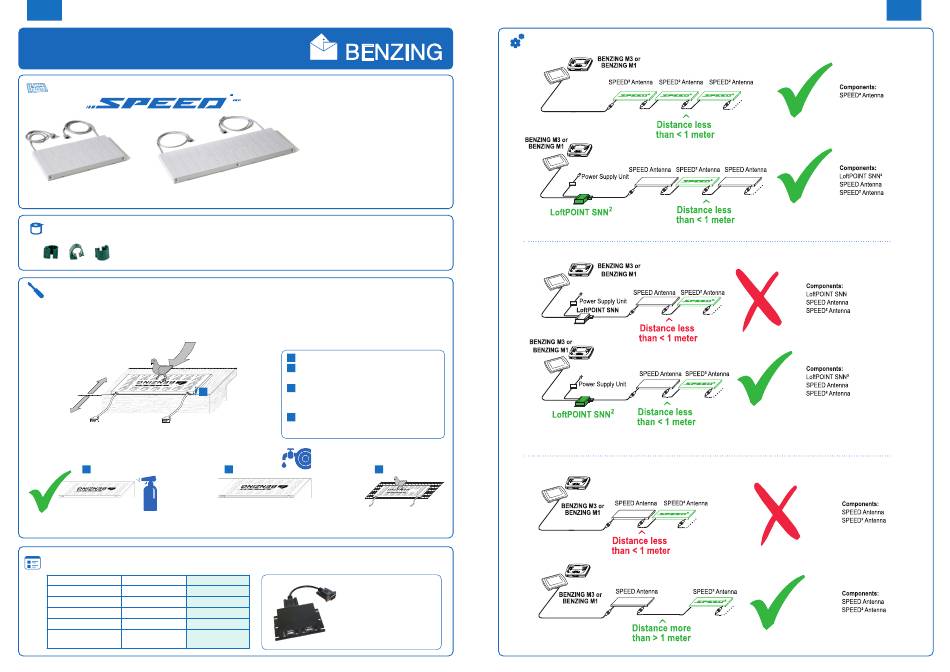

How to connect the antennas?
EN
