Summary of Contents for Commell ADP-L2T

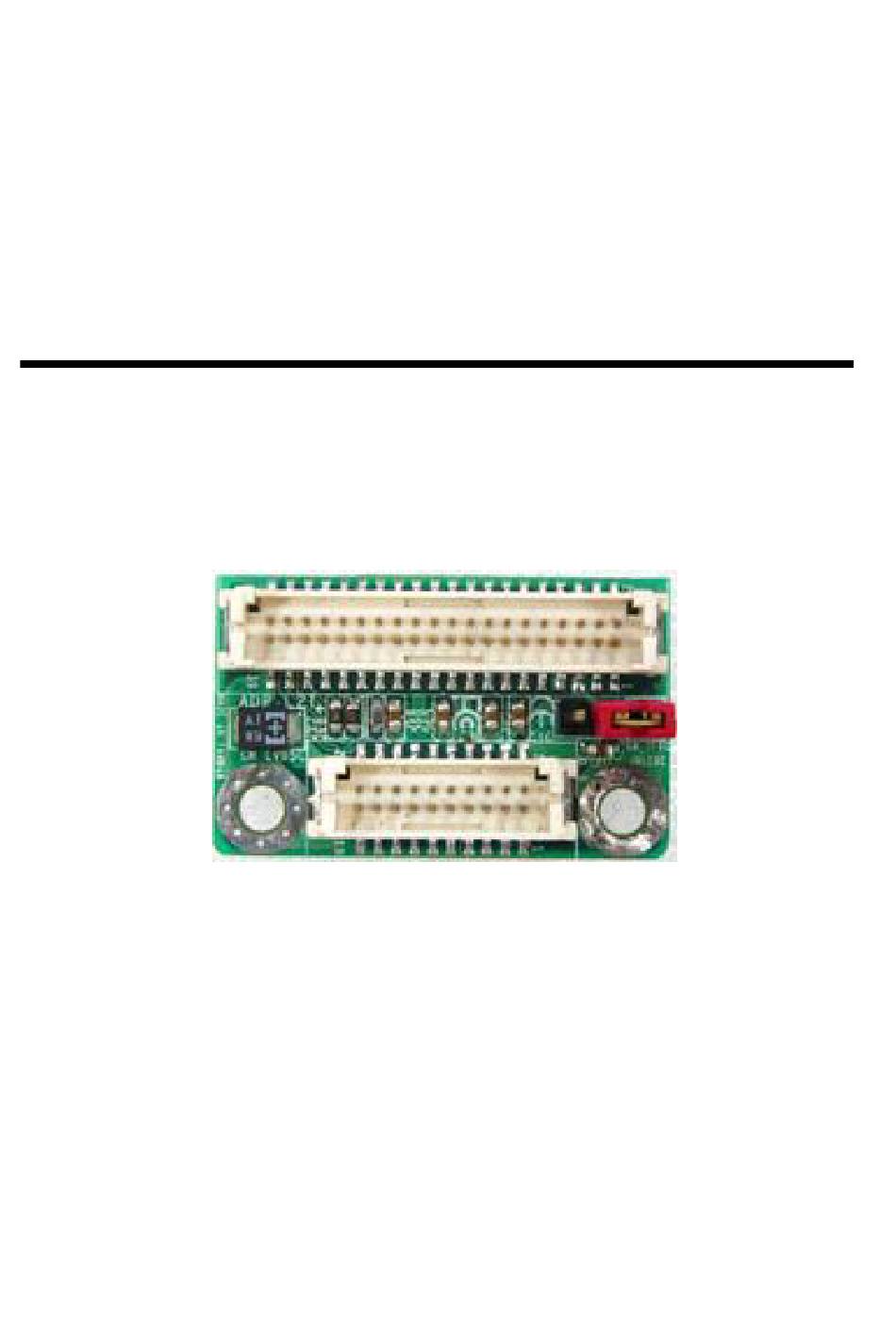

- Page 1 ADP-L2T User’s Manual Edition 1.4...
- Page 2 ADP-L2T User’s Manual Copyright Copyright 2008 all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
-
Page 3: Packing List
ADP-L2T User’s Manual Packing List: Hardware: ADP-L2T adapter x1 Cable Kit: To ADP-L2T “CN_LVDSC” Default 40Pin connector to COMMELL motherboard motherboard Product Specification General Specification Panel For 18-bit TTL LCD Panel Dimensions (W x D) 31.50mm x 19.45mm Temperature Operating within 0~60 centigrade... -
Page 4: Mechanical Drawing
ADP-L2T User’s Manual Mechanical Drawing... -
Page 5: Connector Reference
ADP-L2T User’s Manual Connector Reference Connector: CN_LVDSC Type: onboard 20-pin connector for LVDS connector Connector model: HIROSE DF13-20S Signal Signal LCDVCC LCDVCC TX0- TX0+ TX1- TX1+ TX2- TX2+ TXC- TXC+ Connect to LVDS motherboard... - Page 6 ADP-L2T User’s Manual Connector: JVLCDC – Voltage selection for CN_TFTC “TVCC” (Page 7) (CN_LVDSC “LCDVCC” must be 5V as the preliminary requirements) Type: 3-pin Power select Header Description VCC3 (3.3V) (5V) Default: 1-2...
- Page 7 ADP-L2T User’s Manual Connect to TTL Panel Connector: CN_TFTC Type: onboard 40-pin connector for LVDS connector Connector model: HIROSE DF13-40S Signal Signal TVCC TVCC PD2 (B0) PD3 (B1) PD4 (B2) PD5 (B3) PD6 (B4) PD7 (B5) PD10 (G0) PD11 (G1)
- Page 8 ADP-L2T User’s Manual To setup the LCD, you need the component below: A panel with LVDS interfaces. An inverter for panel’s backlight power. A LCD cable and an inverter cable. For the cables, please follow the pin assignment of the connector to make a cable, because every panel has its own pin assignment, so we do not provide a standard cable;...
-
Page 9: Contact Information
19F., No.94, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei City Address 22102, Taiwan (R.O.C.) +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw E-Mail i nfo@commell.com.tw (General Information) t ech@commell.com.tw (Technical Support) Commell is the trademark of Taiwan Commate Computer INC. Contact Information...
