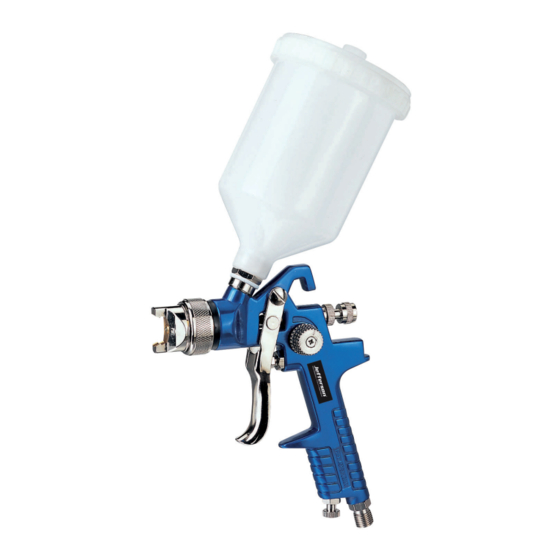

- Page 1 HVLP GRAVITY SPRAY GUN JEFA048 User Manual www.jeffersontools.com...
- Page 2 USER MANUAL HVLP Gravity Spray Gun JEFA048 1. Contents Parts Identification Box Contents Specification Operating Instructions Cleaning & Maintenance Troubleshooting 2. Parts Identification Description Air Nozzle W/Brass Cap Fluid Nozzle JEFA048 Air Diversion Ring Piston Pad Screw Seal for Air Piston...
- Page 3 USER MANUAL HVLP Gravity Spray Gun JEFA048 2. Box Contents • 1.4mm nozzle • 0.6 Litre plastic cup with integrated drip-catching device • Variable round/flat spray control • Air micrometer • Universal wrench • Hollow key 3. Specification Air Pressure...
- Page 4 USER MANUAL HVLP Gravity Spray Gun JEFA048 4. Operating Instructions 4.2 Regulating the Air Supply The air supply can be adjusted to accommodate a range of working pressures using the micrometer: 1. Setting the Micrometer in the vertical position (parallel to gun body) = maximum pressure.
- Page 5 USER MANUAL HVLP Gravity Spray Gun JEFA048 6. Troubleshooting Problem Cause Solution 1. Gun leaks from fluid tip Foreign substances between fluid tip Clean fluid needle and fluid and needle prevent sealing nozzle in thinner or replace with a full nozzle set 2.
- Page 6 Jefferson Tools, Herons Way, Chester Business Park, Chester, United Kingdom, CH4 9QR Tel. +44 (0)1244 646 048 Email: sales@jeffersontools.com www.jeffersontools.com...
