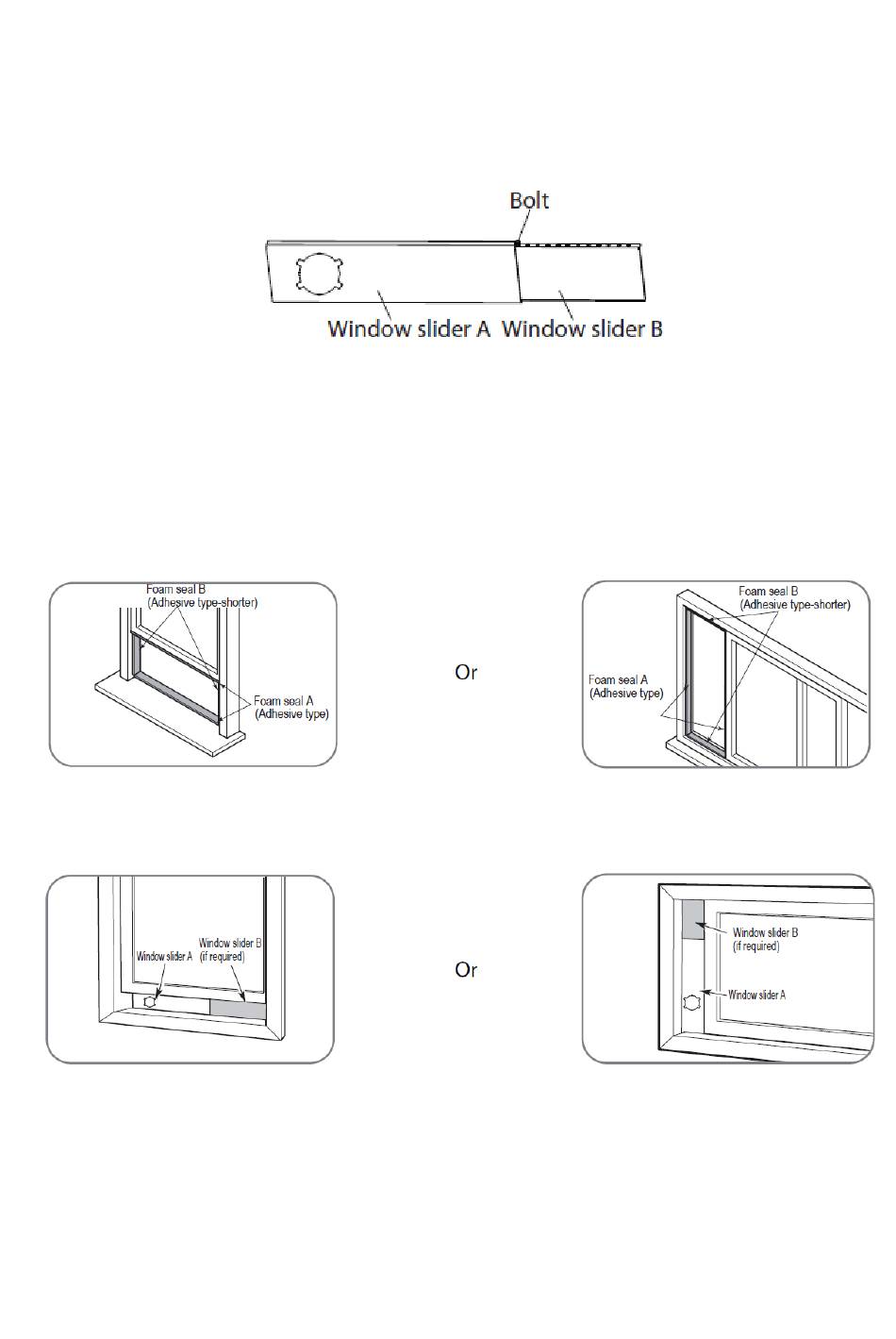

Step 1: Preparing the adjustable window slider
1. Depending on the size of your window, adjust the size of the window slider.
2. If the length of the window requires two or three window sliders, use the bolt(s) to fasten the window
sliders once they are adjusted to the proper length.
Step 2: Type 1: Hung Window or Sliding Window Installation
1. Cut the adhesive foam seal A and B strips to the proper lengths, and attach them to the window sash
and frame as shown.
2. Insert the window slider assembly into the window opening.
3. Cut the non-adhesive foam seal C strip to match the width (or height) of the window. Insert the seal
between the glass and the window frame to prevent air and insects from getting into the room.
